Keep these instructions for future

reference. If the equipment changes

ownership, be sure this manual

accompanies equipment. Please refer to

the SAFETY INSTRUCTIONS for important

safety information prior to using this oven.

Owner’s Manual

HIGH SPEED COMMERCIAL COMBINATION OVEN

PRESS

25-1/8”

(638)

22”

(559)

20-3/8”

(518)

27-1/2”

(699)

24 1/2”

(622)

63”

(1600)

37-5/8”

(956)

1-1/4”

(32)

6”

(152)

front view

side view

back view

Model Identication

Any questions or to locate an authorized ACP servicer,

call ACP ComServ Service Support.

– Inside the U.S.A. or Canada, call toll-free at 866-

426-2621.

– Outside the U.S.A. and Canada, call 319-368-8120.

– Email: commercialservice@acpsolutions.com

Warranty service must be performed by an authorized

ACP servicer. ACP also recommends contacting an

authorized ACP servicer, or ACP ComServ Service

Support if service is required after warranty expires.

When contacting ACP, provide product information.

Product information is located on oven serial plate.

Record the following information:

Model Number: _____________________________

Serial or S/N Number: ________________________

Date of installation: __________________________

Dealer’s name and address: ___________________

__________________________________________

To avoid risk of electrical shock or death, this oven must be grounded and plug must not be altered.

Grounding/Earthing Instructions

Oven MUST be grounded. Grounding reduces risk of electric shock by providing an escape wire for the electric

current if an electrical short occurs. This oven is equipped with a cord having a grounding wire with

a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualied electrician or servicer if grounding instructions are not completely understood, or

if doubt exists as to whether the oven is properly grounded.

Do not use an extension cord.

If the product power cord is too short, have a qualied electrician install a three-slot receptacle. This

oven should be plugged into a separate circuit with the electrical rating as provided in product specications. When

the combination oven is on a circuit with other equipment, an increase in cooking times may be required and fuses

can be blown.

External Equipotential Earthing Terminal (export only)

Equipment has secondary earthing terminal. Terminal provides external earthing connection used in addition to

earthing prong on plug. Located on outside of oven back, terminal is marked with symbol shown below.

WARNING

Before using your oven, please take the time to read the Safety Instructions which shipped with the oven.

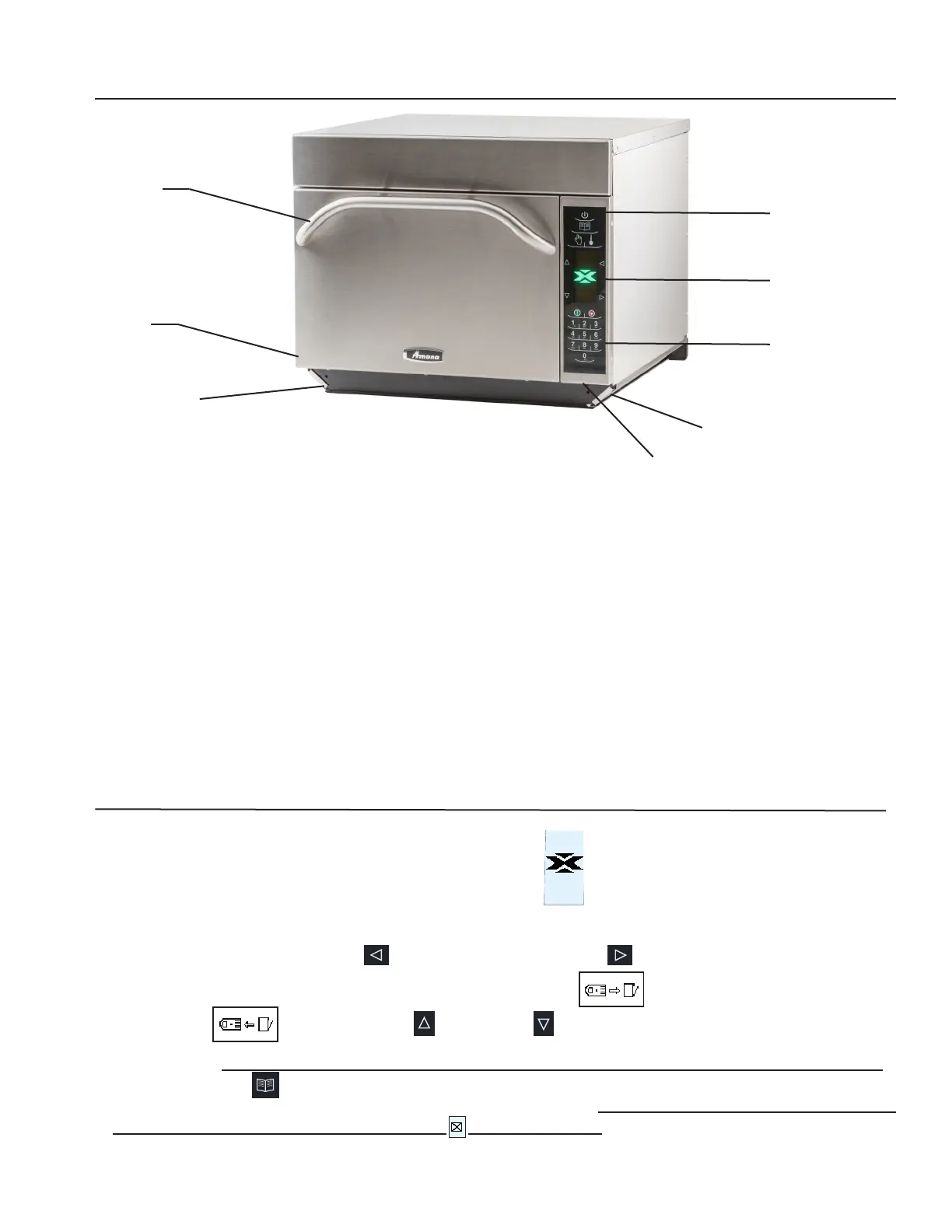

Features

1 Door Handle

Ergonomically designed for one handed operation.

2 Unit Serial Number

Located on the lower left hand side and back of the

oven.

3 Air Filters

The oven has two air lters. Each are located on

the lower sides of the oven. To remove, simply slide

out.

4 Display

Display provides user interface.

5 ON/OFF Pad

Use to turn on and shut oven off.

6 Keypad

Use for time input, programmed pads and data

input.

7 USB Port / Protective Cover

The oven is equipped with an USB Data Port. Use

with standard ash drives.

To program the oven using standard ash drive:

Oven must be in Off mode (Preheat must be OFF)

1. Remove protective cover from bottom of keypad.

2. Insert the ash drive into the slot located below the keypad.

3. From Off, press and hold the “2” pad to go to “User Options”.

4. Go to Option #17 by pressing “Back ” or repeatedly pressing “Enter ”

5. Select the desired operation by highlighting “Transfer card to oven ” or “Transfer oven

to ash drive ” with the Scroll Up or Scroll Down keypad.

*Important Note: After inserting ash drive in USB port wait at least 6 seconds before proceeding to Step 6.

6. Press the “Program ” pad to begin the transfer (The screen will indicate”TRANSFERRING” and indicate

“DONE” wait 15 seconds then transfer is complete.) *Important Note: If you do not wait 15 seconds when new

upload is attempted the screen will indicate “ NOT AXP CARD”.

7. Remove ash drive and close the protective cover.
