Sida 1/36

AdderLink LPV154T

Signage Video Extender



 







SECT 1

Contents

Welcome

Introduction .................................................................................2

Cascading units to support more displays .............................2

What’s in the box ........................................................................3

What you may additionally need ...............................................3

Installation

Locations ......................................................................................4

Mounting .....................................................................................5

Using the self adhesive feet ...................................................5

Using the rear mounting slot ................................................. 5

Using the optional rack mount chassis ..................................6

Connections .................................................................................7

Connections at the transmitter .............................................. 7

DDC information .....................................................................7

Connections at each receiver module .................................10

Cascade connections..................................................................11

Video sharpness adjustment .....................................................12

Resetting the transmitter unit ..................................................12

Operation

Indicators....................................................................................13

Status indicators ....................................................................13

Link indicators ....................................................................... 13

Further information

Troubleshooting ........................................................................14

Getting assistance ......................................................................14

Safety information ....................................................................15

Warranty ....................................................................................15

Emissions and Immunity ............................................................16

 







VIDEO IN

LOCAL VIDEO OUT

CATx LINKS UP TO 150m (492 feet)

LPV154

POWER

LPV150R

SECT 2

Welcome

Introduction

The AdderLink LPV154T allows you to distribute high quality analogue video to

four video displays, each of which can be up to 150 metres (492 feet) away. All

links are made using simple twisted pair cables (Category 5 or higher) with a

compact LPV150R module at each remote end. Each remote module converts

the long distance transmission signals back into high quality analogue video

signals for each display. LPV stands for Line Powered Video, which means that

all power for the remote modules is fed along the CATx cabling. What this

means for you is quick and straightforward installation using compact modules

at each remote location.

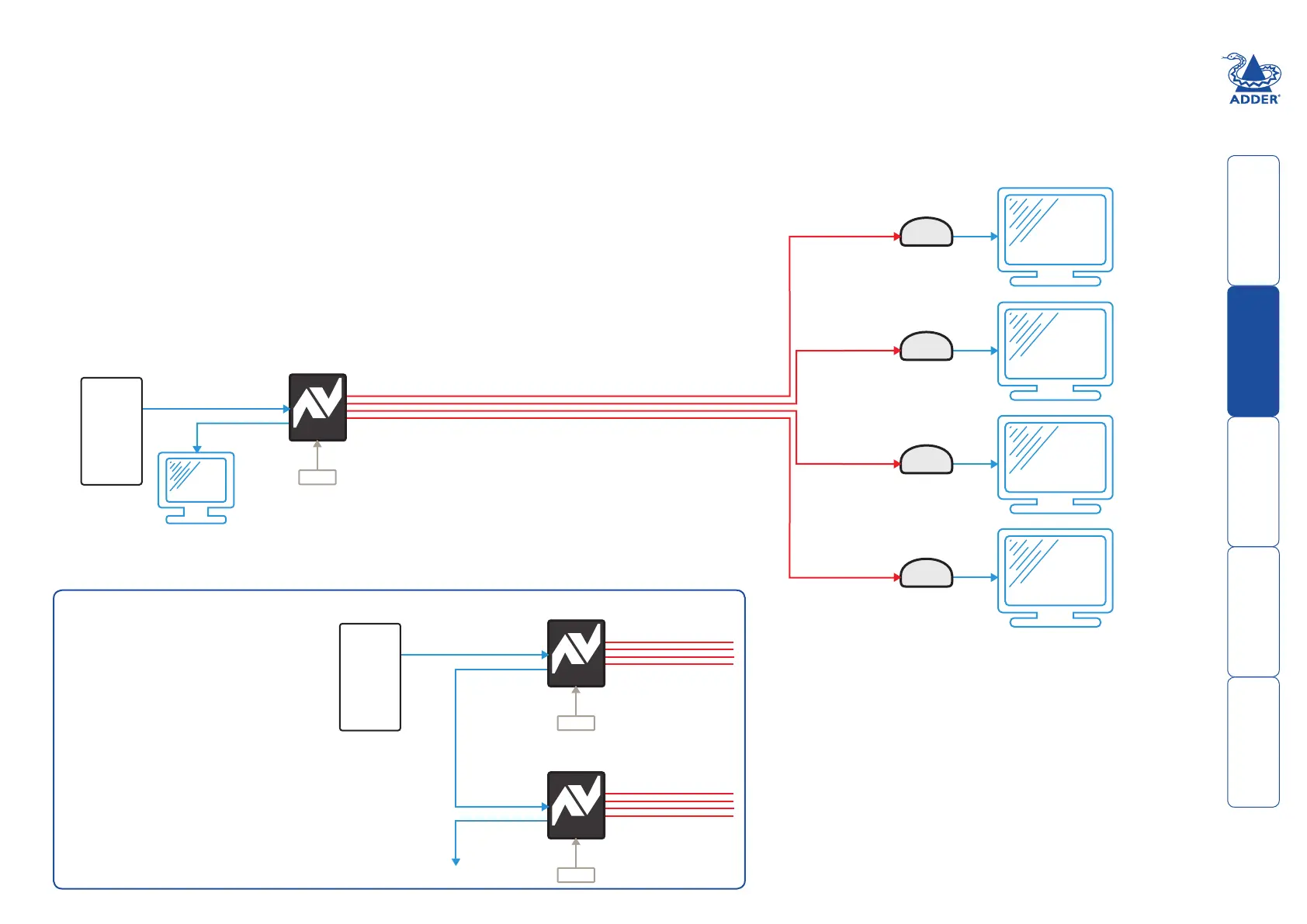

AdderLink LPV154T transmitter and (up to) four LPV150R receivers

driving remote displays in addition to a local monitor

VIDEO IN

LOCAL VIDEO OUT

CATx LINKS UP TO 150m (492 feet)

LPV154

POWER

Cascading units to support more displays

If you need to drive more than four

video displays you can connect up

to three AdderLink LPV154T units in

cascade.

To do this, the local video out port of

the ﬁrst AdderLink LPV154T unit is fed

to the video in port of the next one.

Produktspecifikationer

Varumärke:	Adder
Kategori:	AV extender
Modell:	LPV154T
LED-indikatorer:	Ja
Videolägen som stöds:	1080p
Maximal upplösning:	1920 x 1080 pixlar
Certifiering:	CE, FCC
Modell:	Sändare för AV-utrustning
RJ-45 utgångsportar:	4
Driftspänning:	5 V
Sändarens mått (BxDxH):	100 x 100 x 25 mm
Seriellt gränssnitt:	RS-232
Produktens färg:	Svart
Temperatur vid drift:	0 - 40 ° C
Seriella portar:	1
Likströmsingång:	Ja
Ingående ström:	2.5 A
Maximal överföringshastighet avstånd:	150 m
Kvalitet på VGA (D-Sub) porten:	2
