Adj COB Cannon LP200ST Bruksanvisning

Adj Effektmaskin COB Cannon LP200ST

Läs gratis den bruksanvisning för Adj COB Cannon LP200ST (34 sidor) i kategorin Effektmaskin. Guiden har ansetts hjälpsam av 9 personer och har ett genomsnittsbetyg på 4.1 stjärnor baserat på 5 recensioner. Har du en fråga om Adj COB Cannon LP200ST eller vill du ställa frågor till andra användare av produkten? Ställ en fråga

Ladda ner PDF

Sida 1/34

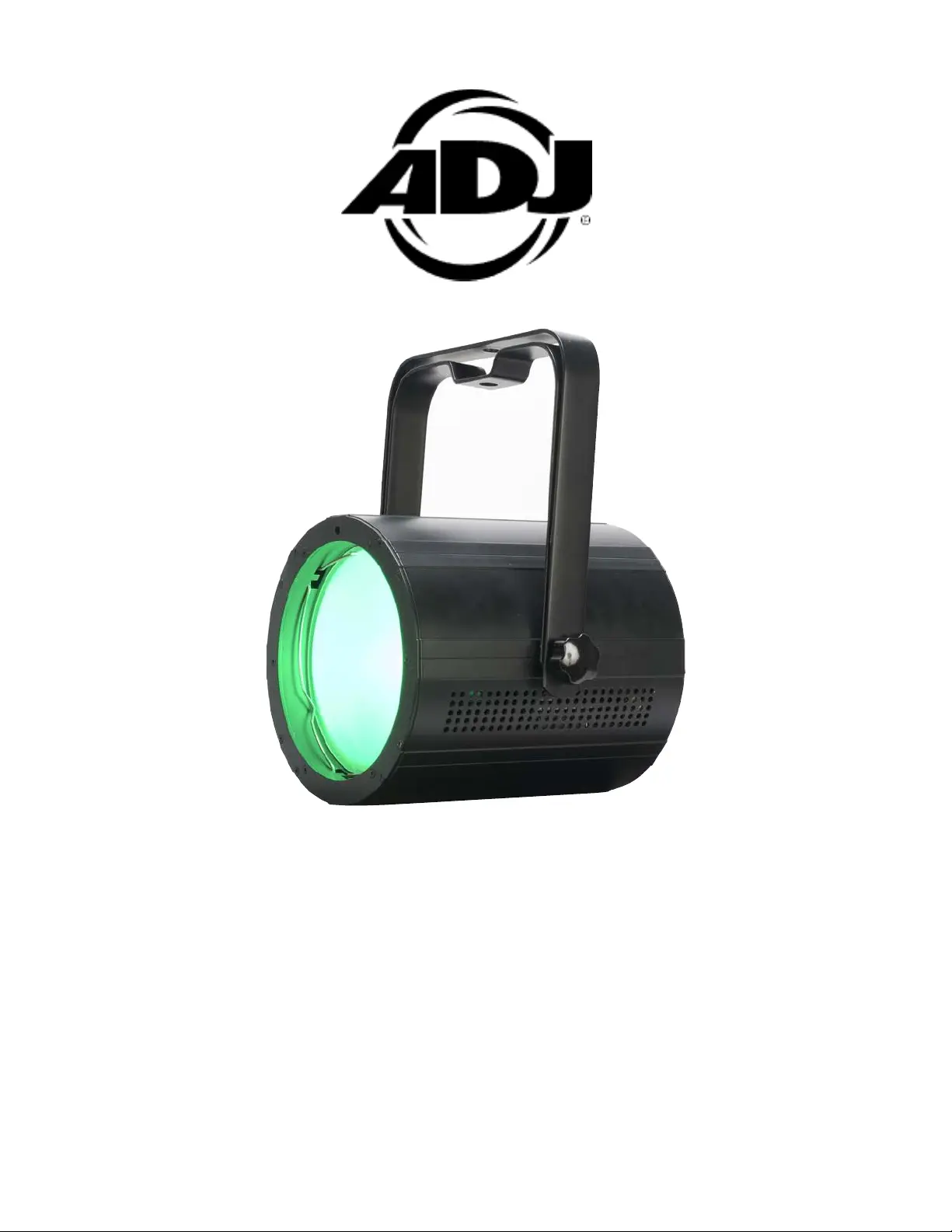

User Manual

COB CANNON

LP200ST

instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying prod-

uct names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed

includes all forms and matters of copyrightable materials and information now allowed by statutory or

judicial law or hereinafter granted. Product names used in this document may be trademarks or regis-

tered trademarks of their respective companies and are hereby acknowledged. All non-ADJ Products,

LLC brands and product names are trademarks or registered trademarks of their respective compa-

nies.

ADJ Products, LLC and all afliated companies hereby disclaim any and all liabilities for property,

equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic

loss associated with the use or reliance of any information contained within this document, and/or as

a result of the improper, unsafe, insufcient and negligent assembly, installation, rigging, and opera-

tion of this product.

Europe Energy Saving Notice

Energy Saving Matters (EuP 2009/125/EC)

Saving electric energy is a key to help protecting the enviroment. Please turn off all electrical products when

they are not in use. To avoid power consumption in idle mode, disconnect all electrical equipment from power

when not in use. Thank you!

Date

Document

Version

Software

Version

DMX Channels Notes

03/31/2022 1.0 1.0

5 / 8A / 8B / 9 / 10A /

10B / 12 / 13 / 16 / 20

channels

Initial Release.

08/24/2022 1.1 N/C No Change Updated Specifications.

12/01/2022 1.2 N/C No Change Updated RDM, Dim Modes.

02/09/2023 1.3 N/C No Change

Updated Overview, Installation,

Dimensionals Drawings, Daisy Chain

Power Linking, Specifications

09/28/2023 1.4 1.01 No Change

Unit is now UC IR24 Compatible

01/05/2024 1.5 N/C No Change

Updated Overview; added FCC

Statement

DOCUMENT VERSION

Due to additional product features and/or enhancements, an updated version of

this document may be available online.

Please check www.adj.com for the latest revision/update of this manual

before beginning installation and/or programming.

TABLE OF CONTENTS

Introduction 4

Limited Warranty (USA Only) 5

Warranty Registration | Features 6

Safety Guidelines 7

Overview 8

Installation 9

Accessory Installation 13

Remote Device Management (RDM) 14

Control Panel 15

System Menu 16

DMX Setup 19

DMX Traits 21

Color Temperature Presets 24

Color Macros Chart 25

Dim Modes / Dim Curves 27

Remote Control Guidelines 29

Remote IR Default Values / Editing IR Buttons 30

Daisy Chain Power Linking | Cleaning and Maintenance 31

Dimensional Drawings 32

Specifications 33

FCC Statement 34

Produktspecifikationer

Varumärke:	Adj
Kategori:	Effektmaskin
Modell:	COB Cannon LP200ST
Produkttyp:	Discostrålkastare
Inbyggd display:	Ja
Vikt:	4100 g
Bredd:	245 mm
Djup:	415 mm
Höjd:	192 mm
Belysningsstyrka:	1970 lx
Antal lampor:	1 lamp(or)
Justerbar hastighet:	Ja
Pulsfunktion:	Ja
Lampans livslängd:	50000 h
Lämplig för inomhusbruk:	Ja
Spänning:	100 - 240 V
XLR ut:	1
Ljusstyrningsprotokoll:	DMX
DMX-ingång:	Ja
DMX-utgång:	Ja
Antal stift:	3
Antal DMX-kanaler:	7 kanaler
Produktens färg:	Vit
Skärmtyp:	LED
Kontrolltyp:	Knappar
Monteringsbar på väggen:	Ja
ljus färg:	Amber, Blue, Green, Red
Ingångsfrekvens:	50/60 hz
Lamptyp:	LED
XLR-ingång:	Ja
Strömkälla:	AC
Lampor:	150 W
Spridningsvinkel:	80 °
Kuldiameter:	- "
Fjärrkontrollsfunktion:	Ja
Minsta antalet DMX-kanaler:	3 kanaler
