Sida 1/7

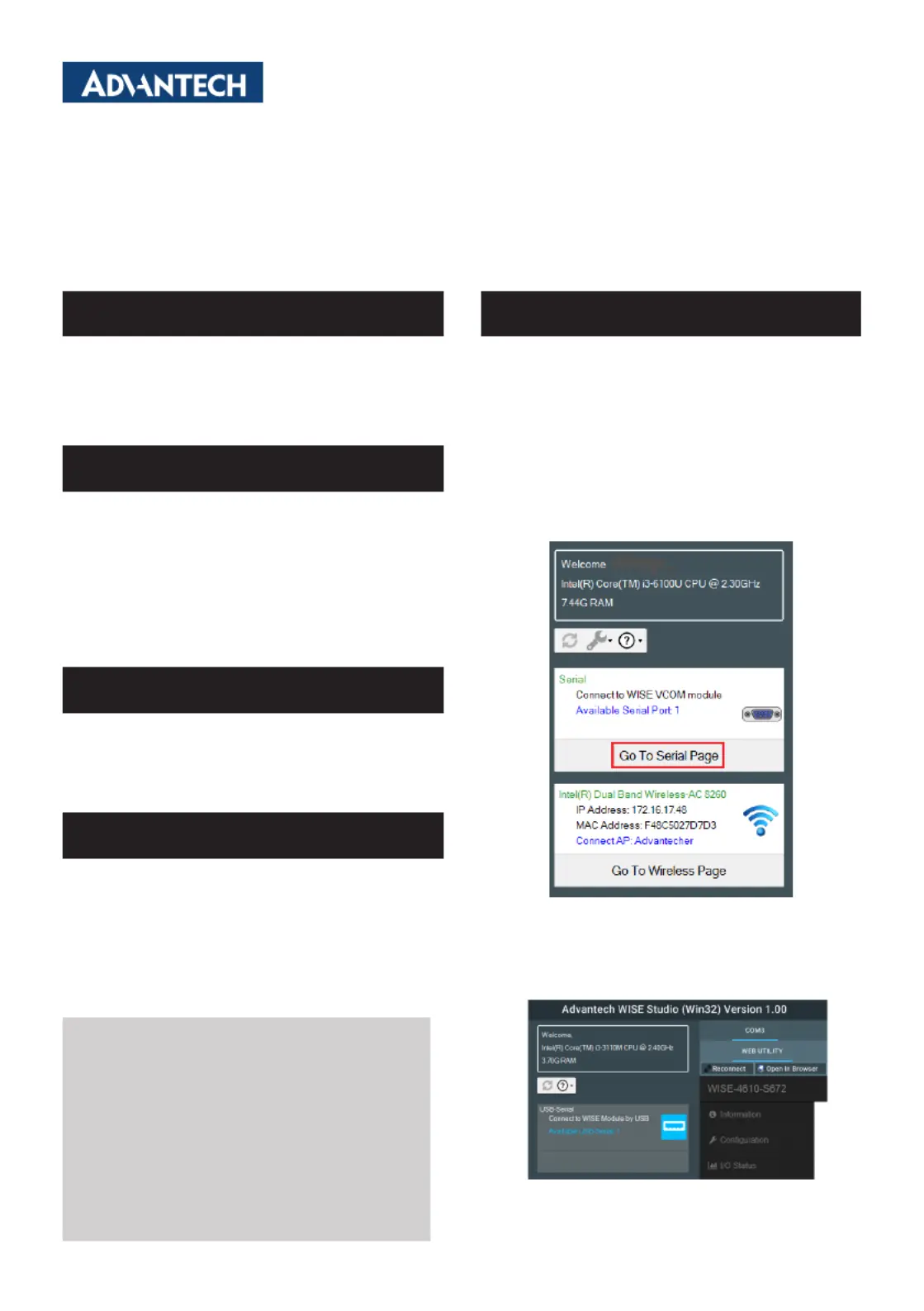

WISE-4610 Startup Manual 1

Thank you for purchasing the WISE-4610 module. This

quick start guide is intended to help you with deploying the

module. It includes information on the power requirements

and application wiring. Should you require more instruc-

tions, please refer to the user manual.

The WISE-4610 has two pairs of external power inputs:

1. +Vs and -Vs (for line power or battery recharge)

2. Solar panel+ and solar panel- (for battery recharge)

Both power inputs support a standard industrial unregulated

24 V

power supply. This series of modules also accept

+10 to +50 V

power input and 200-mV peak-to-peak

power ripple. The immediate ripple voltage should be

between +10 and +50 V

For modules with a lithium-ion battery, please note that the

operating temperature is 0~60°C (32~140°F). For safety

reasons, when the temperature is in the range of 45~60°C

(113~140°F), the battery can only be recharged to 20%.

• 1 x WISE-4610 wireless I/O module

• 1 x Waterproof antenna

• 1 x Mounting bracket

Note:

I/O board should be purchased respectively.

WISE-4610

Advanced Industrial LoRa/LoRaWAN IoT Wireless I/O

Module

Startup Manual

1. Download and install the USB driver from https://www.

silabs.com/products/development-tools/software/usb-to-

uart-bridge-vcp-drivers

2. Download and install WISE Studio from http://support.

advantech.com/

3. To power the module, connect a DC power source to

the +Vs and -Vs pins.

4. Connect the module to your computer via the micro-

USB port

5. Open WISE Utility and click Go To Serial Page.

6. Press to link the WISE-4610 and you will then Connect

seethewebcongurationpage.

7. UsewebcongurationinWISEUtilityorpressOpen in

Browsertoopenthewebcongurationinanybrowser

(Google Chrome is recommended).

8. Click to check whether your module has Information

successfully connected to a LoRa network. Once con-

nected,yourI/Omoduleisreadytobecongured.

Overview

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

For technical support and service:

http://support.advantech.com/

This startup manual is for WISE-4610 Series.

Part No. 2003461002

Printed in Taiwan

Edition 3

October 2020

Input Power Requirements

Packaging List

Battery Power

Quick Start for WISE-4610 Series

2 WISE-4610 Startup Manual

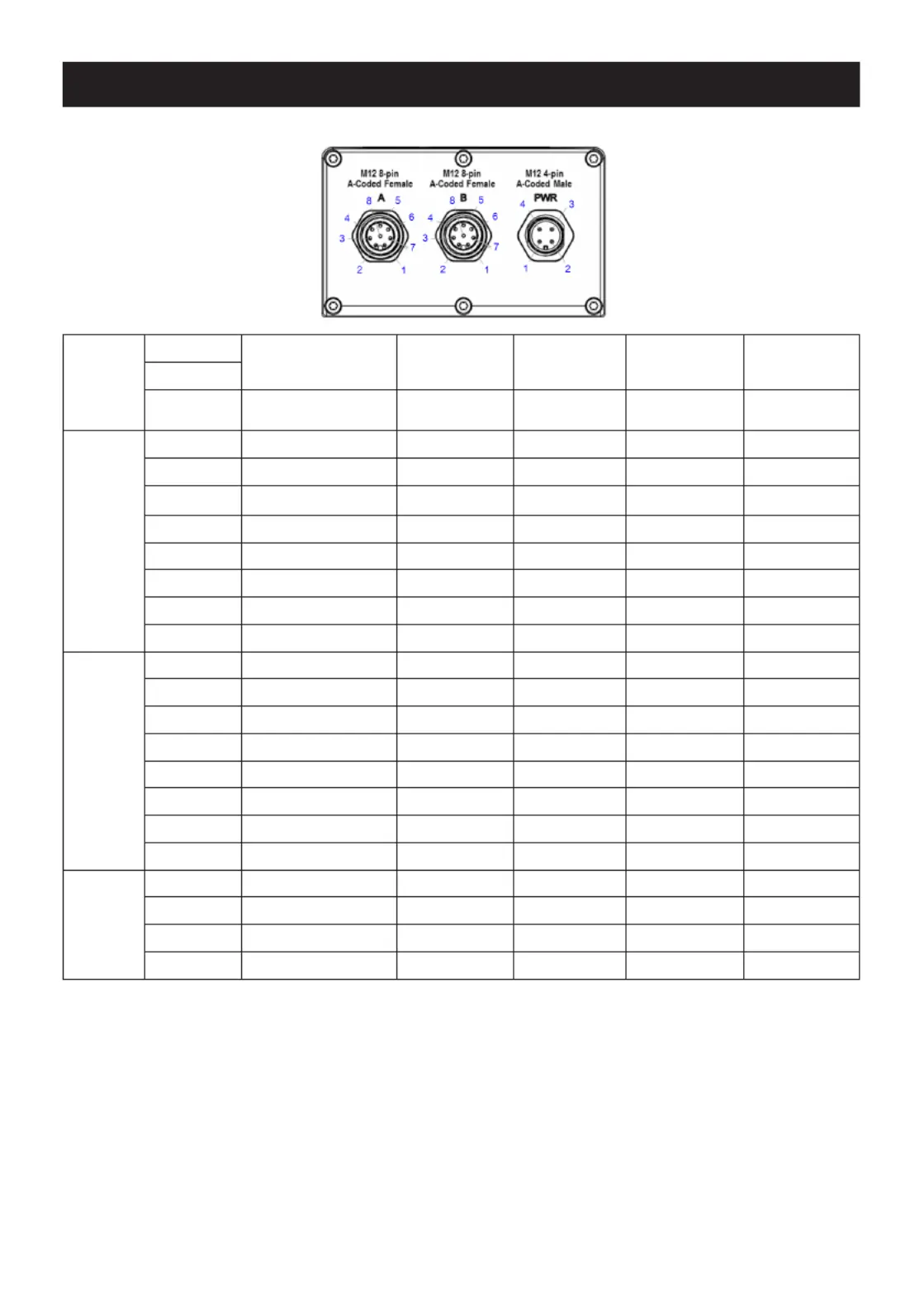

Pin Assignment of WISE-S600 I/O Module with M12 Connectors

M12

Connector

Model Name

M12 Cable WISE-S672 WISE-S614 WISE-S615 WISE-S617

Pin Number

PCB P/N

4-pin : 1700028162-01

8-pin : 1700028163-01

19A3DC7200-01 19A3DC1500-01 19A3DC1702-0119A3DB1402-01

1 White DI 0 DI 0 RTD0+ AI 0+

2 Brown DI 1 DI 1 RTD0- AI 0-

3 Green DI 2 DI 2 RTD0 COM +12V Out0

4 Yellow DI 3 DI 3 NC +12V Out GND

5 Gray DI 4 NC RTD1+ AI 1+

6 Pink DI 5 NC RTD1- AI 1-

7 Blue NC NC RTD1 COM +12V Out1

8 Red DI COM DI COM NC +12V Out GND

1 White DATA0- AI 0+ RTD2+ DI 0

2 Brown DATA0+ AI 0- RTD2- DI 1

3 Green AI 1+ RTD2 COM DI COMRS-232 TX

4 Yellow RS-232 RX AI 1- NC DO 0

5 Gray DATA1- AI 2+ RTD3+ DO GND

6 Pink DATA1+ AI 2- RTD3- RS-485 D+

7 Blue NC AI 3+ RTD3 COM RS-485 D-

8 Red RS-232 GND AI 3- NC RS-485 GND

PWR

1 Brown +VS +VS +VS +VS

2 White -VS -VS -VS -VS

3 Blue SP+ SP+ SP+ SP+

4 Black NC SP- SP- SP-

Application Wiring

WISE-4610 Startup Manual 3

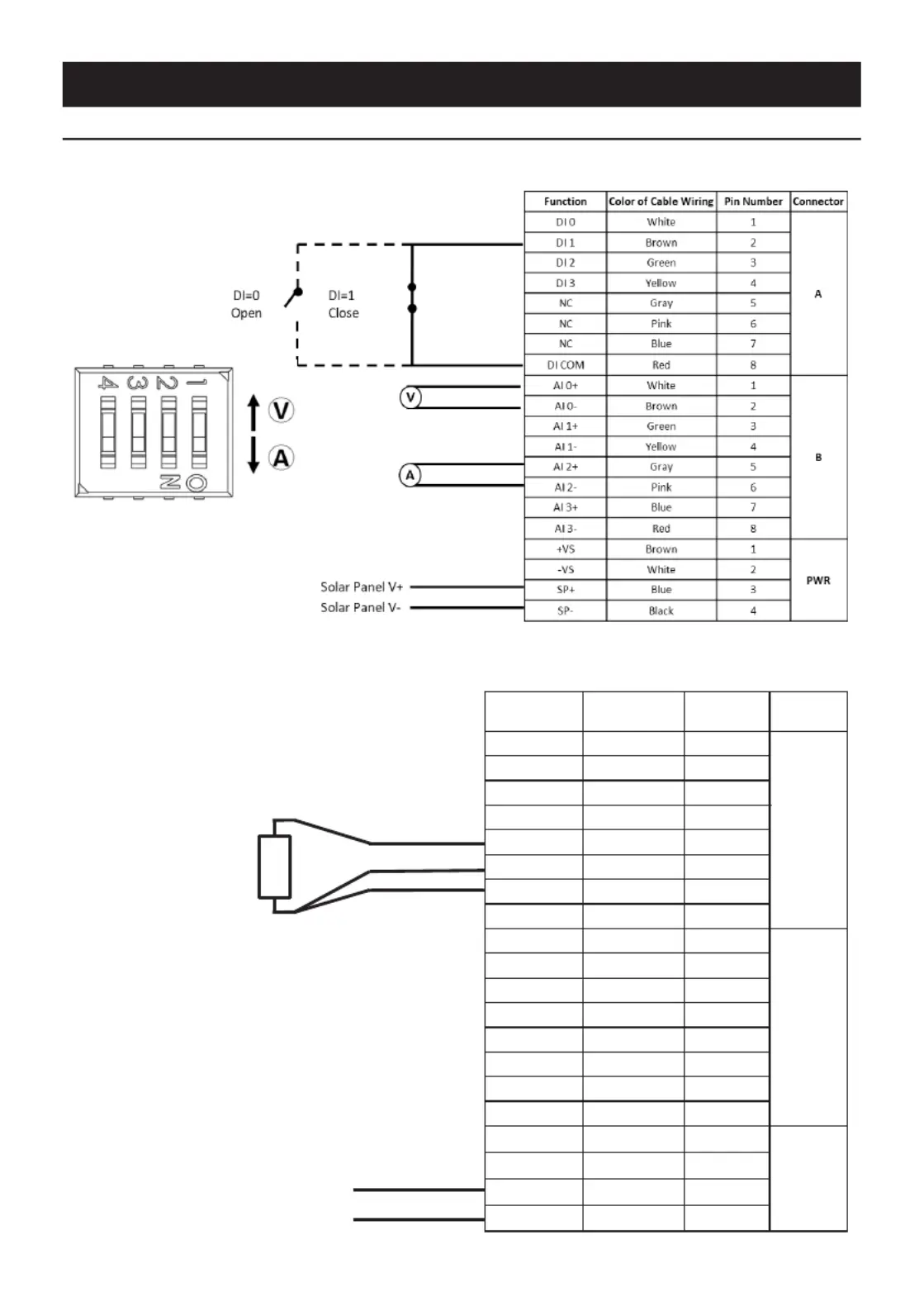

Application Wiring of WISE-S600 Series I/O Module with M12 Connectors

WISE-S614 (4AI/4DI)

WISE-S615 I/O Application Wiring

Solar Panel V-

Solar Panel V+

RTD

PT100 (385) : -200~+600 C°

PT100 (392) : -200~+600 C°

PT1000 : -40 ~+160 C °

Pin Name

Color of Cable

Wiring

Pin mber ConnectorNu

RTD + White 1 0

RTD 0- Brown 2

COM 0 Green 3

NC Yellow 4

RTD 1+ Gray 5

RTD 1- Pink 6

COM 1 Blue 7

NC Red 8

RTD 2+ White 1

RTD 2- Brown 2

COM 2 Green 3

NC Yellow 4

RTD 3+ Gray 5

RTD 3- Pink 6

COM 3 Blue 7

NC Red 8

+Vs Brown 1

PWR

-Vs White 2

Solar Panel V+ Blue 3

Solar Panel V- Black 4

Application Wiring (Cont.)
