DX164-W User Guide
AP11446 Issue 5
DX164-W
Getting Started Guide
The DX -W is a fixed installation I/O Expander for Allen & Heath 96kHz digital 164
mixing systems. It provides 16 remote controlled mic/line preamps and 4 XLR
line outputs. It connects to the mixer over a single Cat5 cable.
A second DX164-W, DX012 or DX168 can be connected when running in
Cascade mode. Alternatively, a redundant connection can be made to
compatible hardware.
The DX164-W can be operated freestanding, mounted in a floor pocket, mounted
on a wall, or flush mounted in a wall. Different power options are provided to suit
the application.
Update the mixing system to the latest available version of firmware
before connecting the DX Expander. The unit might operate
incorrectly when running earlier firmware.

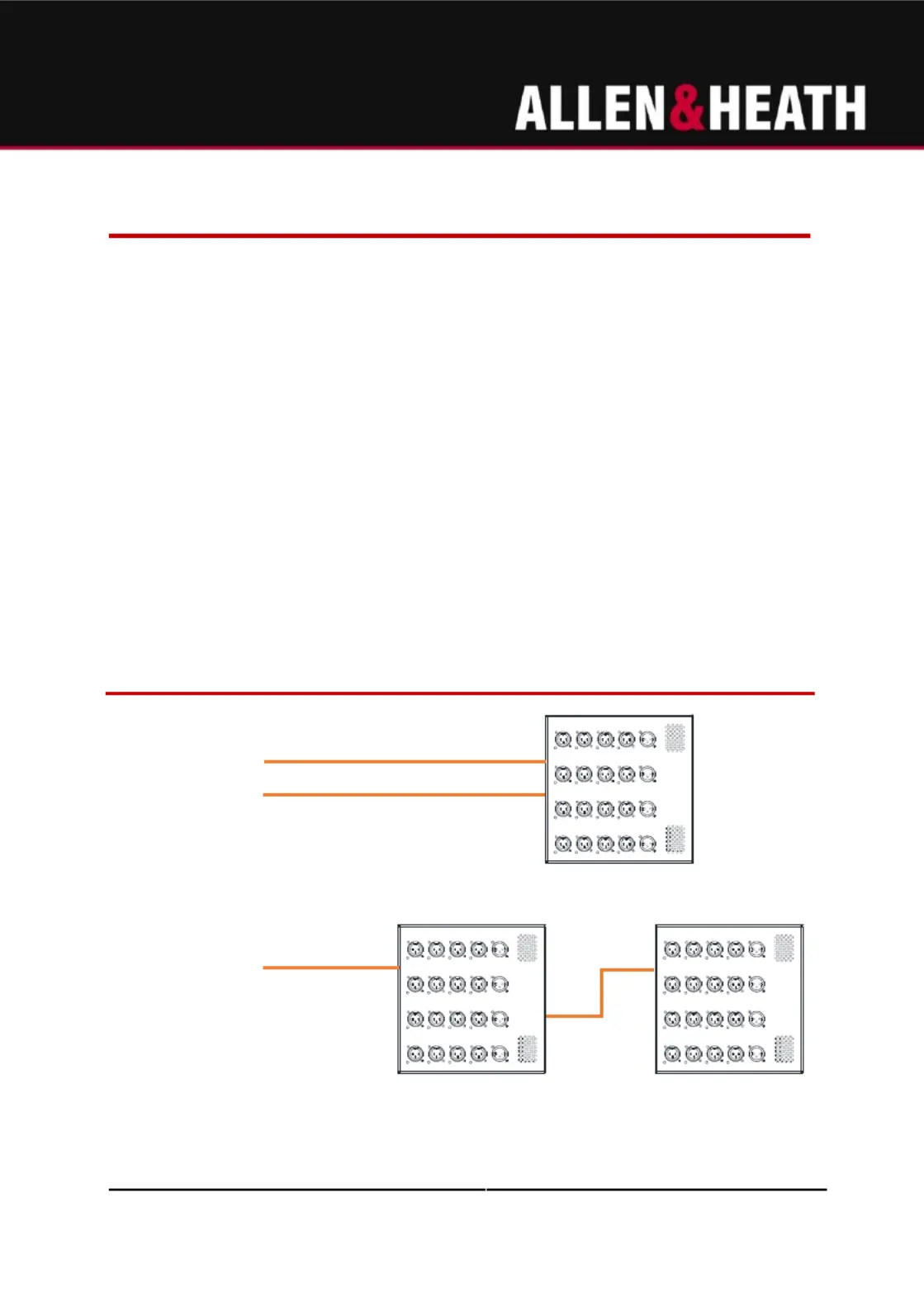

Connection
Redundant mode to compatible hardware only –
Cascade mode – add second DX164-W, DX012 or DX168
dLive S Class
Surface / MixRack,
DX Hub (x2), or DX
Link card
DX A
DX B
dLive Surface /
MixRack, DX Hub,
DX Link card,
SLink
DX A
DX A
DX B
DX164-W User Guide
AP11446 Issue 5

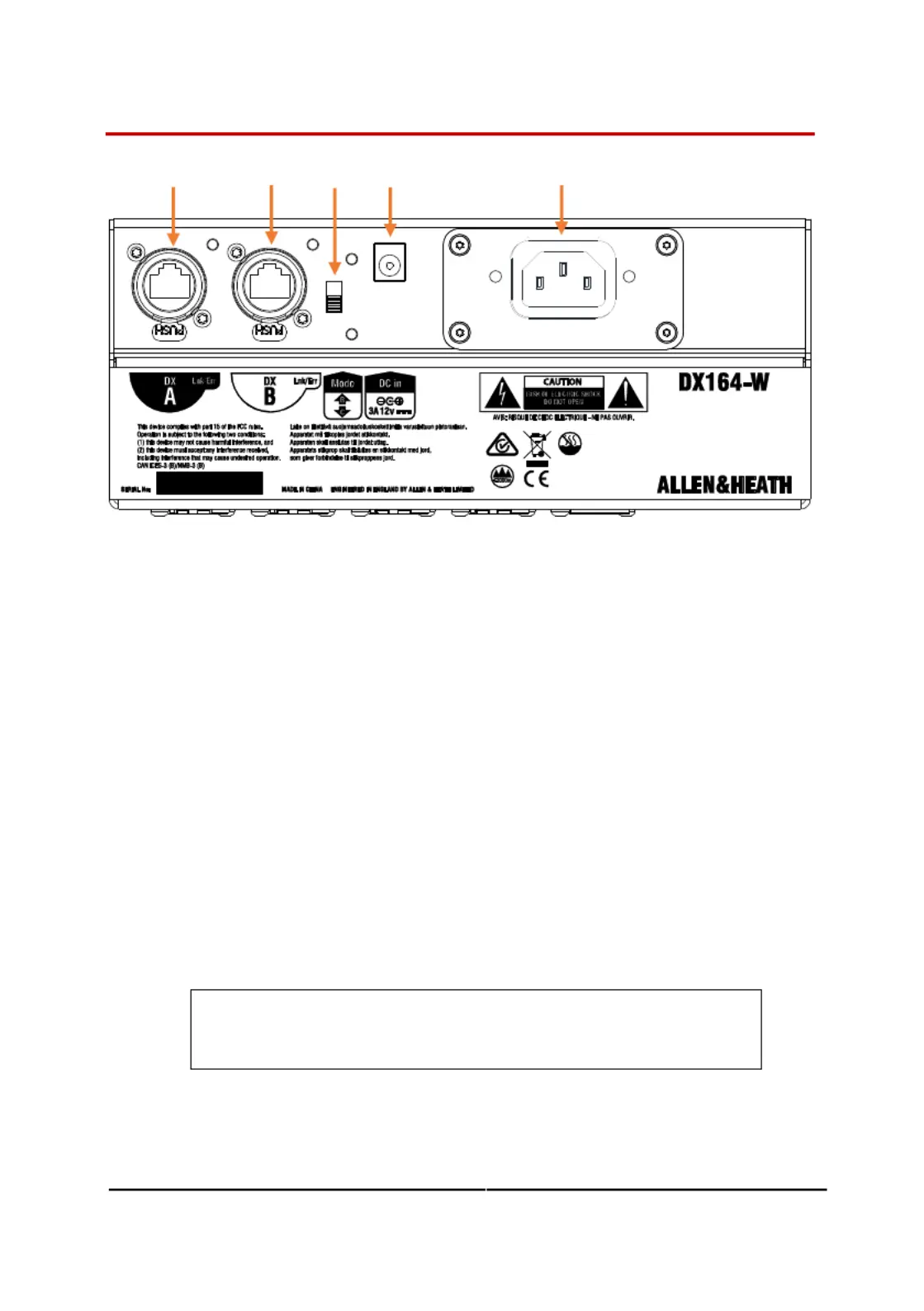

Top panel and power options
DX A EtherCon port for connection to the mixing system. The cable
carries the audio signals as well as preamp control and system status data.
DX B EtherCon port for daisy chaining of a second unit or cable
redundancy.
DX B mode switch RedundantSwitch to for 2 cable connection to
compatible hardware e.g. dLive S Class or DX Link card. Switch to for Cascade
connection to a second DX164-W, DX012 or DX168 unit.
DC 12V Input Can be used instead of AC mains to power the unit
where adequate DC distribution is provided in a building. Can also be used as
a backup power supply in case of mains failure.
Mains power input The built-in universal PSU accepts voltages from
100 to 240V AC 50/60Hz. A module with IEC inlet is fitted by default. An
optional module is provided for permanent installation, with knockout holes to
accept a cable gland.
⚠
⚠
⚠
⚠⚠ Replacement of the IEC AC inlet module and mains
wiring for permanent installation must be performed by a
qualified electrician. See instructions later in this guide.
DX164-W User Guide
AP11446 Issue 5

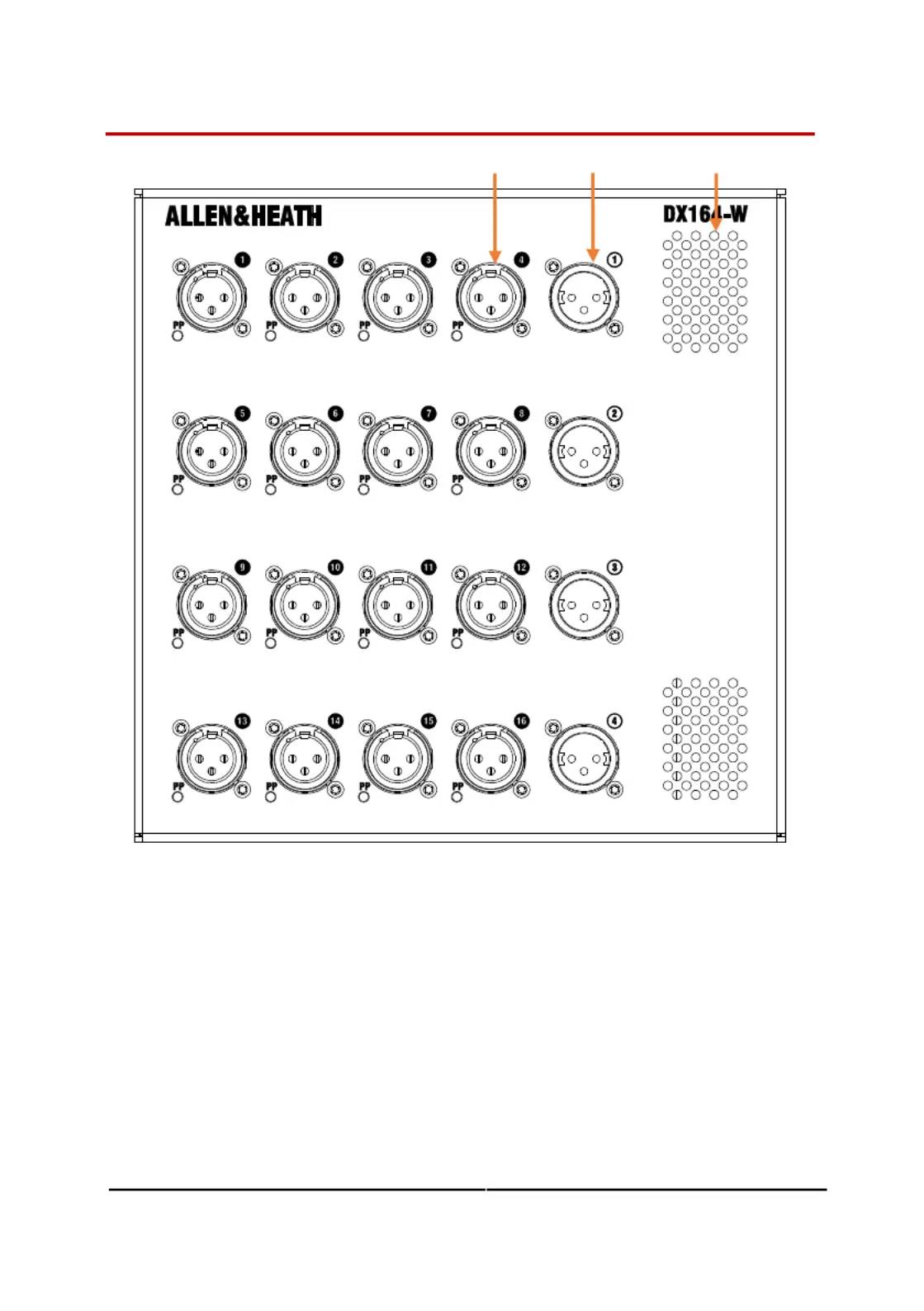

Front panel
Input sockets Balanced XLR mic/line inputs with +48V Phantom Power
indicator. The preamps are built into the DX164-W and their Gain, Pad and
+48V are controlled from the mixing system .
The +48V indicator detects voltage at the socket whether supplied by the
DX164-W or received from an external source.
Output sockets Balanced XLR outputs operating at nominal +4dBu
level.
Vents Ensure good ventilation at the front of the unit. Avoid obstruction of
vents while operating. Avoid dirt or liquid ingress.
