DX168 Getting Started Guide
AP11129 Issue 4
DX168
Getting Started Guide
The DX 8 is a portable, rugged I/O Expander for Allen & Heath 96kHz digital 16
mixing systems. It provides 16 remote controlled mic/line preamps and 8 XLR
line outputs. It connects to the mixer over a single Cat5e cable.
A second DX168, DX012 or DX164-W can be connected when running in
Cascade mode. Alternatively, a redundant connection can be made to
compatible hardware.
The DX168 can be operated horizontally with the connectors facing upward or
sideward, or vertically to save space on stage. It can also be mounted in a 19”
rack or fligthcase using the optional kit. A hard-wearing padded AB1608-RK19
polyester carry case is also available, part number . AP9932
Update the mixing system to the latest available version of firmware
before connecting the DX Expander. The unit might operate
incorrectly when running earlier firmware.

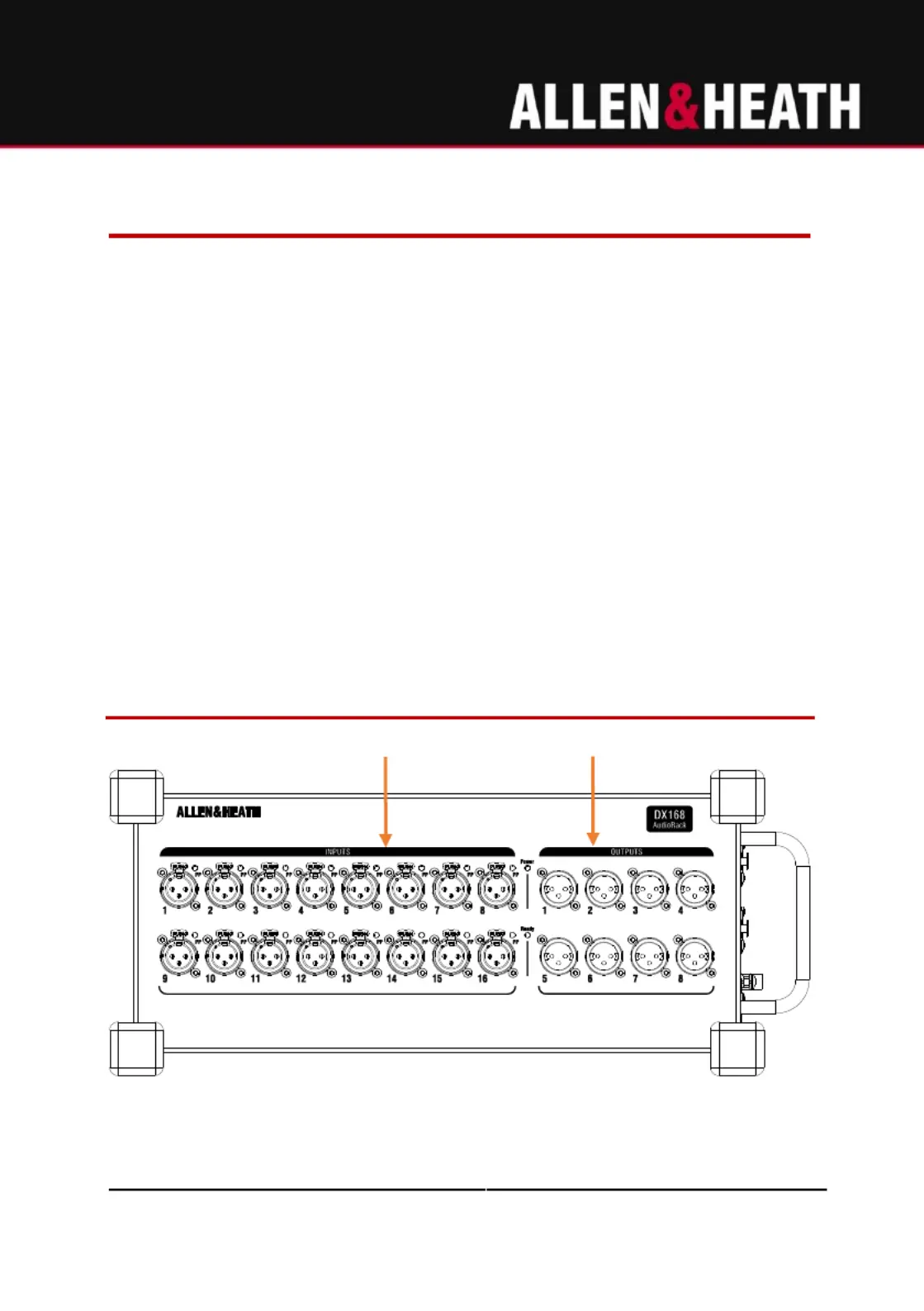

Front panel
Input sockets Balanced XLR mic/line inputs with +48V Phantom Power
indicator. The preamps are built into the DX168 and their Gain, Pad and +48V
are controlled from the mixing system.
DX168 Getting Started Guide
AP11129 Issue 4
The +48V indicator detects voltage at the socket whether supplied by the
DX168 or received from an external source.
Output sockets Balanced XLR outputs operating at nominal +4dBu
level.

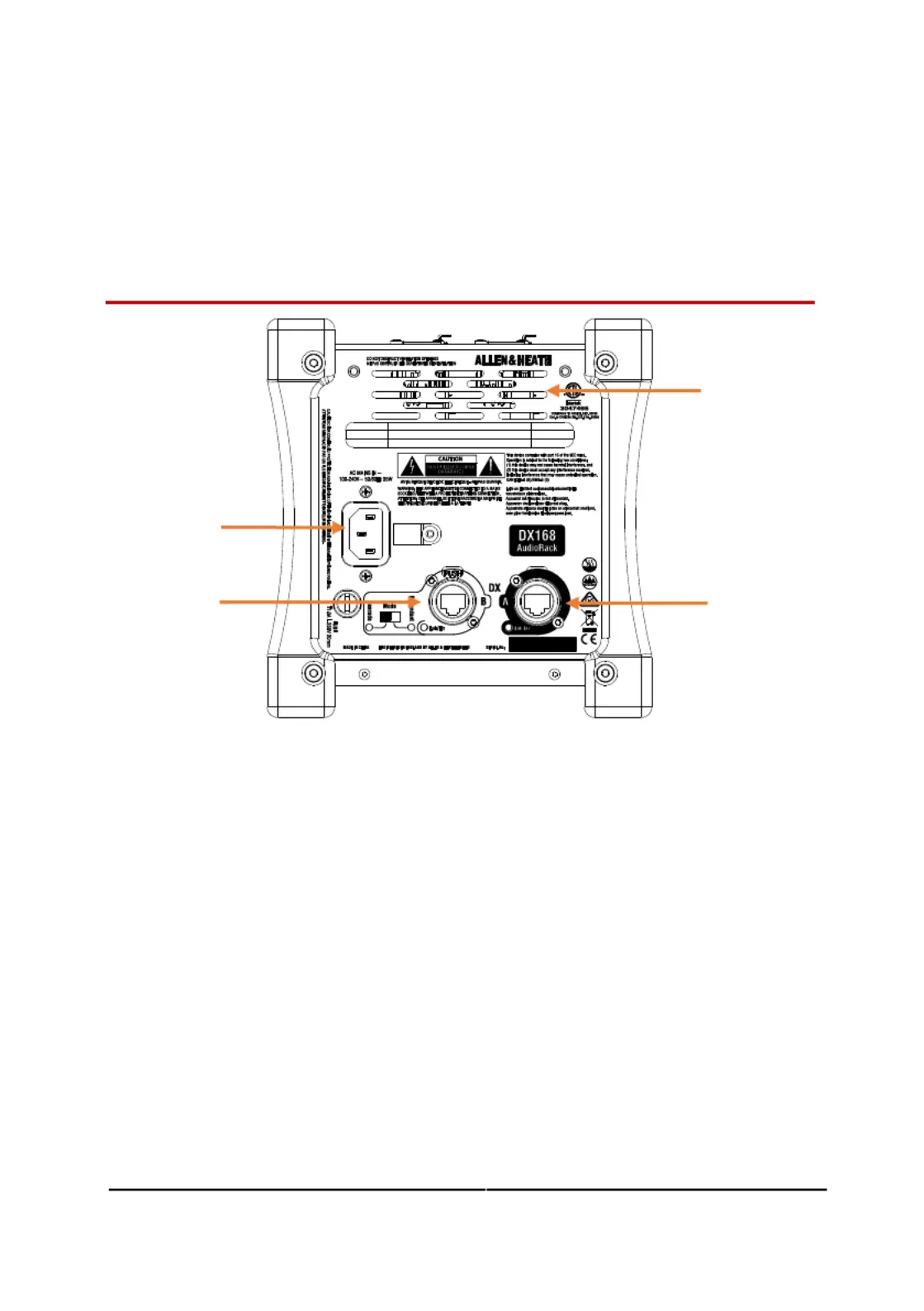

Side panel
DX A EtherCon port for connection to the mixing system. The cable
carries the audio signals as well as preamp control and system status data.
DX B EtherCon port for daisy chaining of a second unit or cable
redundancy. Switch to for 2 cable connection to compatible Redundant
hardware e.g. dLive S Class or DX Link card. Switch to for connection Cascade
to a second DX168, DX012 or DX164-W unit.
Mains power input IEC connector and fuse for the built-in universal
voltage PSU. This accepts voltages from 100 to 240V AC 50/60Hz. Secure the
cable to the plastic P-clip using a T20 screwdriver.
Vents Ensure good ventilation at the sides and back of the unit. Avoid
obstruction of vents while operating. Avoid dirt or liquid ingress.
DX168 Getting Started Guide
AP11129 Issue 4
Cables
Cat5e or higher STP cable is required for DX connections with a maximum
cable length of 100m per connection.
Allen & Heath can provide a number of Cat5e and Cat6 cables suitable for use
with the DX Expander:
AH9997 2m CAT5e cable with Neutrik EtherCon locking connectors
AH10887 100m drum of CAT6 cable with Neutrik EtherCon locking connectors
AH10886 80m drum of CAT6 cable with Neutrik EtherCon locking connectors
AH10885 50m drum of CAT6 cable with Neutrik EtherCon locking connectors
AH10884 20m drum of CAT6 cable with Neutrik EtherCon locking connectors
Contact your local A&H dealer for more information.

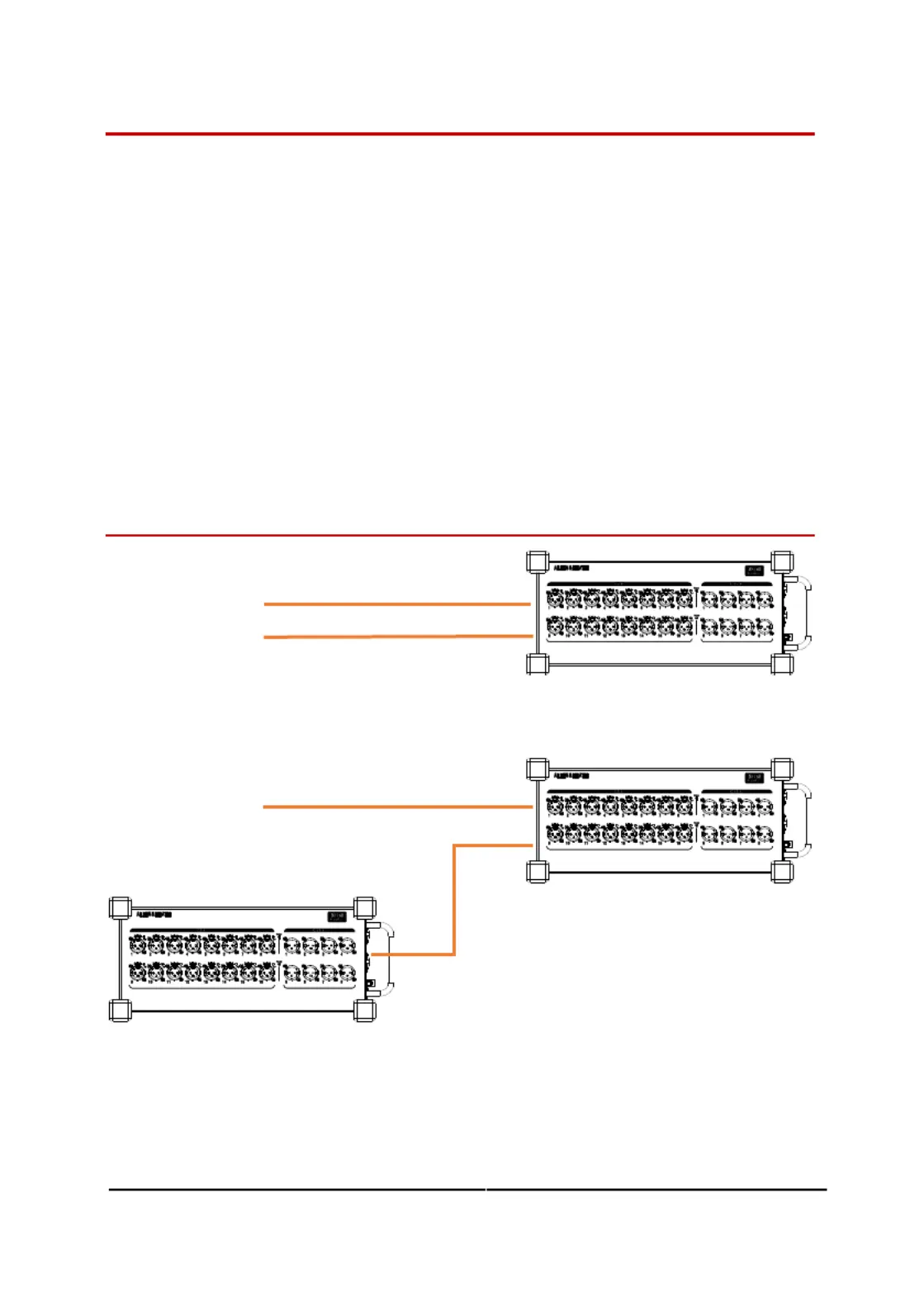

Connection
Redundant mode to compatible hardware only –
Cascade mode – add second DX168, DX012 or DX164-W
Update the mixing system to the latest available version of firmware before connecting
the DX Expander. The unit might operate incorrectly when running earlier firmware.
dLive S Class
Surface / MixRack,
DX Hub (x2), or DX
Link card
DX A
DX B
dLive Surface /
MixRack, DX Hub,
DX Link card,
SLink
DX A
DX A
DX B
