Sida 1/2
FIAT, CITROEN, PEUGEOT
All installaon work must be performed by a qualied professional installer only.
The manufacturer / dealer is not liable for any kind of incidental or indirect damages.
12/2019 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.
SWC resisve interface-wiring harness-radio adapter
INSTALLATION MANUAL
Model:
Kit content:
12/2019ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.
All installaon work must be performed by a qualied professional installer only.
The manufacturer / dealer is not liable for any kind of incidental or indirect damages.

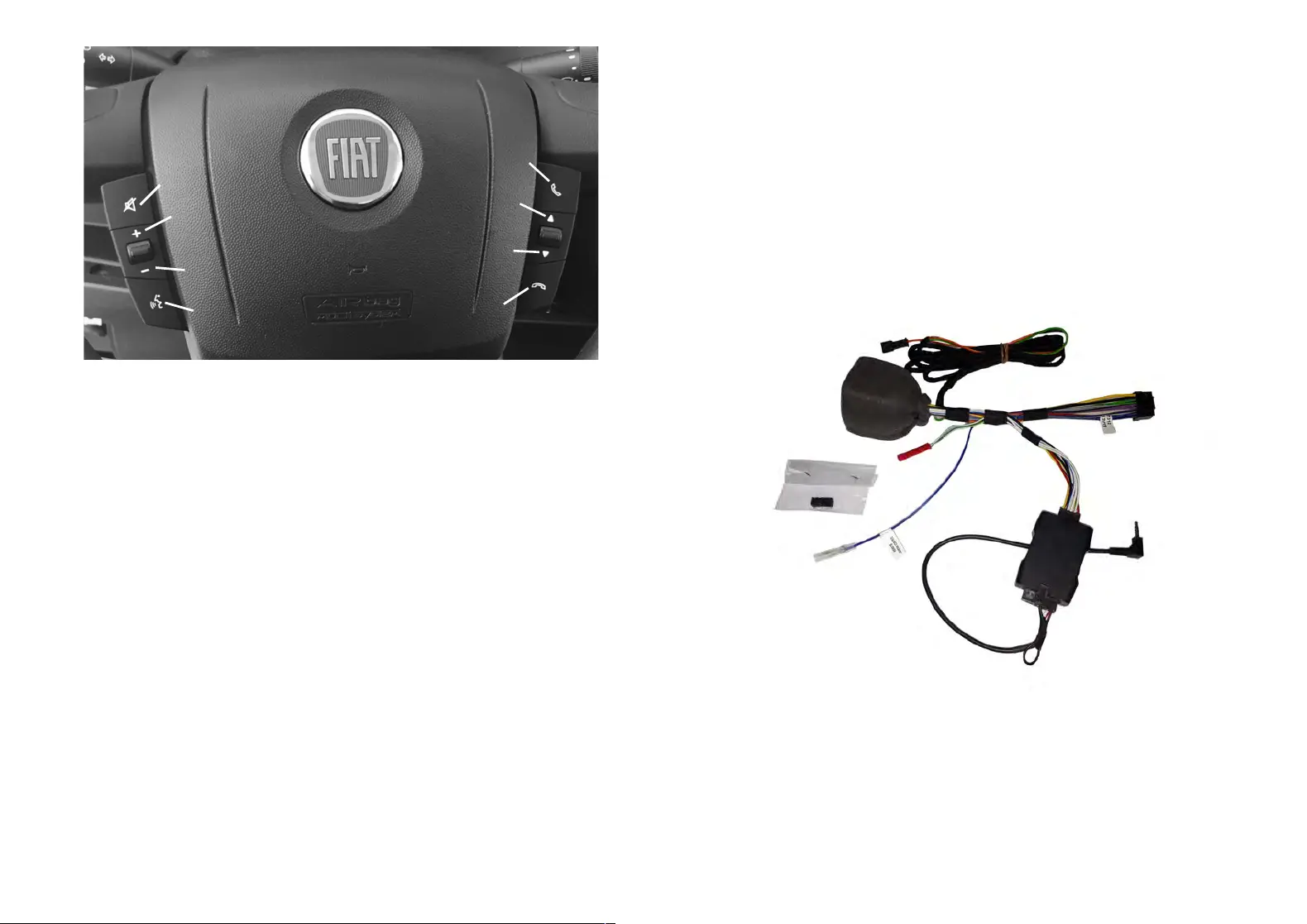

Steering wheel control interface installaon kit for:
Ducato III 250/251 2006-2011
Duc
ato III 250/251 2011-2014
Ducato III 250/251 2014 >
Jumper 2015 >
Boxer II 250/251 2006 >
(*)
1- Volume +
2- Volume -
3- Accept incoming call
4- Reject incoming call
5- Mute
6- Source
7- Seek up
8- Seek down
The steering wheel buons perform the following funcons (if supported by the radio) :
1
2
3
1
2
3
6
4
5
7
8

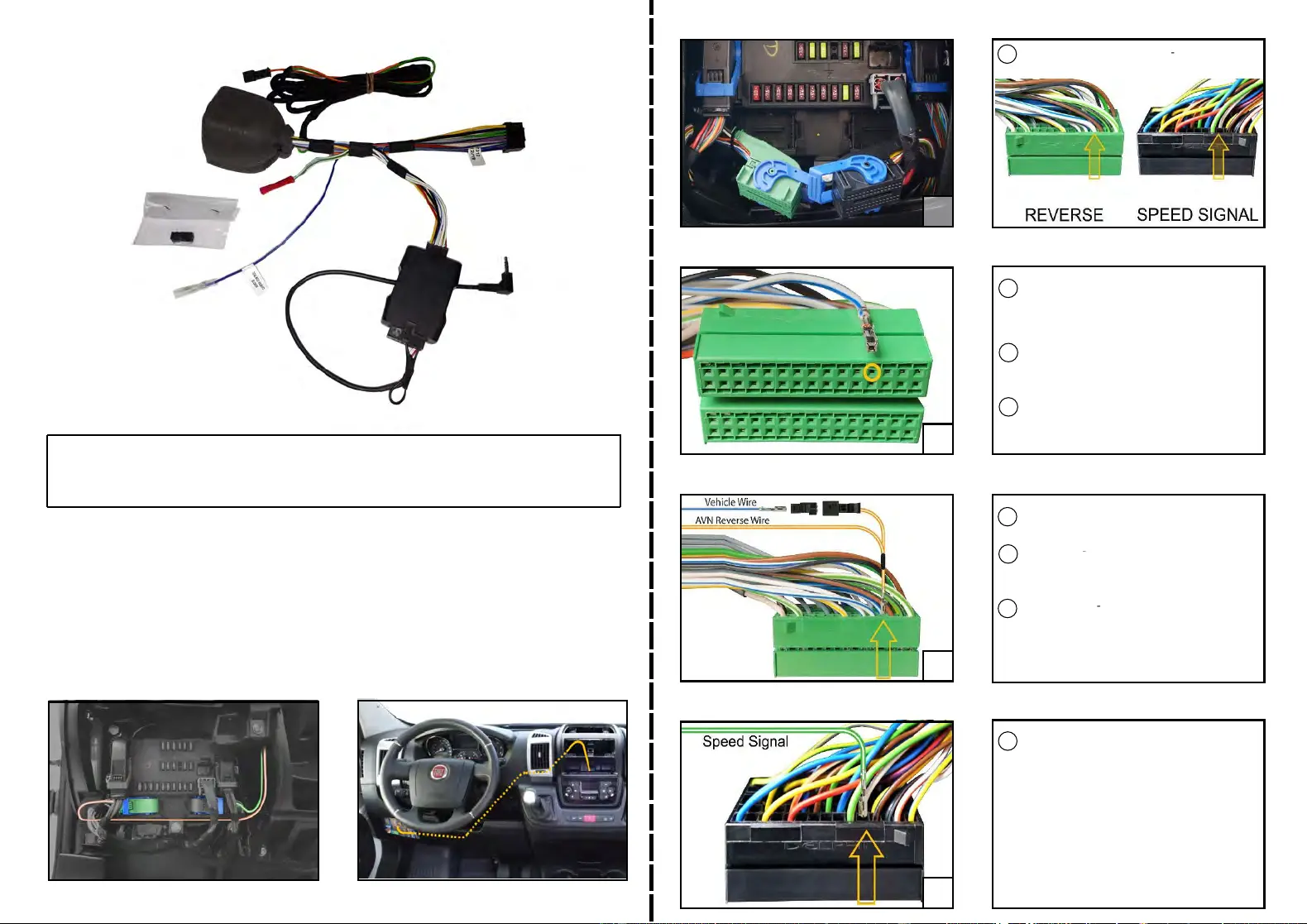

Compability:
Compable with Open-dash version
Disconnect the two lower 60
-
pin
connectors.
01
01
02
03
04
Left Connector (green):
Pin 4 = Reverse Light
01
Right Connector (black):
Pin 56 = Speed Signal
The white / blue cable carries the reverse
signal. Remove the terminal from the
connector housing.
Use the supplied Y
-
cable of the main cable
harness.
02
03
Pull the blue / white cable out of the plug
housing.
Insert the Y
-
cable contact into the
connector housing (Pin 4). The latch must
point outward.
03
Remove the black connector cover on the
same principle as the green connector and
plug the speed signal cable into the free
chamber 56.
Connect the Y
-
cable’s housing to the
connector of reverse signal.
03
04
Route the two cables (Speed/Reverse)
along the fuse box.
Run the cables behind the dashboard up
to the radio dock and fix it in appropriate
places with cable ties.
02
Position of fuse box and the two terminals for
speed and reverse connection.
Routing of the speed & reverse cable
In order to prevent ESD damage, the WHEEL REMOTE JACK (2) must be
connected before plugging in the connectors on car side.
1- to Alpine Head Unit
2- to WIRED REMOTE SOCKET (NOTE: do not connect to microphone socket)
3- to CAR CONNECTOR
4- to CAMERA CONTROL/REMOTE
5- Green/White - SPEED (Connect to the Alpine Head Unit)
6- Orange/White - REVERSE & Green/White -SPEED
(Connect as shown in the picture below)
2
4
3
1
cut along the do�ed line - copy for the vehicle owner
ATTENTION!
6
5
