INSTALLATION MANUAL

2-DIN facia plate:

FIAT

Model: Ducato III Version 8 2021 →

Ducato New Dash 2021 →

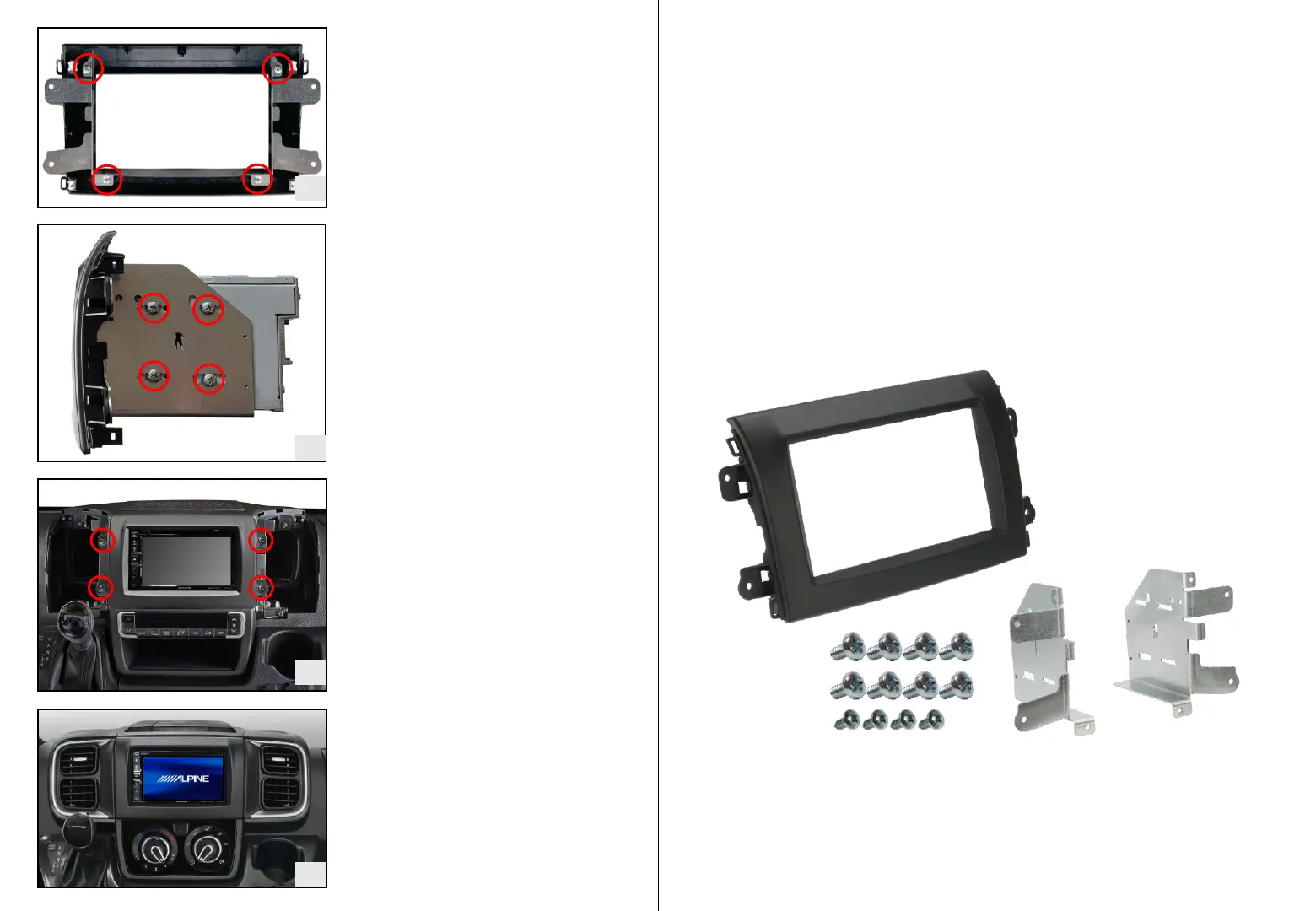

Kit content: Double DIN facia plate, mounting brackets + screws

Compatibility: Compatible with Open-Dash version

All installation work must be performed by a qualified professional installer only.

The manufacturer / dealer is not liable for any kind of incidental or indirect damages.

9. Fix the metal brackets to the

facia plate by tightening the 4

screws (2 per side) supplied in

the kit.

11. Make all connections.

Check the proper functioning of

the whole system.

Fix the head unit with the OEM

screws saved in the step n°4 as

indicated in the picture.

10. Fix the facia plate to the radio

by tightening the 8 screws (4

per side) supplied in the kit.

12. Reassemble all components

following all steps backwards.

This is the ﬁnal result.

04 08

5. Remove the OEM radio dock.

7. Remove and save the 4 clips

circled found to the back side

of the OEM facia plate.

6. Disengage the ISO connector

from the OEM radio dock.

8. Apply the 4 clips removed

previously to the new double

DIN frame.

1. This is how the original

dashboard looks like once

removed the radio panel.

2. Disengage both air vents with

a removal tool and remove

both air vents.

3. Screws to be removed circled in

Red.

4. Release and save the 4 screws

of the radio dock.
