H. Connectivity Layout
INSTALLATION MANUAL

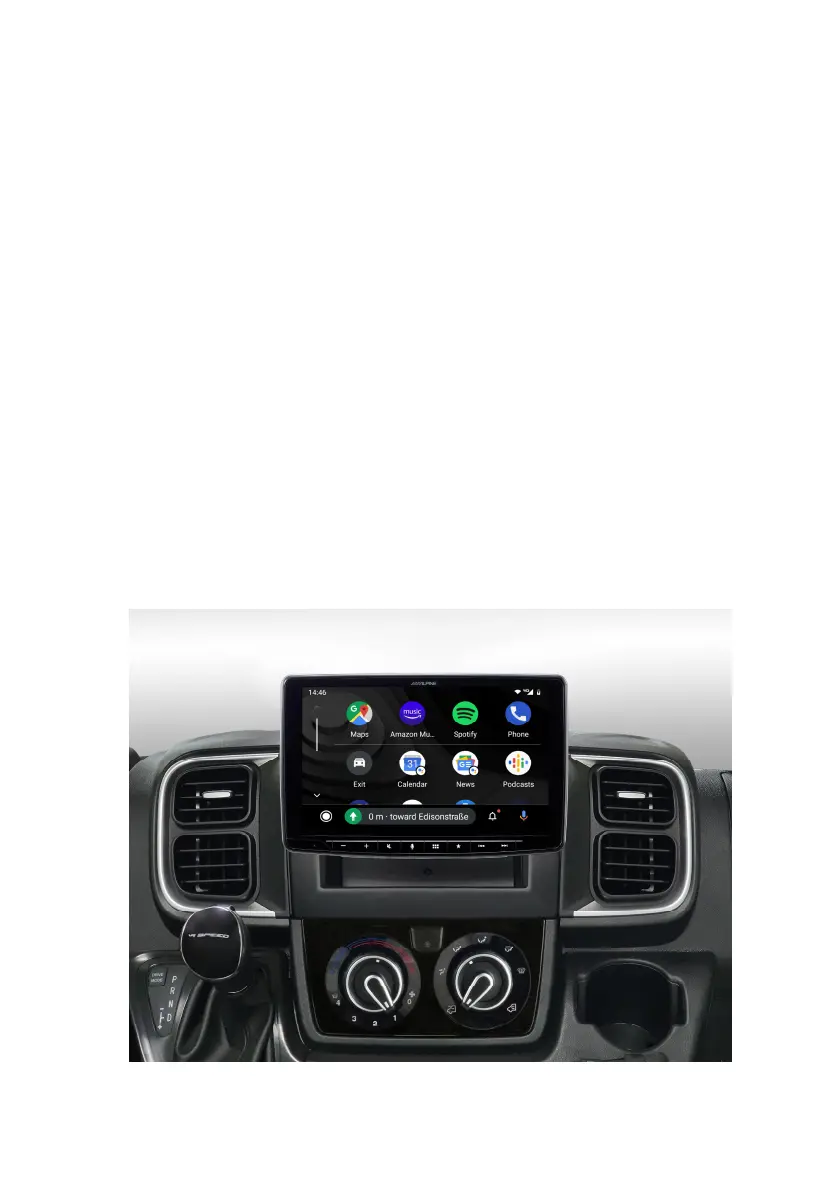

Steering wheel remote control interface for:
FIAT
Model: Ducato III Version 8 2021
Ducato New Dash 2021
Kit content: SWRC CAN bus to UART interface with wiring
harness and ISO connector; antenna DIN adapter;
antenna FAKRA DAB
+
adapter; camera adapter;
plastic socket
Compatibility: Compatible with Ducato 8 Open-Dash version
Suitable for:
INE-F904D(C) / iLX-F903D / iLX-F905D / iLX-F115D
All installation work must be performed by a qualified professional installer only.
The manufacturer / dealer is not liable for any kind of incidental or indirect damages.
04/2022 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.
5. Remove the connector from the
instrument panel.
Content and wiring harness connections
1 - to RADIO POWER connector
2 - to CAR connector
3 - to RADIO CONNECT2 I/F plug
4 - Green/White - SPEED output
(connect to the Alpine radio)
5 - CAMERA control/REMOTE out
6 - POWER ANTENNA output
7 - to optional/extra SERVICES:
Orange – REVERSE output
Green/White – SPEED output
8 - to external switch (Blue cable)
9 - CAN BUS connection access cable
10 - CAN BUS housing for cables
11 - ISO/DIN antenna adapter
12 - CAMERA input adapter
13 - FAKRA antenna adapter for DAB
+
14 - to CAR connector
ATTENTION!
Connect the connector n°15 to
the GREY connector (vehicle side),
do NOT connect it to the ORANGE
connector (vehicle side)
ATTENTION!
For vehicle with FIAT wireless Qi
charger, a separate adapter is
needed. See page 6.
1. Remove the two screws of the
instrument panel cover.
2. Lift the cover at the back first
3. Now remove the cover completely
from the instrument cluster.
4. Establish a CAN bus connection to
the instrument cluster. Laying the
CAN cable from radio connector to
the back side of instrument cluster.
A. Connect the CAN bus cable to vehicle (point 10 / page 2).
7
2
34
5
0
9
1
!
6
8
@
#
$
32
