Sida 1/19
amaran P60c
Product Manual
English
Thank you for purchasing the amaran series LED photography light-amaran
P60c.
Foreword
The amaran P60c is a RGBWW full-color adjustable panel photography light
with adjustable temperature (2500 K - 7500 K), power of 60w, and maximum
illuminance of 5900 lux@1 m (5600 K). The P60c is also excellent in terms of
light quality, with a color rendering index of up to CRI 95+, TLCI 97, G/M
adjustable and no flicker at all.
The amaran P60 series is creators' best choice because of its feature of
lightweight and flexibility.
IMPORTANT SAFETY INSTRUCTIONS
When using this unit, basic safety precautions should always be followed,
including the following:
Read and understand all instructions before using.
Close supervision is necessary when any fixture is used by or near children.
Do not leave the fixture unattended while in use.
Care must be taken as burns can occur from touching hot surfaces.
Do not operate the fixture if a cord is damaged, or if the fixture has been
dropped or damaged, until it has been examined by qualified service
personnel.
Position any power cables such that they will not be tripped over, pulled,
or put into contact with hot surfaces.
If an extension cord is necessary, a cord with an amperage rating at least
equal to that of the fixture should be used. Cords rated for less amperage
than the fixture may overheat.
Always unplug the lighting fixture from the electrical outlet before cleaning
and servicing, or when not in use. Never yank the cord to remove the plug
from the outlet.
Let the lightingxture cool completely before storing.
To reduce the risk of electric shock, do not immerse this fixture in water or
any other liquids.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10. To reduce the risk of re or electric shock, do not disassemble this fixture.
Contact cs@aputure.com or take it to qualified service personnel when
service or repair work is required. Incorrect reassembly may cause electric
shock when the lighting fixture is in use.
11.
12.
13.
14.
15.
16.
17.
18.
19.
The use of an accessory attachment not recommended by the
manufacturer may increase the risk of re, electric shock, or injury to
any persons operating the fixture.
Power this fixture by connecting it to a grounded outlet.
Please do not place the LED lighting fixture near any flammable object.
Only use a dry microfiber cloth to clean the product.
Please have the product checked by an authorized service personnel
agent if your product has a problem.
The malfunctions caused by unauthorized disassembly are not covered
under the warranty.
We recommend only using the original Aputure cable accessories. Please
note that our warranty for this product does not apply to any repairs
required due toany malfunctions of unauthorized Aputure accessories,
although you may request such repairs for a fee.
This product is certified by RoHS, CE, KC, PSE, and FCC. Please
operate the product in full compliance with the operation standards.
Please note that this warranty does not apply to repairs arising from
malfunctions, although you may request such repairs on a chargeable
basis.
The instructions and information in this manual are based on thorough,
controlled company testing procedures. Further notice will not be given
if the design or specifi cations change.
SAVE THESE INSTRUCTIONS
FCC compliance statement
This device complies with Part 15 of the FCC rules. The operating
equipment must meet the following two conditions:
(1) This device will not cause harmful interference;
(2) This device can withstand any external interference, including
interference that may cause unintended operation.
[Warning] If the user makes changes or modifications without the express
permission of Aitus, he may lose the right to continue to operate the device.
[Note] This device has been tested and determined to comply with the limits
of a Class B digital device (in accordance with Part 15 of the FCC rules).
These limits are designed to provide reasonable protection from harmful
interference in residential installations. This device generates, uses, and
can radiate radio frequency energy. If it is not installed and used in
accordance with the instructions, it may cause harmful interference to
radio communications. However, under certain installation conditions,
there is no guarantee that such interference will not occur. If this equipment
does cause harmful interference to radio or television reception, and this
can be determined by turning off and on the equipment, it is recommended
that the user try one or more of the following measures to eliminate the
interference:
Increase the distance between the equipment and the receiver.
Connect the equipment to an outlet on another circuit, not the outlet on
the circuit to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help
FCC radiation exposure statement
This device complies with FCC radiation exposure limits for uncontrolled
environments.

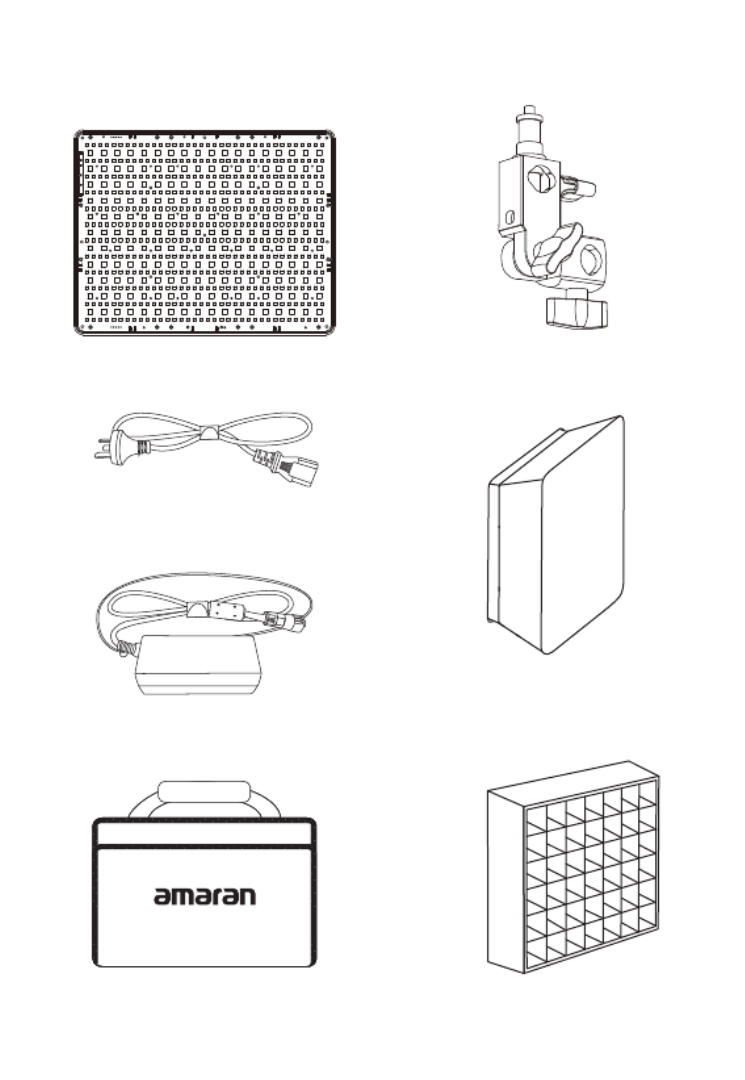

Componets List
amaran P60c
Carrying case
Adapter
AC Power cable
1/4 - 20 in & 3/8 -16 in
Spigot
Softbox
Grid
Product Details
LED chips
Lens protective
baffle
Softbox
support
handle
1/4 screw hole 1/4 screw hole
OLED Display
CCT/HUE Wheel
DC Input G/M / SAT
Wheel
MENU Button
LIGHT Mode Button
Preset Buttons
INT Wheel
Power Button
NP-F battery
slot

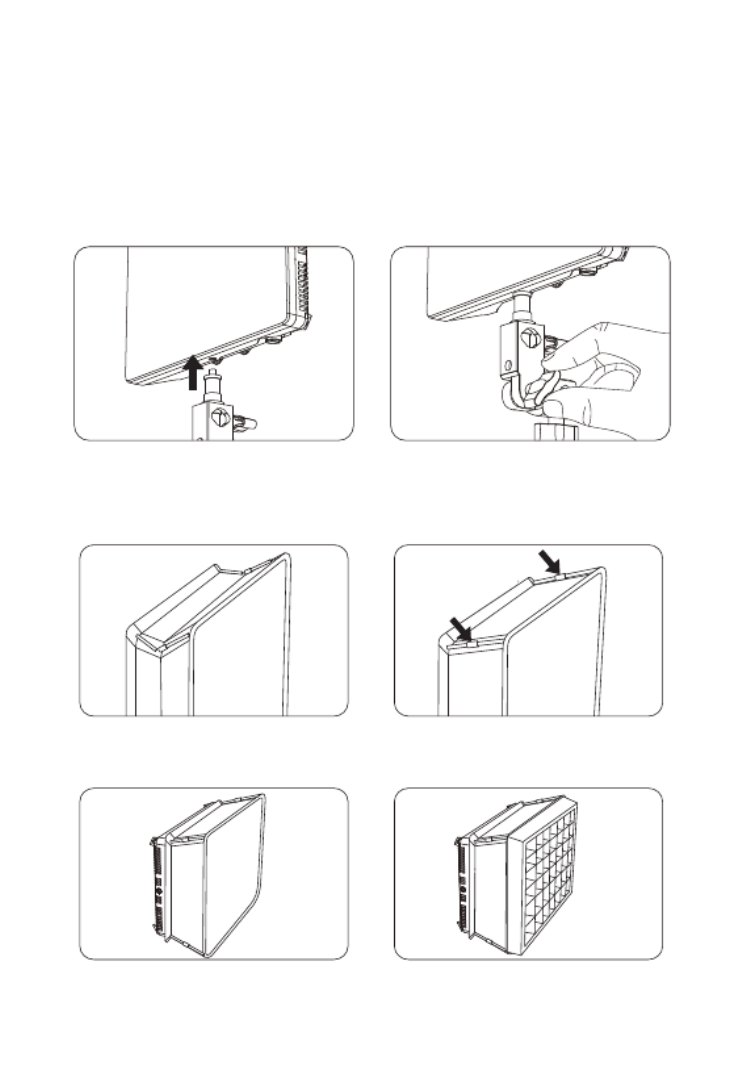

Installation
1. The lamp fixing
2. Softbox installation
Screw the 1/4’’ to 3/8’’ screw clockwise into the 1/4’’ copper nut at
thebottom (or side) of the LED lamp, and tighten it; Connect the 1/4’’
to 3/8’screw and the lamp holder through the lamp holder support
column, adjust the appropriate angle and tighten it.
The light soft box can be installed according to the needs of use.
1. Stretch soft box 2. Straighten the two support
rodson both sides of the soft
box to become a support rod
3. Install the soft box to the
lamp body
4. The grid can be installed
according to the requirements
Power supply
1. Adapter power supply
AC 100 V - 240 V
G/M data
Brightness
CCT
Remaining
Operating time
When disassembling the power cable, please rotate the spring lock
button on the power cable before disassembling, do not pull it hard.

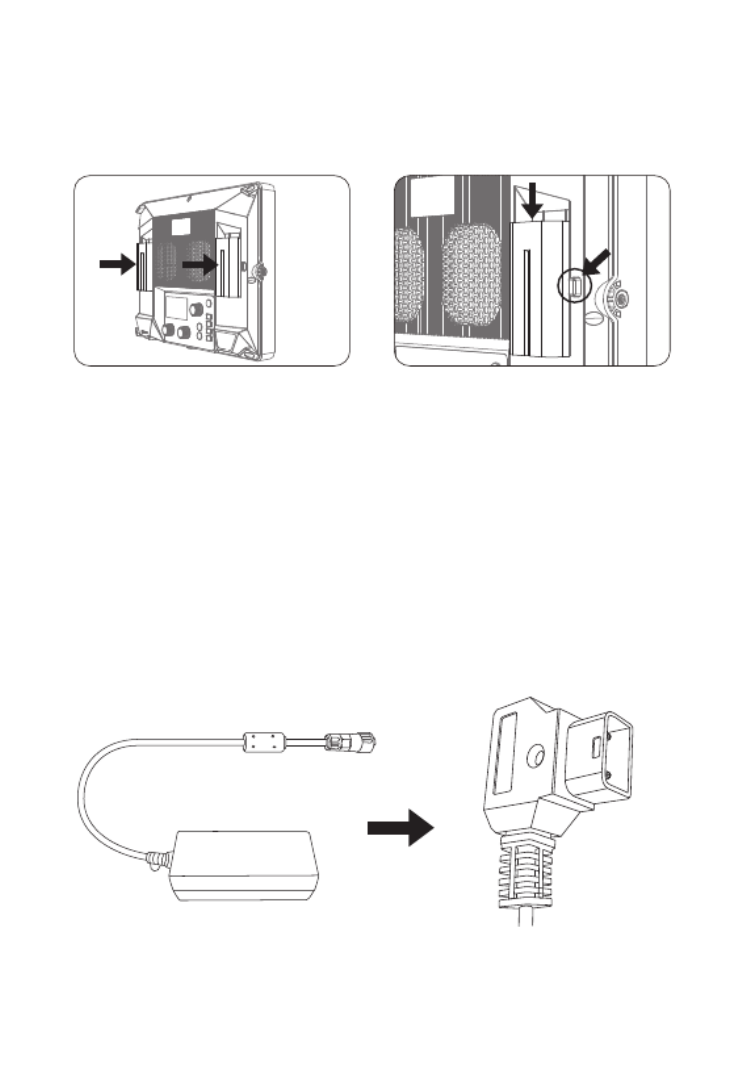

2. Lithium battery power supply
Battery Installation: Slide the
lithium battery into the battery
slot.
Press the battery lock button
while gently pushing the battery
to remove the battery.
* This product uses a lithium battery model Sony NP-F Series: NP - F 960 / F 970.
* D-tap to DC cable needs to be purchased separately.
3. V-mount battery or Anton Bauer battery power supply
Through the "D-tap to DC" connection cable, the lamp body can be
connected to the V-mount battery or Anton Bauer battery for power
supply.

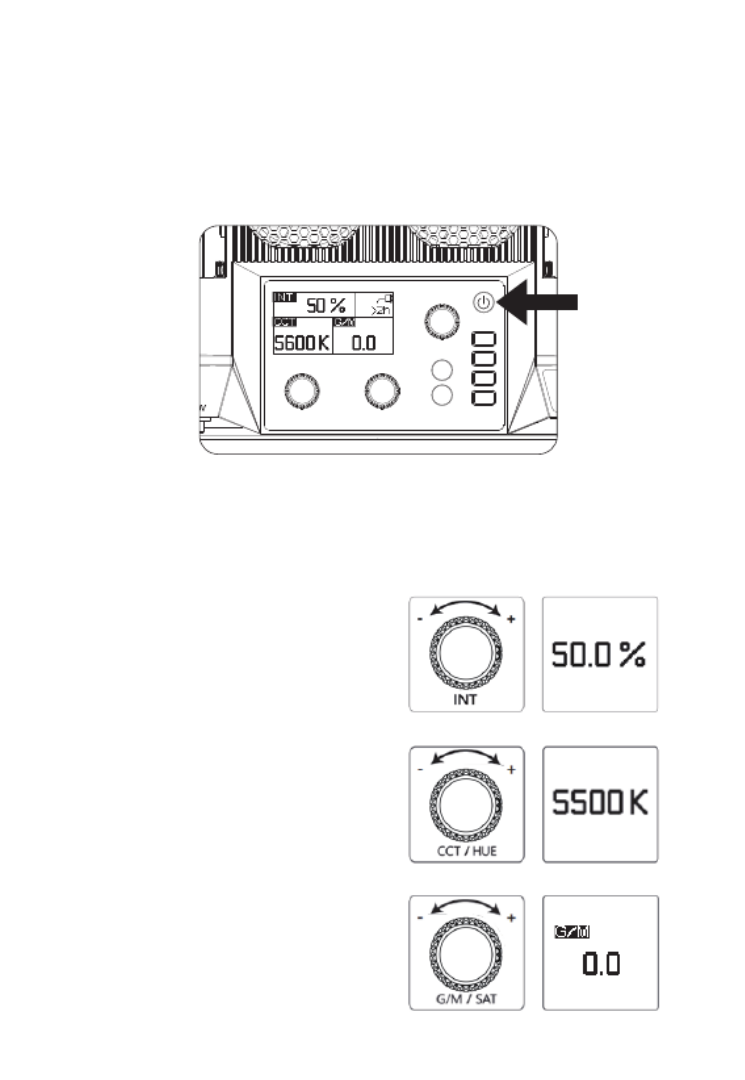

Operation Instructions
1. Turning on the Light
After connecting the lamp body to an appropriate power source,
press the power switch to start the P60c.
2. Manual Control
Rotate the Intensity (INT) Wheel
to adjust the intensity of the light
from 0-100%.
Rotate the CCT / HUE wheel to
adjust the CCT of the light from
2500K-7500K.
Rotate the Green-Magenta /
Saturation (G/M / SAT) Wheel
to adjust the the Green-Magenta
Shift or Saturation output of the
light fixture.
* The speed at which you rotate the knob will result in different rates of
change.

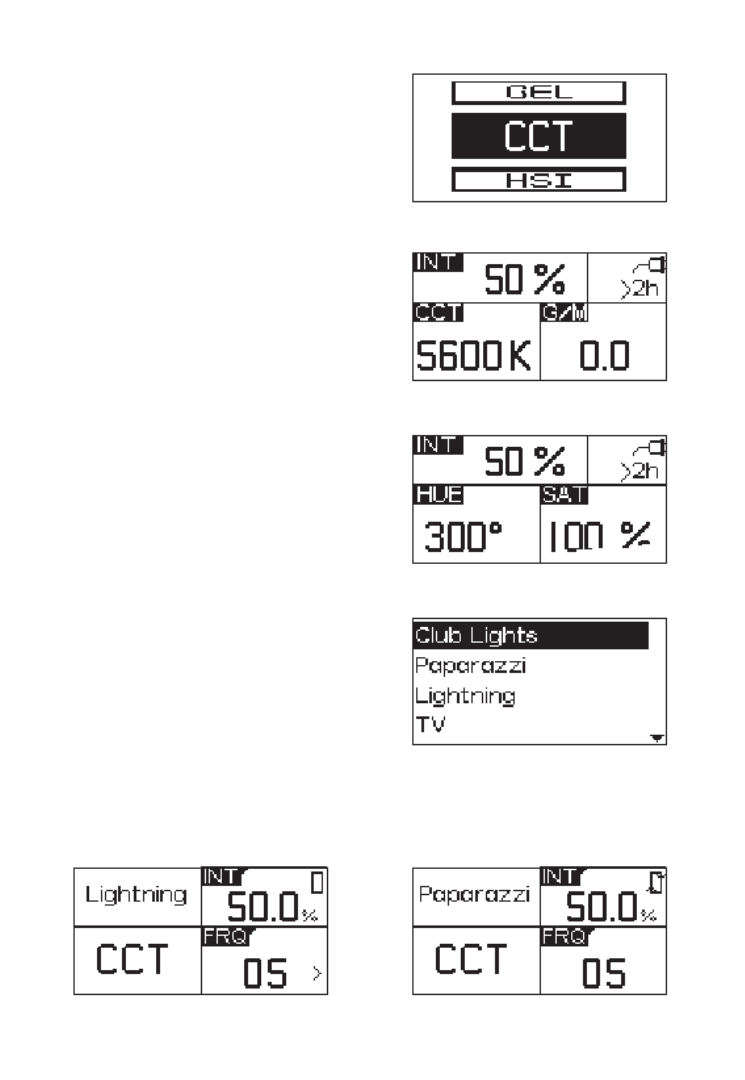

2.2 Light Mode Interface
2.2.1 Press the INT wheel to
select CCT mode to adjust the
color temperature of the light
from 2500 K - 7500 K.
2.2.2 Press the Light Mode button
to enter the main interface, press
the INT wheel to select HSI mode
to adjust the change of the HUE
from 1°- 360°. SAT from 0% -100%.
2.2.3 Press the Light Mode button
to enter the main interface , press
the INT wheel to select FX mode,
then rotate the INT wheel to toggle
between Lightning, Paparazzi,
Strobe, Cop Car, Fireworks , Pulsing,
Fault Bulb, Fire, TV , Party Lights,.
Lightning Paparazz
