User Guide
and Reference Manual
6/08

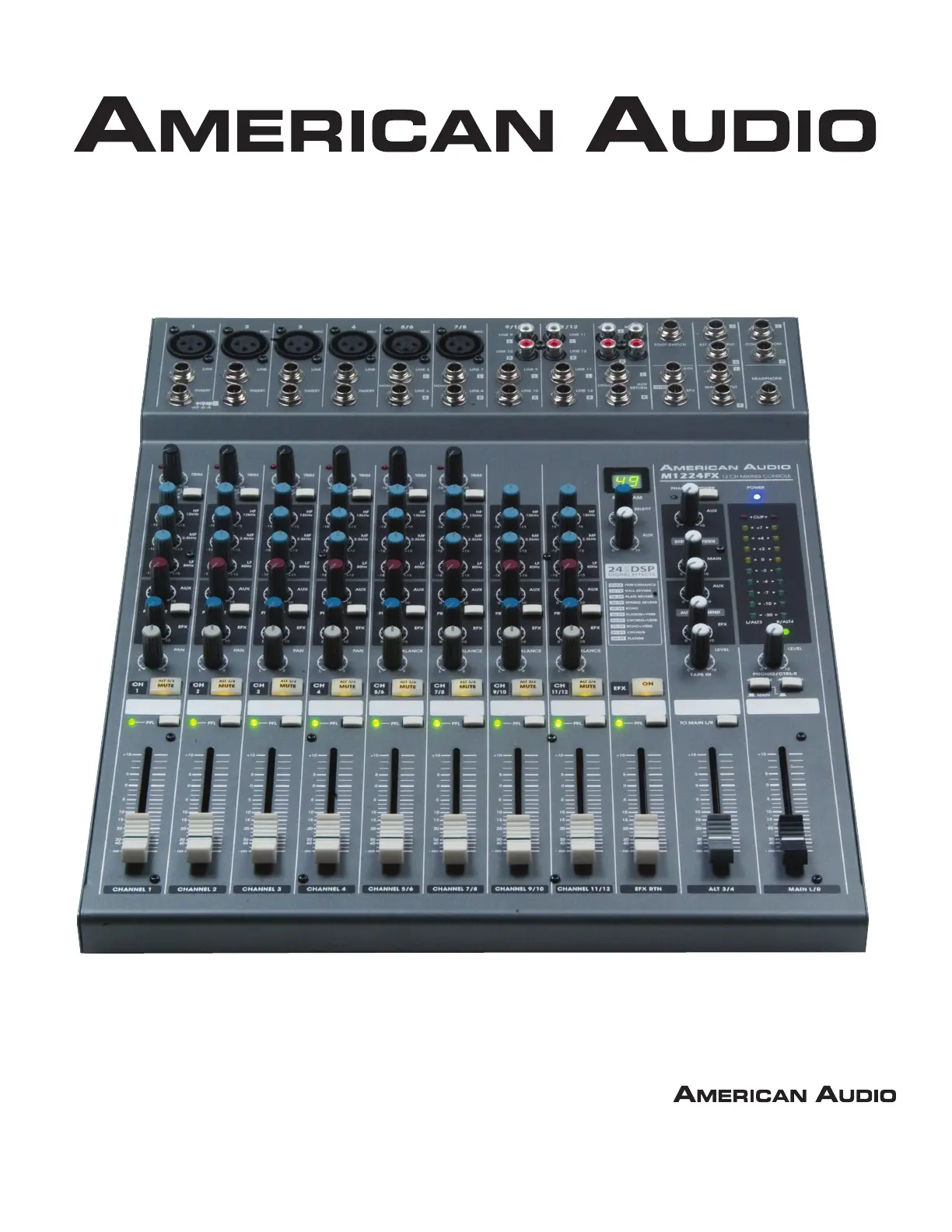

M1224FX
6122 S. Eastern Ave
Los Angeles, CA 90040
www.AmericanAudio.us
©American Audio® - www.americanaudio.us - M1224FX Instruction Manual Page 2
M1224FX CONTENTS
M1224FX MaiN FEaTURES
MAIN FEATURES....................................................................................................................................2
ELECTRICAL PRECAUTIONS................................................................................................................3
SAFETY PRECAUTIONS........................................................................................................................5
INTRODUCTION....................................................................................................................................6
SET-UP PRECAUTIONS.........................................................................................................................6
UNPACKING.........................................................................................................................................7
QUICK START........................................................................................................................................7
CONTROLS AND FUNCTIONS
CHANNEL CONTROL.................................................................................................................8
MAIN CONTROL.......................................................................................................................11
INPUT & OUTPUT CONNECTIONS.........................................................................................14
CONNECTORS..............................................................................................................16
HOME/STUDIO RECORDING SET-UP.................................................................................................18
LIVE PERFORMANCE SET UP.............................................................................................................19
EFFECTS LIST......................................................................................................................................20
CLEANING......................................................................................................................22
TROUBLESHOOTING......................................................................................................................22
WARRANTY.........................................................................................................................................23
SPECIFICATIONS.....................................................................................................................24
• 4 Mono & 4 Stereo Channel Inputs
• Stereo Main Outputs & ALT 3/4 Output
• 3-Band EQ, 1 Aux with Pre/Post Switch, 1 EFX, BAL, Mute, & PFL for Stereo Input
• Trim With Peak LED, HPF, 3-Band EQ, 1 Aux With Pre/Post Switch, 1 EFX, Pan, Mute, & PFL
Switch for Mono Input
• Trim With Peak LED, HPF (CH 5-8)
• Main L/R With AFL Switch, ALT 3/4 With AFL, To Main Switch, AUX & EFX Send, AUX & EFX
Return
• Tape With PFL Switch, HP/Control Room & Phantom Power
• 24-Bit DSP Effect, 100 Presets, EFX On/Off & EFX Level
• Tape With PFL Switch, HP/Control Room & Phantom Power
• 6 XLR Mic/Inputs
• XLR & 1/4” Phone Jack Balanced & 1/4” Phone Jack for Mono Input
• XLR & 1/4” Phone Jack For Stereo (Ch 5-8) & 1/4” Phone & Phono Jack For Stereo Input
• 1/4” Phone Jack For Stereo Return & Phono Jack For Tape In
• 1/4” Phone Jack For Main, ALT 3/4, Aux Send, EFX Send, Control Room & Headphone
• Phono Jack For Tape & 1/4” Phone Jack For Footswitch
