SAVE FOR FUTURE USE
2
1
7301743-100 Rev. A
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2011
NEOPRENE
SEAL
SEALANT
INSTALL NEOPRENE OR GRAPHITE FELT SEAL*
Install seal evenly around waste flange (horn).
Apply a thin bead of sealant around base flange.
*NOTE: Wax seal not recommended for this application.
RECOMMENDED TOOLS AND MATERIALS
Putty Knife Regular Screwdriver Adjustable Wrench Sealant Tape Measure
Hacksaw Wax Ring/Gasket Flexible Supply Tube Closet Bolts Carpenters Level
CAUTION: PRODUCT IS FRAGILE. TWO PEOPLE ARE RECOMMENDED FOR HANDLING
TO AVOID BREAKAGE AND POSSIBLE INJURY!
NOTE:Pictures may not exactly define contour of china and components.
NOTE:For proper operation these products require a minimum of 30 psi line pressure.

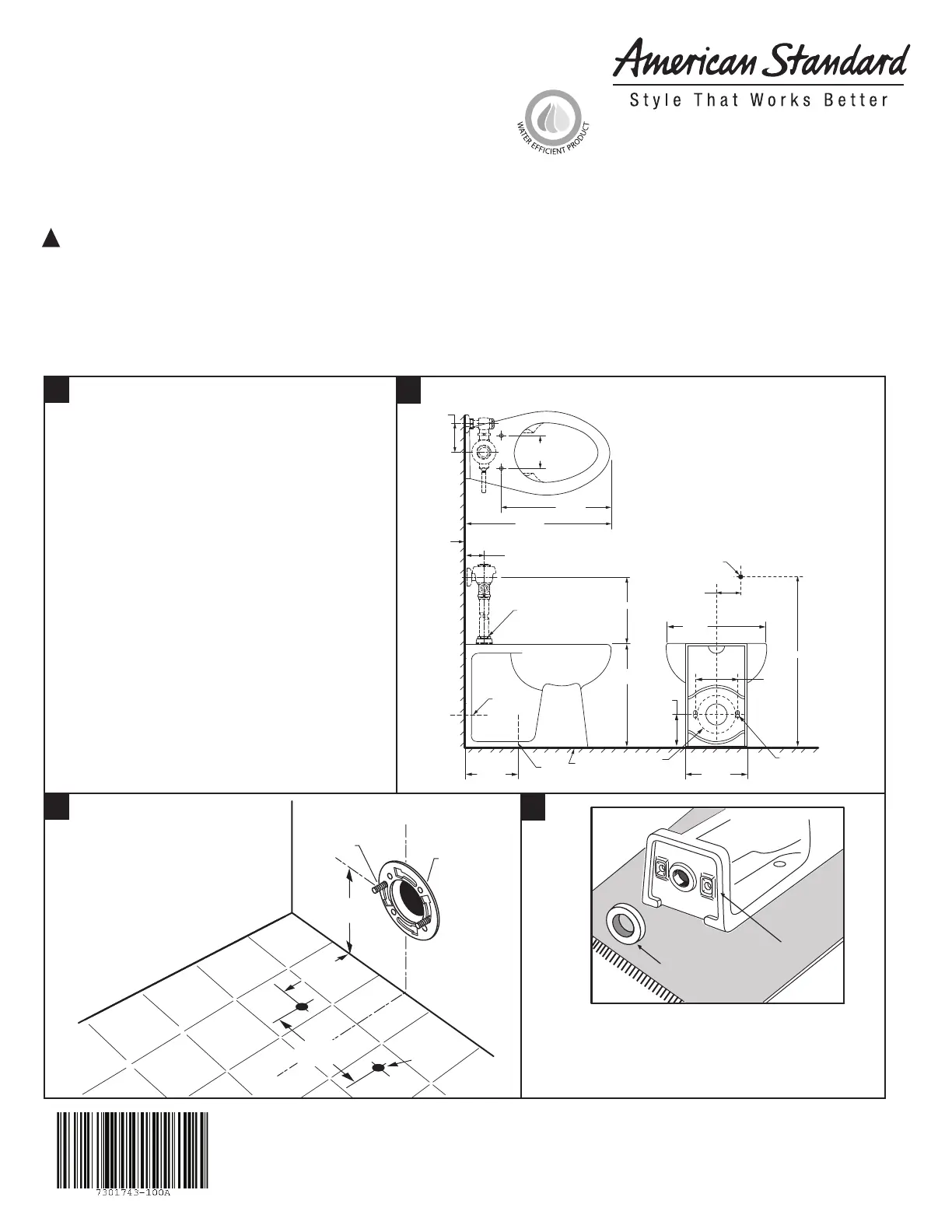

HURON BOWL WITH EVERCLEAN
®
ONE PIECE TOILET
INSTALLATION INSTRUCTIONS
Thank you for selecting American Standard – the benchmark of fine quality for over 100 years. To ensure this product is installed
properly, please read these instructions carefully before you begin. (Certain installations may require professional help.) Also be
sure your installation conforms to local codes.
!
HURON 3312/3313 17-1/8" TOP SPUD
DIMENSIONS (Nominal)
NOTE: Distance from floor to closet flange
centerline (rough-in) must be 4-1/4" (108 mm)
with flange surface flush to 1/16" (1.6mm) max.
beyond finished wall.
Models 3312.001, 3313.001
34
FLUSH TO
1/16" (1.6mm)
EXPOSED
CLOSET
FLANGE
CLOSET
BOLTS
6"
(152mm)
PILOT
HOLES
4-1/4"
(108mm)
Install closet bolts in flange channel, turn
90°, and slide into place 6" (152 mm)
apart and parallel to floor. (Use putty to
hold bolts in place if necessary.) Brace
under flooring as needed and drill two
mounting pilot holes as shown.
a. Close flush valve completely.
b. NOTE: If replacing valve, first shut off main water supply!
c. Remove old mounting hardware, remove toilet and plug
wall waste opening to prevent escaping sewer gases.
d. Remove closet bolts from flange and clean away old wax,
putty, etc. from base area.
NOTE: Mounting surface must be clean and perpendicular
to the floor before new toilet is installed!
REMOVE OLD TOILET
INSTALL CLOSET BOLTS
FINISHED
FLOOR
FINISHED
WALL
3"
(76mm)
18-7/8"
(479mm)
24-7/8"
(632mm)
5-1/2"
(140mm)
*4-3/4"
(120mm)
1-1/2" (38mm)
SPUD CONNECTION
*
C/L OUTLET
4-1/4"
(108mm)
C/L OUTLET
4-1/4"
(108mm)
17-1/8"
(435mm)
*
1-1/2" (38.1mm)
N.P.S. SUPPLY
6" (152mm)
DIA. HOLE
IN WALL
*4-3/4"
(121mm)
13-3/4"
(349mm)
8-1/2"
(216mm)
10-3/4"
(273mm)
C/L of
1/2"(13mm)
Dia. Holes
6"
(152mm)
(2) SLOTS
1" x 1/2"
(25mm x 13mm)
10-3/4"
(267mm)
