American Standard Serin T064507.002 Bruksanvisning
Sidor 4 Duschsystem
Läs bruksanvisningen för American Standard Serin T064507.002 gratis online eller ladda ner PDF:en. 16 personer har tyckt att guiden var hjälpsam. Fråga om modellen? Ställ en fråga

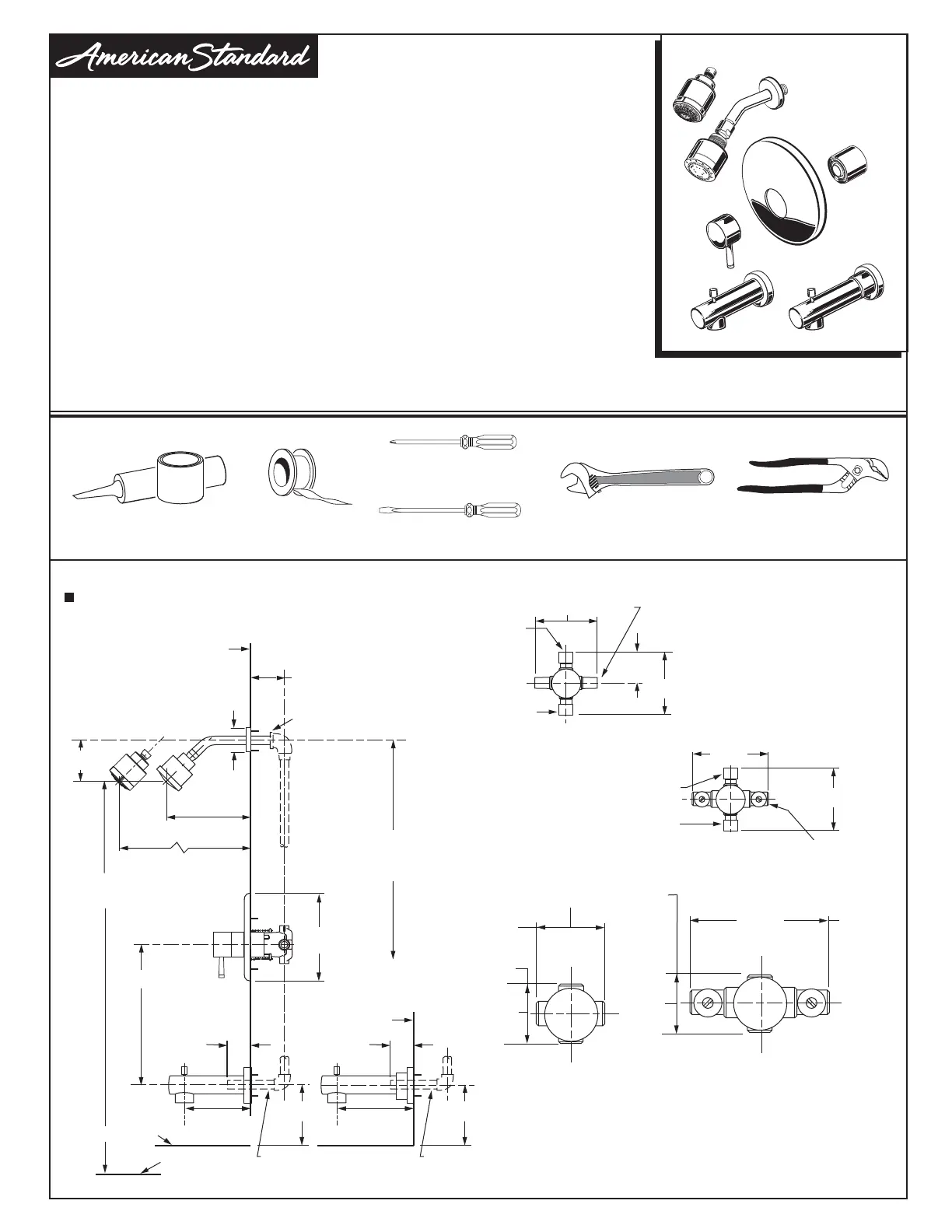

BATH AND SHOWER TRIM KIT
M968837 Rev.1.8
T064.50XT064.552/558
To assure proper positioning in relation to wall,
note roughing-in dimensions.
ROUGHING-IN DIMENSIONS
Certified to comply with ANSI A112.18.1
Installation
Instructions
SERIN
™
T064.50X
T064.552
T064.558
THREADED INLETS (STOPS)
INLETS
1/2"
(13mm)
NPT
INLETS 1/2" NPT
OUTLETS
1/2" (13mm)
NPT
OUTLETS
1/2" (13mm)
NPT
3-3/8"
(86mm)
3-3/8"
(86mm)
3-3/8"
(86mm)
THREADED INLETS
Recommened Tools
Flat Blade Screwdriver
Adjustable Wrench
Channel Locks
Plumbers' Putty or Caulking
Phillips Screwdriver
4"
(102mm)
BOTTOM OF TUB
74" (1880mm)
FOR HEAD
CLEARANCE
18" OPTIONAL
4-7/8" REF.
(124mm)
5-7/16" REF.
(141mm)
1/2" (13mm) NPT
1/2" COPPER
7-1/4"
(184mm)
OPTIONAL TO FINISHED
FLOOR USUALLY
BETWEEN 65'' AND 80''
(1651 AND 2032mm)
TOP OF TUB RIM
Teflon Tape
5-7/8"
(149mm)
5-7/8"
(149mm)
INLETS
4-1/16"
(104mm)
4-1/16"
(104mm)
INLETS
1/2" (13mm) NOM.
COPPER
SWEAT
TUB 1/2" (13mm) NOM.
COPPER SWEAT
SHR. 1/2" (13mm) NOM.
COPPER SWEAT
TUB 1/2" (13mm) NOM.
COPPER SWEAT
SHR. 1/2" (13mm) NOM.
COPPER SWEAT
2"
(51mm)
SWEAT
INLETS
SWEAT
INLETS (STOPS)
INLETS
1/2"
(13mm) NOM.
COPPER SWEAT
1 -3/4"
(44mm)
1-5/8" TO 3-1/4"
(41 TO 83mm)
FINISHED WALL
FINISHED WALL
To ensure that your installation proceeds smoothly-please read these
instructions carefully before you begin.
5-5/8" REF.
(143mm)
8-1/8" REF.
(206mm)
8-1/8" REF.
(206mm)
2-3/8"
(60mm)
Thank you for selecting American-Standard...the benchmark
of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--please
read these instructions carefully before you begin.
4"
(102mm)
1/2" COPPER
1 -3/4"
(44mm)
4-1/16"
(104mm)
Produktspecifikationer
| Varumärke: | American Standard |
| Kategori: | Duschsystem |
| Modell: | Serin T064507.002 |
Behöver du hjälp?
Om du behöver hjälp med American Standard Serin T064507.002 ställ en fråga nedan och andra användare kommer att svara dig
