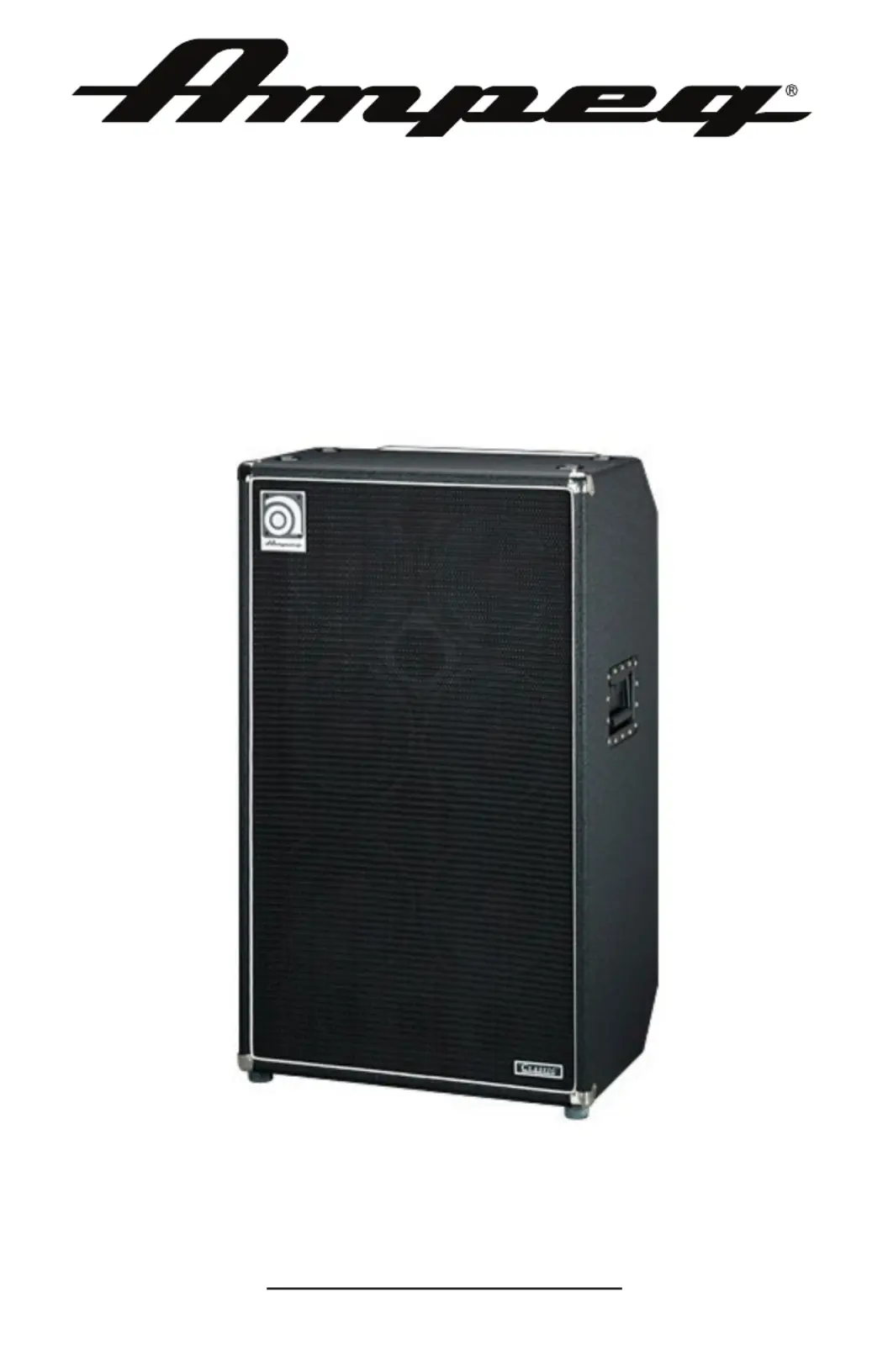

Owner’s Manual
SVT-610HLF
Bass Guitar Cabinet
SVT-610HLF Bass Guitar Cabinet
2
What’s in the Box
SVT®-610HLF Speaker Cabinet, Quick Start Guide.
Introduction
Your Ampeg SVT-610HLF 6x10" bass enclosure is a high quality, two-way speaker cabinet
suitable for all sizes of venues. The SVT-610HLF delivers deep, tight bass, as well as a
generous helping of denition and top-end clarity, thanks to its 1" horn driver. The cabinet
features heavy duty recessed handles, an industrial strength grip bar, and heavy duty rear
wheels. Skid rails are placed on the back of the enclosure to protect it while loading in and
out of venues. (Place a foot against one of the rails when tilting the cabinet back to roll it.)
The Speakon® and 1/4" jacks are wired in parallel, allowing easy daisy chaining from
one speaker cabinet to another. Each of the jacks may be used as an input or a through
connection. Speakon connectors are recognized as the standard for professional
installations, assuring a secure, permanent connection that won’t corrode, vibrate loose,
or be easily tampered with. The 1/4" jacks are convenient, however, the Speakon jacks are
recommended when using power ampliers over 150 watts for permanent installations, or
for the “rst” speaker among a number of daisy chained speakers.
In order to get the most out of your new Ampeg speaker cabinet, please fully read this
Owner’s Manual Important Safety Instructions, as well as the included with your cabinet,
before you begin playing.
And thank you for choosing Ampeg.
TABLE OF CONTENTS
What’s in the Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Jackplate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Suggested Hookup Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Technical Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Warranty and Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
SVT-610HLF Bass Guitar Cabinet
3
Jackplate
-db
LEVEL CONTROL
4
5
6
7
8
8
9
10
11
12
16 0
1
2
3
Designed in USA | Made in China
26580 Agoura Rd., Calabasas, CA 91302 USA
WARNING: THIS SPEAKER IS CAPABLE OF
PRODUCING SOUND PRESSURE LEVELS (SPL)
WHICH CAN CAUSE HEARING IMPAIRMENTS OR
LOSS. EAR PROTECT ION IS RECOMMENDED
IMPEDANCE: 4 OHMS
POWER: 600W RMS/1200 PEAK
I N P U T S
1+ = POS(+ ) 1- = NEG(-) /
SVT - 610HLF
SERIAL NUMBER
1 2 3
1. 1/4" Input / Output Jacks
2. Speakon Input / Output Jacks
3. High Frequency Horn Level Control
Speakon to 1/4" Wiring Diagram
1+
1-
1+
1-
