INSTALLATION INSTRUCTIONS

· Adjustment: The S1270 is constructed with a pivoting, cast

iron base. Loosen the wing nut connecting the base to the

horn and remove the base.

With a screwdriver, loosen the screw on the back of the

speaker if you wish to rotate the horn between vertical and

horizontal positions. Tighten the screw securely when the

desired position is reached.

· Base: The base contains 3 holes for screws (not included).

Use screws with greater than 1/4” diameter head to ensure

safe installation. Screw the base to the mounting surface

where you wish to install horn.

Reattach the horn to the base, rotate the horn to your de-

sired angle and tighten the wing nut securely.

· Wiring: To aid weatherproofing, the wire connections are

sealed internally, and accessible through a 20” lead.

Connect the White (positive) and Black (negative/ground)

wires to the corresponding 8 ohm outputs on your amplifier.

· If you wish to use the tamper loop functionality, connect the

Red and Green wires to the appropriate circuit in your alarm

system. If the circuit is broken, an alarm can be triggered.

This is normally closed (NC) circuit

IF YOU HAVE ANY QUESTIONS OR PROBLEMS PLEASE CALL

OUR CUSTOMER SERVICE DEPARTMENT AT 1-800-267-5486

Thank you for purchasing

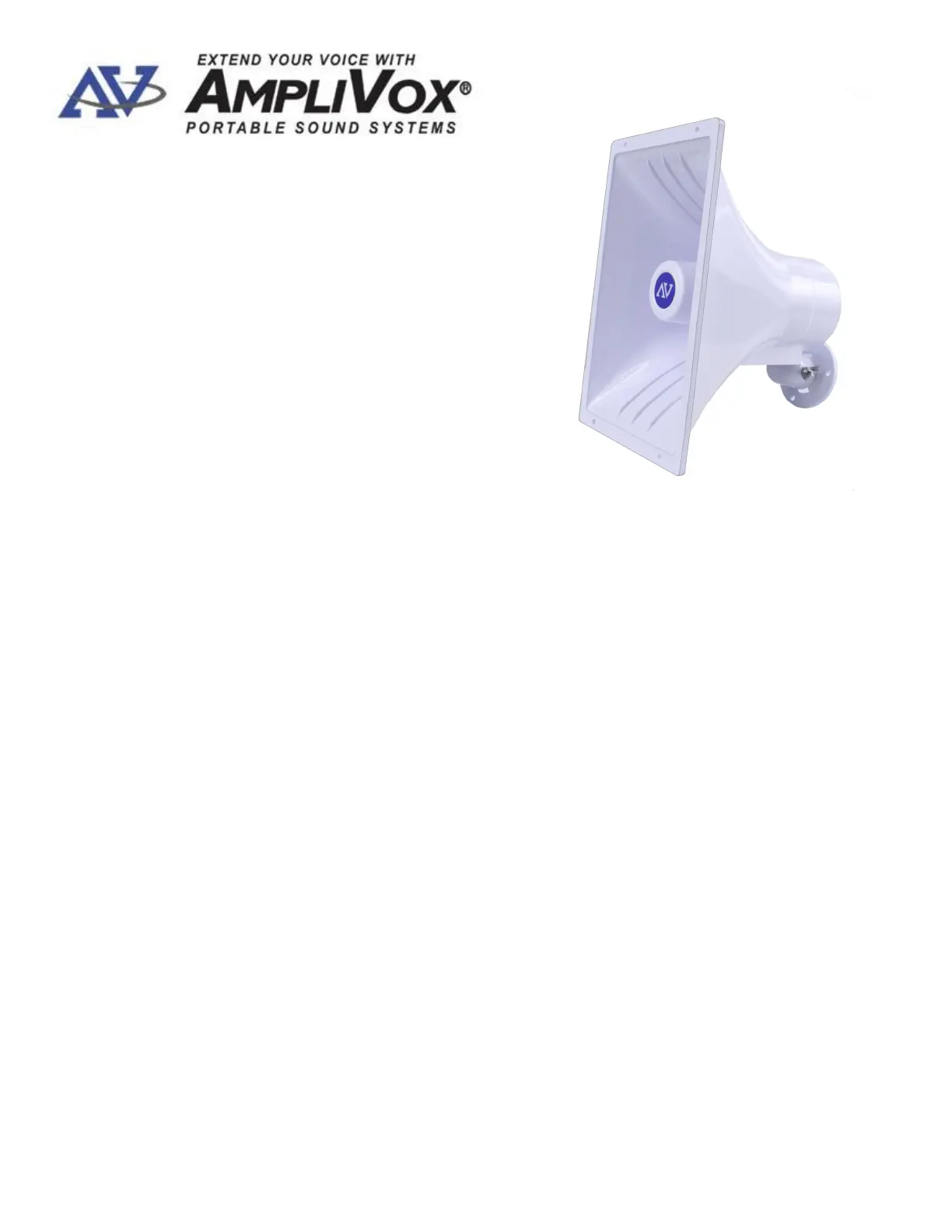

AmpliVox S1270 - POWER HORN

We encourage you to visit our website

www.ampli.com to register your product for its war-

ranty coverage, sign up to receive our newsletter,

download our catalog, and learn more about the

complete line of AmpliVox audio visual products,

including portable PA systems, and lecterns.

SPECIFICATIONS:

· Frequency Response: 200 Hz—15 kHz

· Max Power Handling: 100W

· Sensitivity: 124 dB, 1W / 1M

· Impedance: 8 Ohms

· Size: 6" W x 10 7/8" H x 8 3/8" D

· Weatherproof ABS construction

Produktspecifikationer

Varumärke:	AmpliVox
Kategori:	högtalare
Modell:	S1270
Bredd:	152.4 mm
Djup:	203.2 mm
Höjd:	254 mm
Impedans:	8 Ω
Känslighet:	124 dB
Bil:	Nej
Produktens färg:	Vit
Enhetstyp:	Universal
Frekvensområde:	200 - 15000 hz
Anslutningsteknologi:	Kabel
