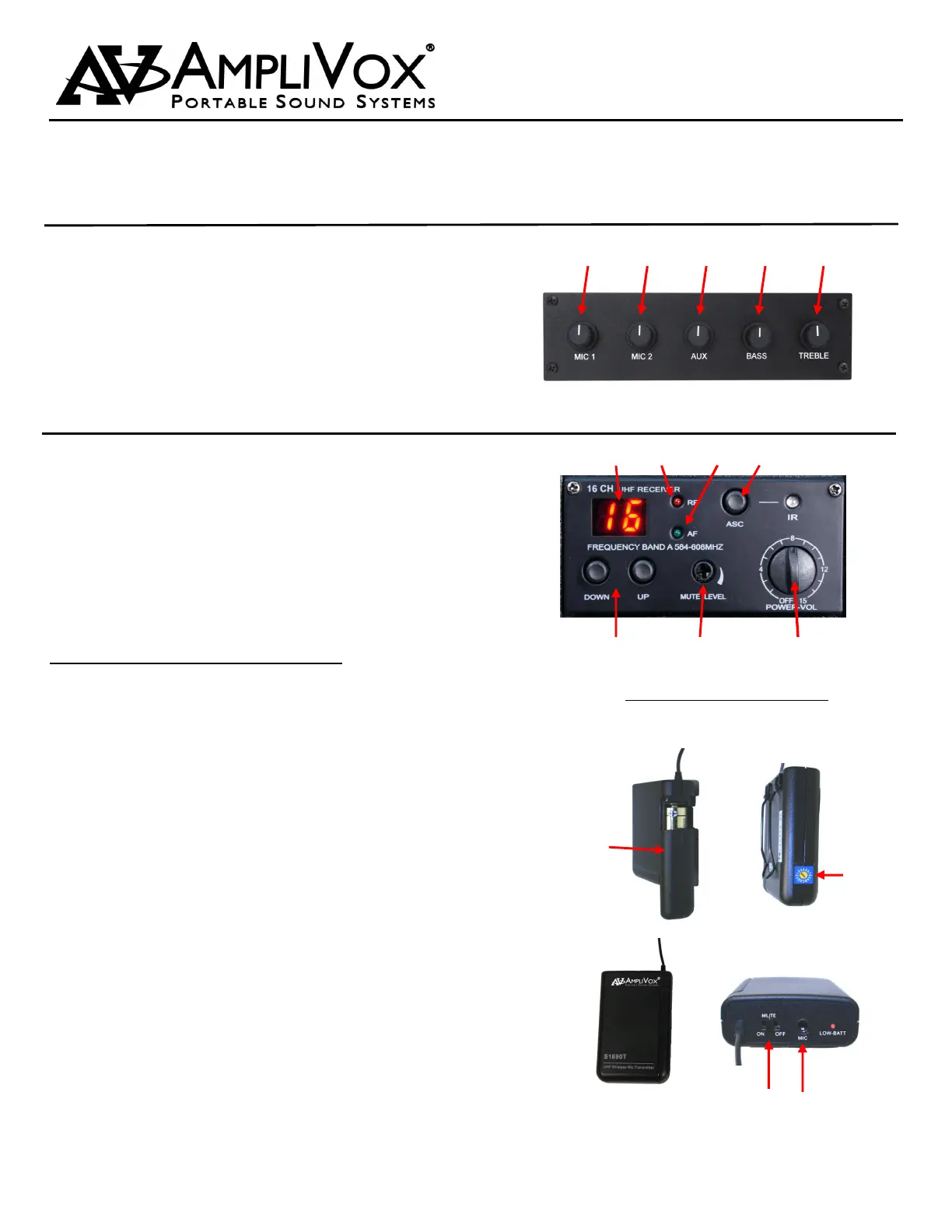

CONTROL PANEL

Electronic Instructions

Lectern

Your lectern may not contain all of the electronic modules as shown and explained here. Speakers and lectern

microphone are pre-wired. To install gooseneck microphone, pull out connector from microphone holder and

snap microphone into connector. Install back into microphone holder.

NEED HELP? Call 800-267-5486

16 CHANNEL WIRELESS RECEIVER

1. MIC 1: Adjusts volume level of gooseneck microphone

on reading table.

2. MIC 2: Adjusts volume level of microphone plugged

into the MIC 2 input jack on amplifier.

3. AUX: Controls output level of device that is plugged

into the L/R RCA jacks.

4. BASS: This control cuts or boosts the bass level.

5. TREBLE: This control cuts or boosts the treble level.

RECEIVER / TRANSMITTER SETUP:

· The receiver has its own POWER / VOLUME Control (G).

Turn Power On. A Frequency Channel will appear in the Chan-

nel Display (A). Press Select Buttons (E) to select a channel.

Channel number must match channel number on wireless

transmitter.

· The transmitter bodypack is operated by 1 - "AA" 1.5 Volt alka-

line battery. Slide off battery cover (H) and install battery as

shown. Make certain the battery is fully seated in its compart-

ment so the cover slides in place easily. Battery life with alka-

line batteries is approximately 8 hours of operating time.

· Select a channel (1-16) on side panel (I) using the supplied

screw driver to select channel number. Channel selected

should match channel on receiver. When transmitter and

receiver are set to correct channel the RF indicator (B) will

glow red when transmitter is turned on.

· Plug the Lapel microphone into the Mic Input Jack (K). The

microphone can be clipped to a necktie or other clothing,

using the supplied clip. The lapel mic should be placed under

the chin, as close to the center of the body as possible.

· Slide the power ON/OFF switch (J) to the ON position (the

LED indicator light will illuminate green). Replace batteries

when this LED turns red.

● MUTE LEVEL (F) is set at half way mark when it leaves the

factory. If speaker sound is breaking up, turn level clockwise

with small screwdriver until condition improves.

· Channel Display (A)

· RF - Radio Frequency Indicator (B)

· AF - Audio Frequency Indicator (C)

· ASC / IR Auto Channel Select (Handheld Only) (D)

· Select Buttons - Manual Channel Selection (E)

· Mute Level Adjustment (F)

· Volume Control (G)

C D

1 2 3 4 5

Wireless Transmitter - Bodypack

Battery Cover

Channel Selector

Top Panel
