QUICK START GUIDE
HPG-20 HydraPort 2-inch Grommet
Overview
The HPG-20 family of 2-inch Grommets (FG570-02m-cc) are an elegant means to
control cables in conference rooms, meeting rooms and personal workspaces.
They are designed to be mounted into a horizontal surface such as a conference room
table, desk or lectern in order to manage Audio/video, power and or networking cables.
AMX offers nine versions of the HPG-20 2-inch Grommet.
Product Specif ications
Installation
Tools Required
• Drill
• 2" Hole Saw (recommended brands: LENOX®, DEWALT®,
Milwaukee®)
CAUTION: This installation requires specific woodworking skills. This installation should
be performed by an experienced person, comfortable with these types of woodworking
operations. Improper installation may result in damage to the mounting surface. AMX is
not responsible for damage caused by improper installation.
Read these instructions in their entirety before beginning the installation. The
installation requires specific steps to be performed in specif ic order.
1) Select a Suitable Location For the HPG-20
Note the space requirements for installing the system (FIG. 2):
Note that the HPG-20 requires 0.2" (5mm) above the mounting surface.
FIG. 1
HPG-20 2" GROMMET
HPG-20 2-INCH GROMMETS
FG570-02-SL Matte Silver Plastic Top
FG570-02S-MB Matte Black in Silver Metal Top
FG570-02B-MB Matte Black in Black Metal Top
FG570-02S-GS Gloss Silver in Silver Metal Top
FG570-02B-GS Gloss Silver in Black Metal Top
FG570-02S-GB Gloss Black in Silver Metal Top
FG570-02B-GB Gloss Black in Black Metal Top
FG570-02S-FG Frosted in Silver Metal Top
FG570-02B-FG Frosted in Black Metal Top
HPG-20 SPECIF ICATIONS
Dimensions (HWD)
• Max above mounting surface: 1” (25mm)
• Max below mounting surface: 1.1” (28mm)
• Mounting surface footprint: 2.76” (70mm) Diameter
• Min. mounting surface thickness: 1/2" (13 mm)
• Max mounting surface thickness: 2-inch (51mm)
• Table Cutout Dimensions: 2-inch (51mm) Round Hole
Weight 6oz (.2 Kg)
Enclosure Black plastic structure with a top cap made of
plastic or metal with an acrylic inlay.

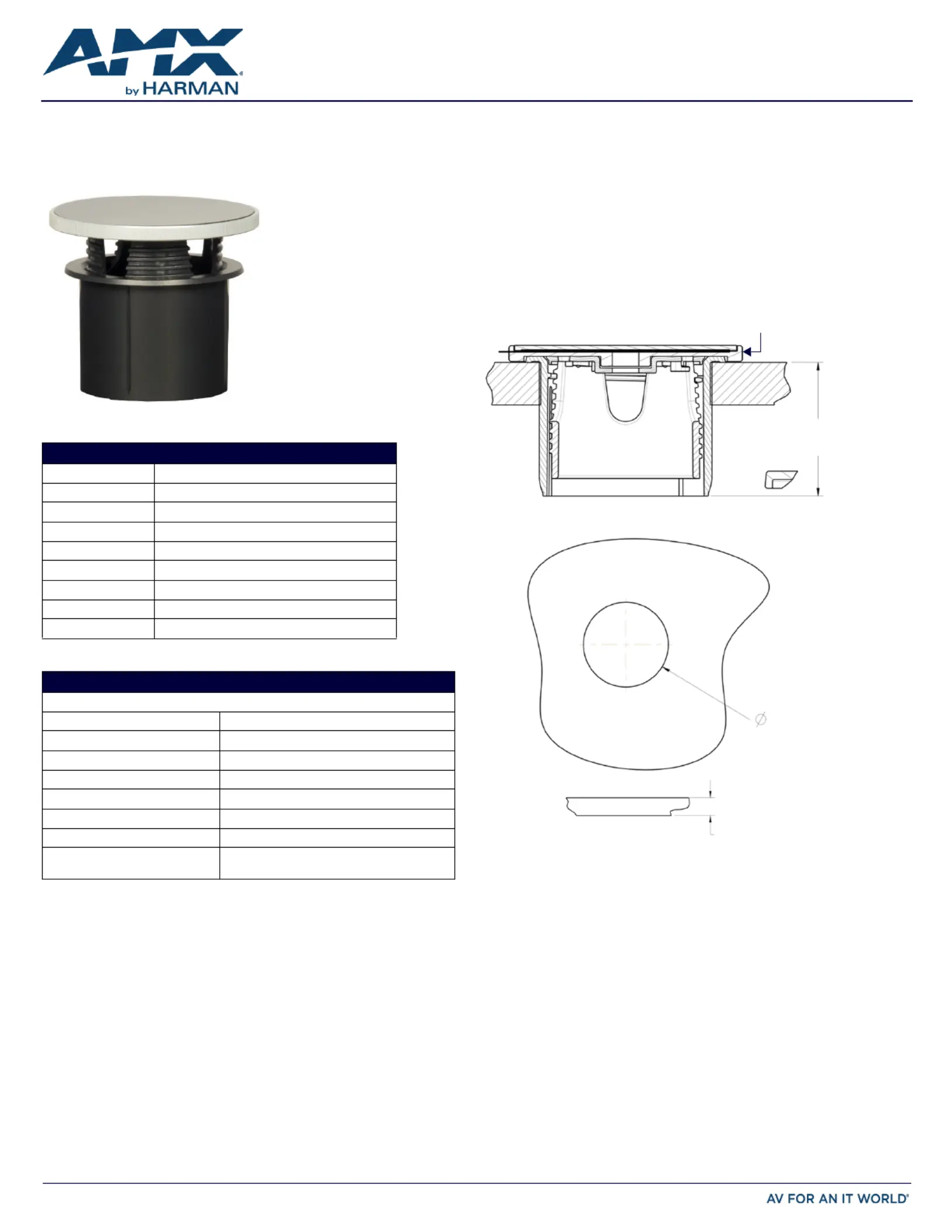

FIG. 2 HPG-20 INSTALLATION SPECIFICATIONS
1.575
[40,00]
2.000
[50, 80]
HOLE
.500
[12,70]
0.2” (5mm) above the mounting surface
