CONTENTS

GETTING STARTED ................................................................................................................................................. 2

FEEDBACK ............................................................................................................................................................... 3

WIRELESS REMOTE CONTROL ................................................................................................................................ 3

BASIC SYSTEM OPERATION .................................................................................................................................... 4

AN-130 ACCESSORIES .......................................................................................................................................... 4/5

OPERATING THE BUILT-IN UHF WIRELESS RECEIVER ........................................................................................... 6

OPERATING THE WIRELESS MICROPHONE / TRANSMITTER ................................................................................. 7

HAVING TROUBLE W/ YOU SOUND SYSTEM? ........................................................................................................ 8

AN-130 TECHNICAL SPECIFICATIONS .................................................................................................................... 8

HAVING TROUBLE W/ YOUR SOUND SYSTEM?

CONDITION POSSIBLE CAUSE

No Sound

(Power LED Not Lit)

• turn POWER switch on

• plug in power cord

No Sound

(Power LED Lights)

• check for output from source

• make sure all cables are completely plugged in

• increase volume control

• press mute button on remote

(AN-130RC only)

• turn power switch to off then back to on

(AN-130RC only)

Distorted Sound • check input cable connection

• lower input signal level

Excessive Hum or Noise • use shielded input cables

HAVING TROUBLE W/ YOUR WIRELESS SYSTEM?

(Wireless Model Only)

No Sound • confirm transmitter power switch is set to on

• turn up volume control

• plug microphone into body-pack transmitter

• turn sound system on

• replace mic/transmitter battery

• make sure hands free mic cable is fully plugged into transmitter

• turn off mute by pressing, volume up/down or mute

(AN-130RC only)

Frequent Transmitter Dropouts • replace mic/transmitter battery

• move mic/transmitter closer to AN-130

• change transmitter to different channel

NEED MORE HELP? View demonstration videos on proper system setup

& operation at our website - www.anchoraudio.com.

Anchor Audio, Inc.

Portable Sound Systems • Torrance, California

100-0154-000/A- 12/06

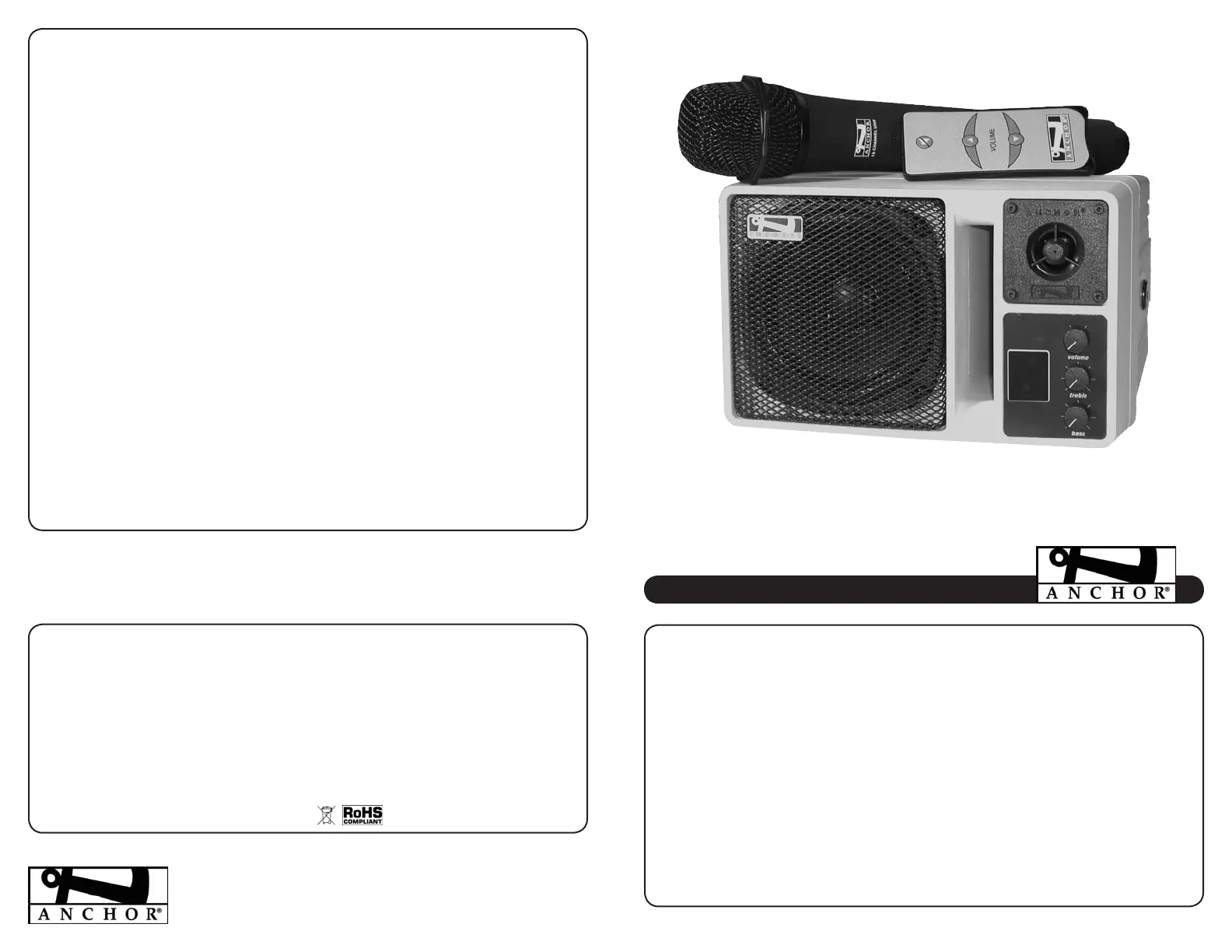

OWNER’S MANUAL

AN-130

Portable Public Address Sound System

Anchor Audio Customer Service

888-444-6077

AN-130 TECHNICAL SPECIFICATIONS

Rated Power Output 30 watts

Max SPL @ Rated Power 101 dB @ 1 meter

Frequency Response 65 Hz – 18 kHz ± 3 dB

Speaker Type 4.5” woofer, 10 mm dome tweeter

AC Power Reqs. 110 – 125 VAC, 50/60 Hz

Export Model 208 – 240 VAC, 50/60 Hz

(50W max)

Fuse Rating T 1.0A / 250V

Export Model T 0.5A / 250V

(internally mounted)

Dimensions

(HWD)

5.25 x 8.4 x 9” / 13 x 21 x 23 cm

Weight 8.5 lbs / 3.8 Kg

Inputs

Line

(2)

Hi-Z, unbalanced, RCA

(sum L+R)

Microphone Lo-Z, unbalanced, 1/4” phone

Output

Line Lo-Z, buffered, 1/4” phone

Sensitivity For Rated Output

Line -20 dBV

(100 mVrms)

Microphone -43 dBV

(7.5 mVrms)

(Specifications subject to change without notice)
