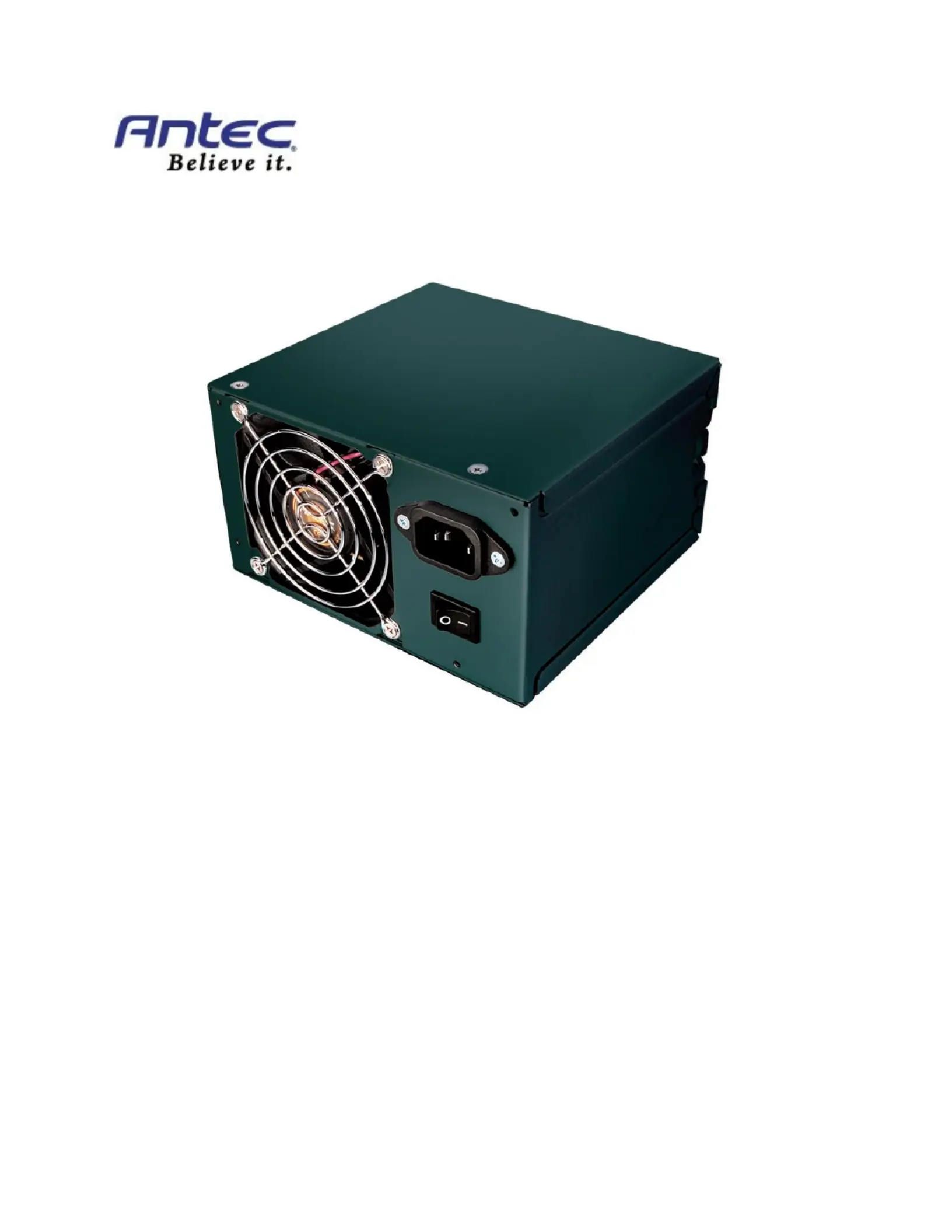

EA- G 430D REEN

P S OWER UPPLY

U M SER’S ANUAL

E W S ARTH ATTS ERIES

EA- G P S 430D REEN OWER UPPLY

T E -E PSU HE NERGY FFICIENT

Get the power you need and the low electric bill you want with Antec’s EA- 0D Green! One of the most 43

environmentally friendly power supplies on the planet, the EA- 0D Green delivers 0 watts of reliable, 43 43

connuous power while meeng the Bronze level of performance from 80® PLUS, the most widely

recognized independent standard in power supply efcienc y.

S F TANDARDS AND EATURES

The EA-380D Green PSU is compable with ATX12V v2.3 and EPS12V v2.91 specicaons. This PSU

features Universal Input, which automacally senses when you connect the power supply to any AC

power source between 100 ~ 240V, eliminang the need to set a voltage switch. The EA-380D Green

also features Acve Power Factor Correcon (Acve PFC), which improves the power factor value of the

PSU by altering the input current wave shape, helping to transmit energy across the grid.

S P YSTEM ROTECTION

A variety of industrial-grade safety circuitry will help protect your computer: OVP (Over Voltage

Protecon), SCP (Short Circuit Protecon), and OCP (Over Current Protecon). Somemes the PSU will

“latch” into a protected shutdown state. This means that you will need to power o the PSU and clear

the fault before it will funcon again. There are no user-replaceable fuses in your EA-430D Green.

TABLE ET OINT1: OCP S P

Rail

+3.3V OCP

+5V OCP

+12V OCP

(Per rail)

Max. A

31A

36A

27A

80 RONZE ERTIFICATIONPLUS® B C

80 PLUS® Bronze cercaon is among the highest independent standards in power supply eciency.

This allows the PSU to use less energy and generate less heat so it stays cooler, runs more quietly, and

lasts longer. The EA-430D Green has been cered to be at least 82% efcient at a wide range of

operang loads and will lower your operang costs while protecng the environment.

Source: 80 PLUS Vericaon and Tesng Report

D V R D UAL +12 OLT AIL ISTRIBUTION

The EA- 0D Green PSU uses dual +12 volt power rails. Dierent connectors are hooked up to separate 43

circuits to aid in the balanced distribuon of power between devices in your computer. The engineers

have allocated the rails to dierent connectors, as shown in Table 2, to prevent voltage sags in one

device due to sudden demands for power by another device.

TABLE OWER ONNECTORS AND AIL SSIGNMENTS2: P C R A

Power Connectors

Descripon

+12V Rail

24-pin (20+4) main connector

4+4 pin ATX12V / EPS12V

6-pin PCI-E connector

4 x Molex

5 x SATA

1 x Floppy

Note: No power cord included. By reusing your exisng cord, you can reduce waste and help protect the

environment.

Produktspecifikationer

Varumärke:	Antec
Kategori:	datoradapter
Modell:	EA-430D
Vikt:	1600 g
Certifiering:	RoHS, AQ3, 80 PLUS Bronze
Kompatibla produkter:	PC
Säkerhet:	UL, CUL, FCC, TÜV, CE, CB, C-tick, CCC, BSMI
Toppeffekt:	384 W
Effektivitet:	82 %
Produktens färg:	Grön
Effekt skyddsfunktioner:	Over current, Over voltage, Short circuit
Produktstorlek (BxDxH):	150 x 140 x 86 mm
Temperatur vid drift:	10 - 50 ° C
AC-inspänning:	100 - 240 V
Fläktdiameter:	80 mm
Ljudnivå Lc IEC:	- dB
Ingående ström:	4 - 8 A
Förpackningsstorlek (B x D x H):	229 x 114 x 211 mm
Vikt (imperial):	3.6 lbs
Total effekt:	430 W
Periferiska (Molex) strömkontakter (4-pin):	4
Antalet SATA strömkontakter:	5
Strömförsörjningsenhet formfaktor:	ATX
CPU strömkontakt (4 +4 pin):	Ja
Typ av kablage:	Icke-Modulär
PCI Express strömkontakter (6-polig):	1
Diskettenhet strömkontakt:	1
ATX strömkontakt (20 4 stift):	Ja
