Sida 1/10

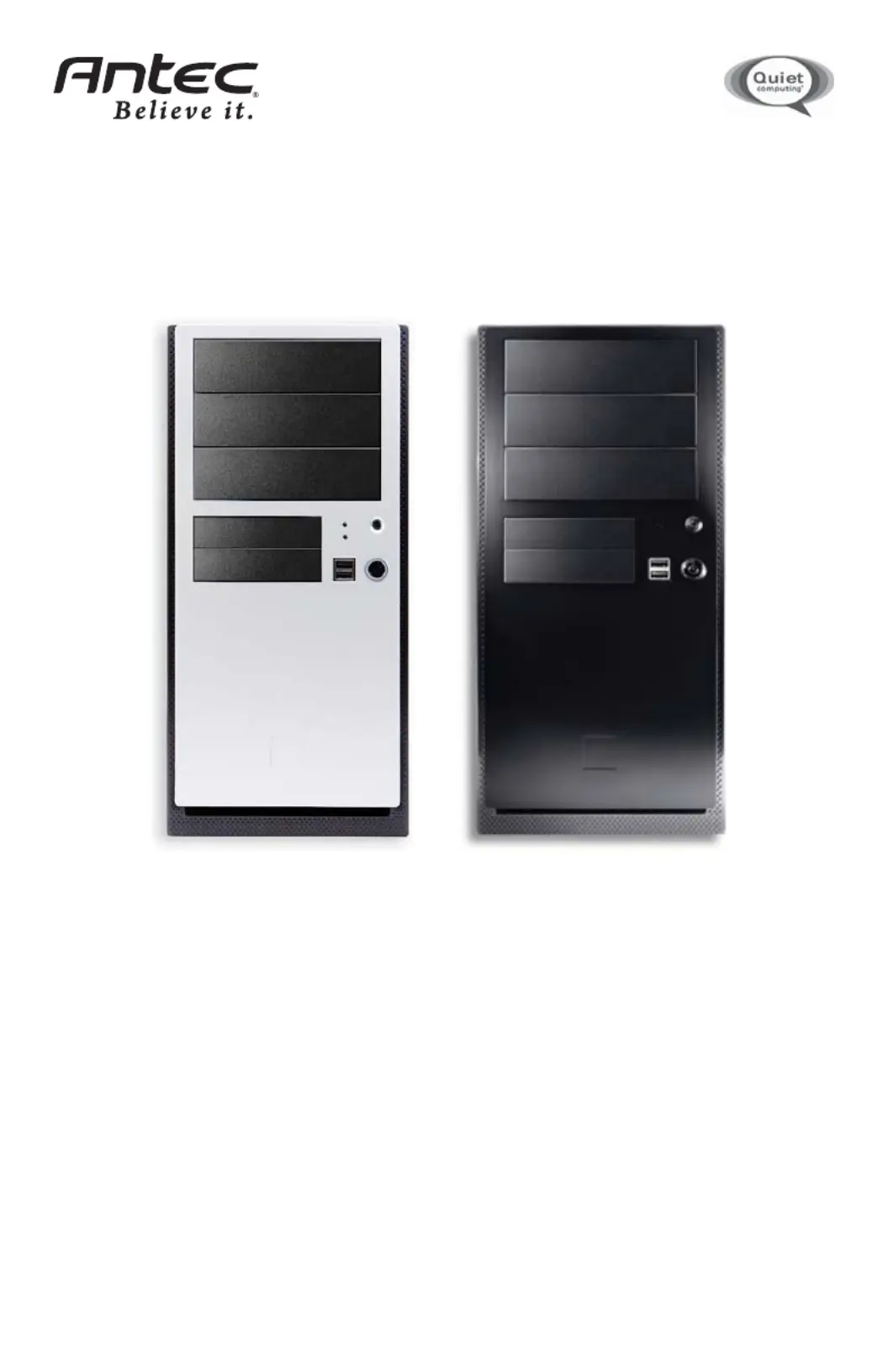

NSK 4000 II /

NSK 4480 II / NSK 4480B II

User’s Manual

Table of Contents

Introduction

1.1 Case Specifications………………...……………......………….....… 2

1.2 Diagram……………………………………………....…......…….....… 2

Hardware Installation Guide

2.1 Setting Up……….…......…............................. ........ 3...…..........

2.2 ………………………………..... …. 3Motherboard Installation ..….....

2.3 3.5” Device Installation…………………………….….. …........ 3.......

2.4 5.25” Device Installation……………….…….....…...................... 4

Connecting the Front I/O Ports

3.1 USB 2.0 Ports……………………………...……........……….....…… 4

3.2 AC’97 / HD Audio Ports......………………................. ..... 5……….

3.3 Switch and LED Connectors………………………….. ..… 5…..……...

3.4 Rewiring Motherboard Header Connectors.........……….......…… 6

Cooling System

4.1 Rear Exhaust TriCool™ Fan.…….........……...…...... ..... 6.............

4.2 Front 80mm Intake Fan……………….....…………...........…....... 7

4.3 Thermally Advantaged Chassis (TAC 2.0)……......… ........ 7……..

At Antec, we continually refine and improve our products to ensure the highest quality.

It’s possible that your new case will differ slightly from the descriptions in this manual. This isn’t a

problem; it’s simply an improvement. As of the date of publication, all features, descriptions,

and illustrations in this manual are correct.

New Solution Series User’s Manual

NSK 4000 II / NSK 4480 II / NSK 4480B II

Mini Tower Case

This case is designed to meet Intel’s Thermally Advantaged Chassis (TAC) 2.0 design

guide requirements.

While the NSK 4000 II does not offer a PSU, the NSK 4480 II and the NSK 4480B II come

with an EarthWatts 380 watt PSU. The PSU features Universal Input and Active Power

Factor Correction (Active PFC). It conforms to the ATX12V v2.2 specification and is cooled

by a single 80mm fan. Two +12V output rails deliver safer and more reliable output to

your system’s components. Higher energy efficiency reduces power consumption by up to

25%, saving you money on your electric bill. EarthWatts power supplies have achieved 80

PLUS® certification, the highest independent standard in power supply efficiency. In addition,

EarthWatts includes a variety of protective circuitry: OPP (over power protection), OVP (over

voltage protection), and SCP (short circuit protection).

The power supply comes with a main power switch. Make sure you turn the switch to the

ON ( I ) position before you boot up the computer for the first time. Normally, you won’t

need to switch to the OFF ( O ) position, since the power supply includes a soft on/off

feature. If the computer crashes and you can’t shut down using the soft switch, switch the

main power to the OFF ( O ) position, then reboot.

For models designed for sale in the European Union:

Antec power supply models feature Active Power Factor Correction (Active PFC) circuitry

in accordance with European standard regulation code EN61000-3-2. By altering the input

current wave shape, Active PFC improves the power factor of the PSU. A better power

factor increases energy efficiency, reduces heat, improves output voltage stability and

prolongs the life of your equipment.

Although care has been taken to prevent sharp edges in your Antec case, we strongly

recommend taking the time and appropriate care when working with it. Hurried or careless

motion and use of excessive force, particularly when you are working in areas you cannot

see clearly, are but a few examples of activity that should be avoided. Please use reasonable

precaution.

Disclaimer

This manual is intended only as a guide for Antec’s Computer Enclosures. For more

comprehensive instructions on installing the motherboard and peripherals, please

refer to the user’s manuals that come with those components.

Produktspecifikationer

Varumärke:	Antec
Kategori:	Computerbehuizing
Modell:	NSK 4480BII
Vikt:	8000 g
Bredd:	198.12 mm
Djup:	419.1 mm
Höjd:	421.64 mm
Ljudutgång:	Ja
Material:	Metall
Modell:	PC
Drive bays:	8
Produktens färg:	Svart
Formfaktor:	Mini Tower
Antal USB 2.0 anslutningar:	2
Nätaggregatstyp:	EarthWatts 380W, ATX12V v2.2
Ljudanslutning:	Ja
Som stöds moderkorts formfaktorer:	Mini-ITX
Externa expansionsfack:	3 x 5.25", 2 x 3.5"
Interna expansionsfack:	3 x 3.5"
Ventilationsfläkt:	1 x 120mm, 1 x 80mm
