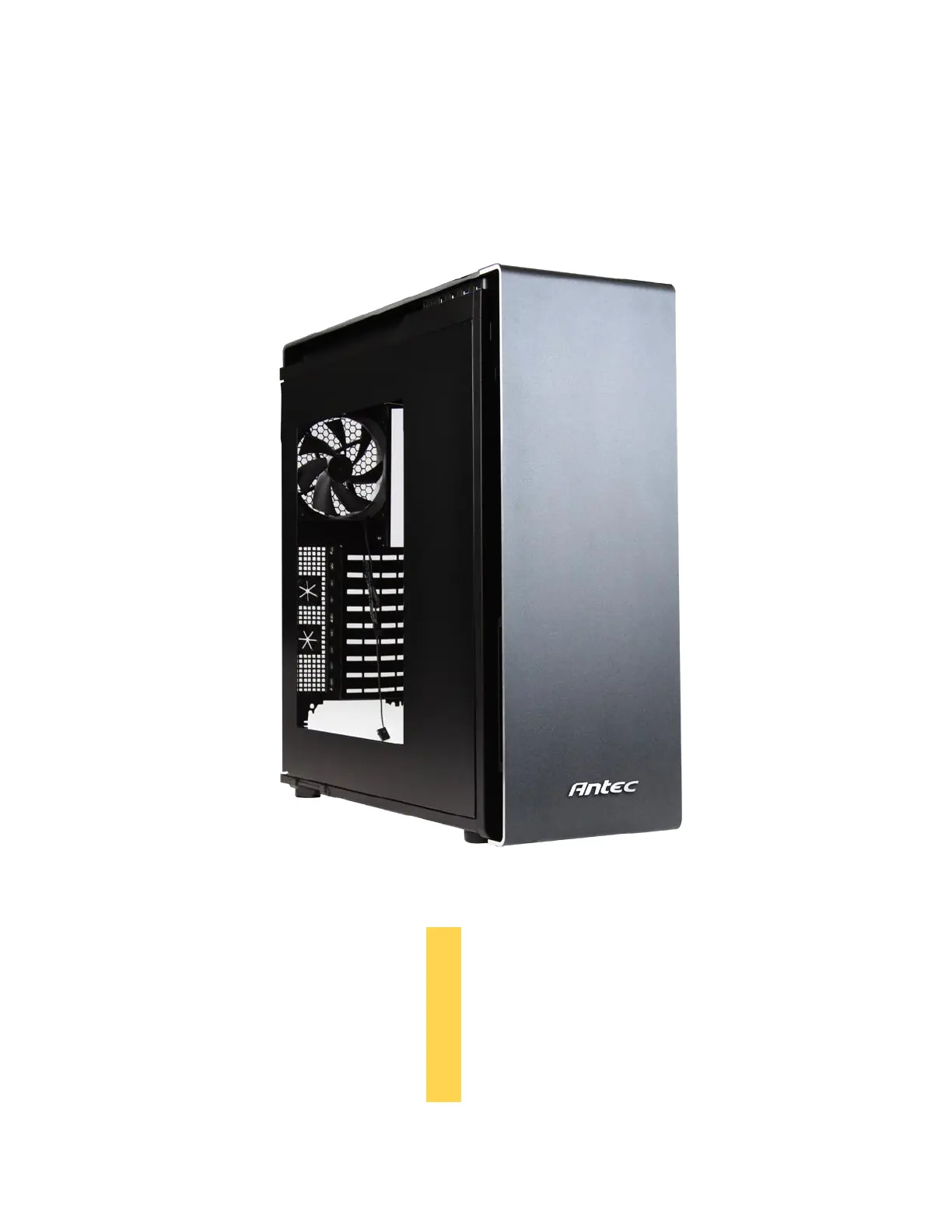

P380 User Manual

Congratulations on your purchase of the Antec P380!

With its simplicity and elegance, the P380 is a successful blend of the stylish design, sophisticated

cooling and proven Quiet Computing™ features of Antec’s award-winning Performance One enclosure

series. Like all models in the series, the P380 is equipped with double-layered noise-dampening side

panels, creating a system that is almost inaudible even when the fans are spinning at a high speed. With

roomy interior, the P380 is compatible with CEB and standard ATX motherboards and includes nine

expansion slots to support up to 18.3” long graphics cards. The P380 also offers advanced computing

features like dual power / reset button design, grommet-lined cable routing paths, elegant aluminum

front panel features two well-placed USB 3.0 and USB 2.0 ports, and audio in/out jacks. The case boasts

one slim optical drive bay, three anti-vibration 3.5"/2.5” removable drive cages (eight 3.5"/2.5” HDD

bays).

The P380 does not include a power supply. Make sure you choose a power supply that is compatible

with your computer components and has a long enough power harness to reach your motherboard and

peripheral devices. We recommend our High Current Gamer, High Current Pro or EDGE power supplies

for the latest ATX specification compliance, broad compatibility, and power savings capability.

At Antec, we continually refine and improve our products to ensure the highest quality. As such, your

new chassis may differ slightly from the description in this manual due to improvements applied for the

optimal building experience. As of November 15, 2011, all features, descriptions, and illustrations in this

manual are correct.

Disclaimer

This manual is intended only as a guide for Antec’s computer

enclosures. For more comprehensive instructions on installing the

motherboard and peripherals, please refer to the manuals that

come with those components.

Table of Contents

Section 1: Introduction

1.1 Getting to Know Your Chassis......................................................................... 5

1.2 Chassis Specifications ..................................................................................... 6

1.3 Included Screws ............................................................................................. 6

1.4 Before You Begin ........................................................................................... 7

Section 2: Hardware Installation

2.1 Setting Up ...................................................................................................... 9

2.2 Motherboard Installation ............................................................................... 10

2.3 Installing KUHLER H

O Liquid Coolers ............................................................. 11

2.4 Power Supply Installation ............................................................................... 12

2.5 Internal 3.5” / 2.5” Device Installation ........................................................... 13

2.6 Slim Optical Drive Tray Installation ................................................................. 17

2.7 Cable Management ........................................................................................ 18

Section 3: Front I/O Ports

3.1 USB 2.0 .......................................................................................................... 20

3.2 USB 3.0 .......................................................................................................... 20

3.3 AC’97 / HD Audio Ports .................................................................................. 21

3.4 Power Switch / Reset Switch / Hard Disk Drive LED Connectors ...................... 22

3.5 Rewiring Motherboard Header Connections .................................................. 22

Section 4: Cooling System

4.1 Included Fans ................................................................................................. 25

4.2 Optional Fans ................................................................................................. 26

4.3 Air Filters ....................................................................................................... 27

Produktspecifikationer

Varumärke:	Antec
Kategori:	Computerbehuizing
Modell:	Performance P380
Bredd:	223.6 mm
Djup:	557 mm
Höjd:	555 mm
Certifiering:	RoHS, AQ3
Ljudutgång:	Ja
Material:	Gjuten aluminium
Modell:	PC
Strömförsörjning ingår:	Nej
Maximal CPU-kylarhöjd:	180 mm
Maximal grafikkortslängd:	465 mm
Produktens färg:	Svart
Formfaktor:	Full Tower
Belysning:	Nej
Antal USB 2.0 anslutningar:	2
Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar:	2
Bakre fläktar installerade:	1x 120 mm
Sidoruta:	Ja
Ljudanslutning:	Ja
Hårddiskstorlek som stöds:	2.5, 3.5 "
Som stöds moderkorts formfaktorer:	ATX, CEB, EATX
Strömförsörjning plats:	Botten
Maximal främre fläktar:	2
Frontfläktdiametrar som stöds:	120,140 mm
Antal 3,5 "vikar:	8
Antalet 5,25 "fack:	1
Antal bakfläktar som stöds (max):	1
Bakre fläktdiametrar som stöds:	120 mm
Antal toppfläktar som stöds (max):	3
Toppfläktdiametrar som stöds:	120 mm
Flytande kylförmåga:	Ja
Antal interna 3,5 "platser:	8
Installerade toppfläktar:	2x 140 mm
Antal externa 5,25"-fack:	1
