Sida 1/14

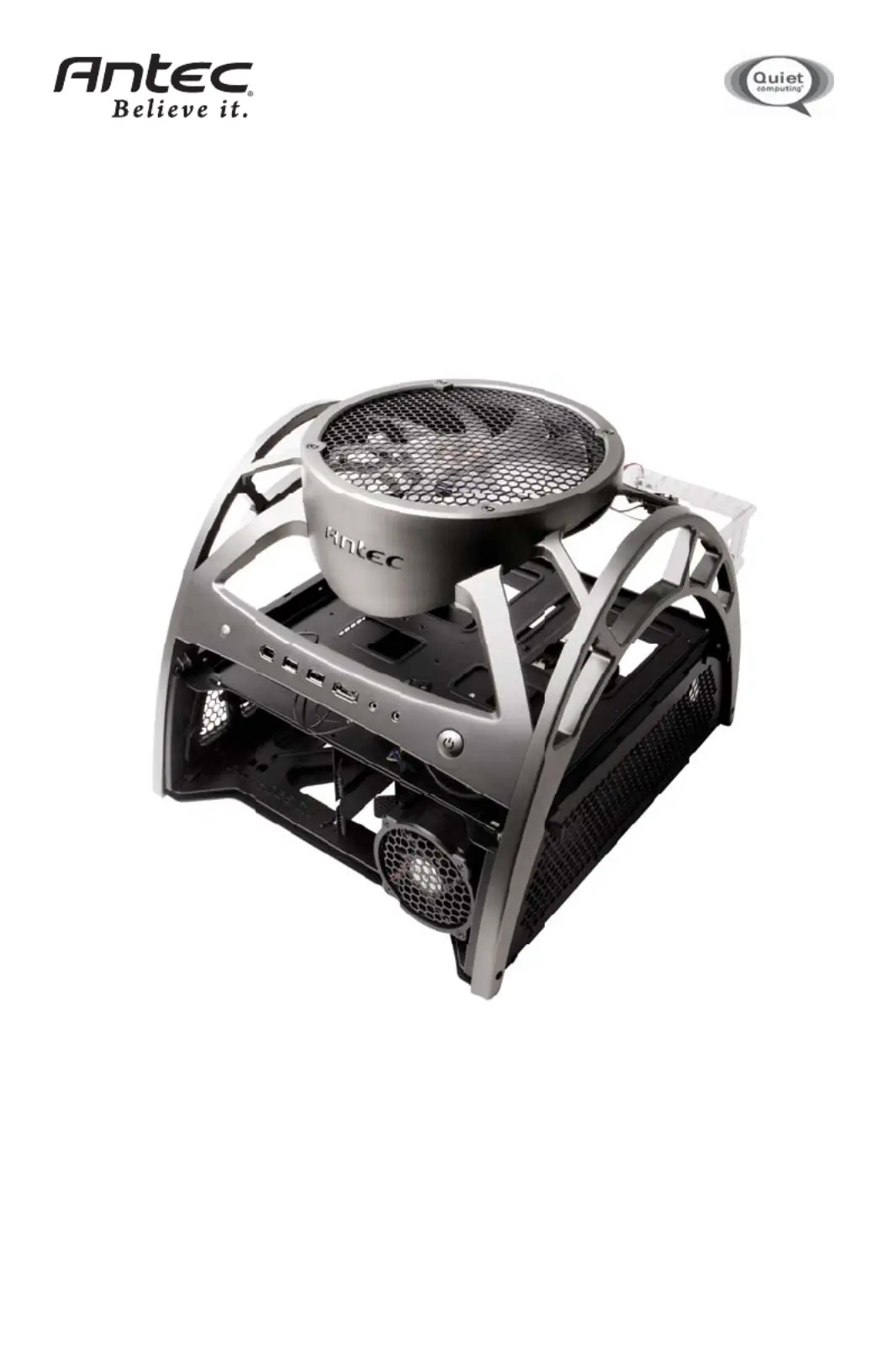

SKELETON

User’s Manual

Table of Contents

Introduction

1.1 Case Specifications………………...……………......…………… 2

1.2 Diagram……………………………………………....…......……… 2

1.3 How to Carry the Skeleton…………………………….…......…. 3

Hardware Installation Guide

2.1 Removing/Replacing the Component Tray…………......…….. 3

2.2 Removing the Motherboard Tray …………………......….……. 4

2.3 Motherboard Installation……………………………….......……. 4

2.4 Removing the Frame Side Screen Panels…………………..….. 5

2.5 Power Supply Installation…………………………….…......…... 5

2.6 5.25” Quick Release Device Installation……………….………. 6

2.7 3.5” Quick Release Device Installation…………………………. 6

2.8 3.5” Device Frame-Mounted Installation………….…………… 7

2.9 PCI Card Mounting Bar Installation……….................……….. 7

Connecting the Front I/O Ports

3.1 USB 2.0 Ports……………………………...……........…………… 8

3.2 eSATA Port………………………………...……......…..………… 8

3.3 IEEE 1394 Port…………………………….......………….…........ 8

3.4 AC’97 / HD Audio Ports......……………….................………. 9

3.5 Power Switch / Reset Switch /

Hard Disk Drive LED Connectors.........………….……………… 9

Cooling System

4.1 The Super Big Boy 250mm Multi-LED Fan.…….........……….. 10

4.2 92 mm Hard Drive Fan……………….....……………..........….. 10

4.3 Removing the 92mm Hard Drive Fan…….....………………….. 11

At Antec, we continually refine and improve our products to ensure the highest

quality. As such, it’s possible that your new case may differ slightly from the

description in this manual. This isn’t a problem; it’s simply an improvement. As of

the date of publication, all features, descriptions, and illustrations in this manual

are correct.

SKELETON User’s Manual

THINK BEYOND THE BOX

Introduction

The innovative Skeleton case by Antec is designed with an open-air system in

mind, giving you the freedom to design your ideal computing solution without the

usual limitations that come with a standard enclosure. This enclosure consists of

two major parts – the Component Tray and the Frame. The Component Tray is

the main structure holding motherboard, 5.25” devices, HDD and power supply.

It can slide in and out from the Frame for component installation.

The Skeleton comes without a power supply. Make sure you choose a power

supply that is compatible with your computer components. We recommend our

Signature, TruePower Quattro, or NeoPower power supplies for the latest ATX

specification compliance, broad compatibility, and power savings capability.

The Antec Skeleton is 3-way SLI ready, meaning that you have enough space in

your enclosure to install up to three 11” PCI-E graphics cards.

At Antec, we continually refine and improve our products to ensure the highest

quality. As such, your new case may differ slightly from the description in this

manual. This isn’t a problem; it’s simply an improvement. As of the date of publi-

cation, all features, descriptions, and illustrations in this manual are correct.

Note: Skeleton comes without any panels or cover. Antec does not recommend

that users place any liquid-containing items (drinks, ice cream, candles, coffee,

perfume, etc.) near it. It is highly recommend that you keep your pets or children

away from it.

Disclaimer

This manual is intended only as a guide for Antec’s Computer Enclosures. For more

comprehensive instructions on installing the motherboard and peripherals, please

refer to the user’s manuals that come with those components.

Produktspecifikationer

Varumärke:	Antec
Kategori:	Computerbehuizing
Modell:	Skeleton
Vikt:	9700 g
Bredd:	376 mm
Djup:	419 mm
Höjd:	330 mm
Ljudutgång:	Ja
Material:	Metall
Modell:	PC
Expansionsplatser:	7
Formfaktor:	Skrivbord
Seriella portar:	1
Antal USB 2.0 anslutningar:	2
Ljudanslutning:	Ja
Som stöds moderkorts formfaktorer:	ATX
Anta IEEE 1394/Firewire anslutningar:	1
Externa expansionsfack:	2 x 5.25”
Interna expansionsfack:	2 x 3.5”
Ventilationsfläkt:	1x 250mm, 1x 92mm
