Sida 1/72

www.aoc.com

P237

0SD/P2370SH

(LED Backlight)

LCD Monitor User Manual

Safety ........................................................................................................................................................................4

National Conventions .........................................................................................................................................4

Power ................................................................................................................................................................5

Installation..........................................................................................................................................................6

Cleaning.............................................................................................................................................................7

Other ..................................................................................................................................................................8

Setup ........................................................................................................................................................................9

Contents of Box .................................................................................................................................................9

Setup Stand .......................................................................................................................................................10

Adjusting Viewing Angle .....................................................................................................................................11

Connecting the Monitor ......................................................................................................................................

Adjusting ................................................................................................................................................................... 14

Setting Optimal Resolution ................................................................................................................................ 14

Windows Vista .............................................................................................................................................16

Window

s XP ................................................................................................................................................18

Windows ME/2000 .......................................................................................................................................19

Windows 8 ...................................................................................................................................................14

Hotkeys

..............................................................................................................................................................20

LED Indicator ................................................................................................................................................... 36

Driver ........................................................................................................................................................................ 37

Monitor Driver ..................................................................................................................................................

Windows 2000 ..........................................................................................................................................

Windows ME .............................................................................................................................................

Window

s XP .............................................................................................................................................

Window

s Vista ..........................................................................................................................................

s 7 ................................................................................................................................................

Window

s 8 ................................................................................................................................................

i-Menu ................................

..............................................................................................................................

e-Saver ................................

............................................................................................................................

Screen+ ...........................................................................................................................................................

Troubleshoot ...........................................................................................................................................................

Specification............................................................................................................................................................

General Specification .......................................................................................................................................

Preset Display Modes ......................................................................................................................................

Pin Assignments .............................................................................................................................................. 59

Plug and Play ................................................................................................................................................... 60

Regulation ...............................................................................................................................................................

FCC Notice ...................................................................................................................................................... 61

WEEE Declaration .......................................................................................................................

................

....

OSD Setting

......................................................................................................................................................

Luminanc

..................................................................................................................................................

Image Setup

.............................................................................................................................................

..22

Color Setup

............................................................................................................................................... 27

Picture Boost

............................................................................................................................................ 29

OSD Setup

............................................................................................................................................... 31

Extra

......................................................................................................................................................... 33

Exit

............................................................................................................................................................

EPA Energy Star .......................................................................................................................... 63

EPEAT Declaration ...................................................................................................................... 64

Service ................................

............................................................................................................................. 65

Warranty Statement for North & South America (excluding Brazil) ...........................................................70

.............

....

...

............

....

.....

WEEE Declaration for India ......................................................................................................... 62

.............

....

...

RoHS Declaration for India............................................................................................................................... 62

Warranty Statement for Europe........................................................................................................................ 65

Warranty Statement for Middle East and Africa (MEA) .................................................................................... 67

AOC International (Europe) B.V. ...................................................................................................................... 69

TCO DOCUMENT ........................................................................................................................................... 72

Safety

National Conventions

The following subsections describe notational conventions used in this document.

Notes, Cautions, and Warnings

Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type.

These blocks are notes, cautions, and warnings, and they are used as follows:

NOTE: A NOTE indicates important information that helps you make better use of your computer system.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the

problem.

WARNING: A WARNING indicates the potential for bodily harm and tells you how to avoid the problem. Some

warnings may appear in alternate formats and may be unaccompanied by an icon. In such cases, the specific

presentation of the warning is mandated by regulatory authority.

Power

The monitor should be operated only from the type of power source indicated on the label. If you are not sure

of the type of power supplied to your home, consult your dealer or local power company.

The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug

will fit only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire

plug, have an electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat

the safety purpose of the grounded plug.

Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect

the monitor from damage due to power surges.

Do not overload power strips and extension cords. Overloading can result in fire or electric shock.

The wall socket shall be installed near the equipment and shall be easily accessible.

Installation

Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a

person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by

the manufacturer or sold with this product. Follow the manufacturer’s instructions when installing the product and

use mounting accessories recommended by the manufacturer. A product and cart combination should be moved

with care.

Never push any object into the slot on the monitor cabinet. It could damage circuit parts causing a fire or

electric shock. Never spill liquids on the monitor.

Do not place the front of the product on the floor.

If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit

instructions.

Leave some space around the monitor as shown below. Otherwise, air-circulation may be inadequate hence

overheating may cause a fire or damage to the monitor.

See below the recommended ventilation areas around the monitor when the monitor is installed on the wall or on

the stand:

Cleaning

Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of

strong-detergent which will cauterize the product cabinet.

When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too

rough as it will scratch the screen surface.

Please disconnect the power cord before cleaning the product.

Other

If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and

contact a Service Center.

Make sure that the ventilating openings are not blocked by a table or curtain.

Do not engage the LCD monitor in severe vibration or high impact conditions during operation.

Do not knock or drop the monitor during operation or transportation.

For display with glossy bezel the user should consider the placement of the display as the bezel may cause

disturbing reflections from surrounding light and bright surfaces.

Setup

Contents of the Box

Power Cable Analog Cable

Monitor

Monitor Base

CD Manual

Stand

CableDVI

Base

Audio Cable

HDMI Cable

Setup Stand

Please setup or remove the Stand following the steps as below.

Setup:

Remove:

Adjusting Viewing Angle

For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your

own preference.

Hold the stand so you will not topple the monitor when you change the monitor's angle.

1> You are able to adjust the monitor's angle from -5° to 25

°.

NOTE:

Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen.

Do not adjust the viewing angle over 10 degrees in order to avoid damage.

Do not put your hand close to the gap between the monitor and the base to avoid the injury when adjusting

the viewing angle.

-5

Connecting the Monitor

Cable Connections In Back of Monitor and Computer:

To protect equipment, always turn off the PC and LCD monitor before connecting.

Turn on your monitor and computer.

If your monitor displays an image, installation is complete. If it does not display an image, please refer

Troubleshooting.

1 Power

Analog (D-Sub 15-Pin VGA cable)

DVI

4 HDMI

5 Audio in

6 Earphone out

1 Connect the power cable to the AC port on the back of the monitor.

2 Conne

ct one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the

computer's D-Sub port.

(Optional –Requires a video card with DVI port)Connect one end of the DVI cable to the back of the monitor

and connect the other end to the computer’s DVI port.

(Optional – Requires a video card with HDMI port) - Connect one end of the HDMI cable to the back of the

monitor and connect the other end to the computer’s HDMI port.

P2370SD

P2370SH

Wall Mounting

Preparing to Install An Optional Wall Mounting Arm.

This monitor can be attached to a wall mounting arm you purchase separately. Disconnect power before this

procedure. Follow these steps:

1 Remove the base.

2 Follow the manufacturer's instructions to assemble the wall mounting arm.

3 Place the wall mounting arm onto the back of the monitor. Line up the holes of the arm with the holes in the

back of the monitor.

4 Insert the 4 screws into the holes and tighten.

5 Reconnect the cables. Refer to the user's manual that came with the optional wall mounting arm for

instructions on attaching it to the wall.

Noted : VESA mounting screw holes are not available for all models, please check with the dealer or official

department of AOC.

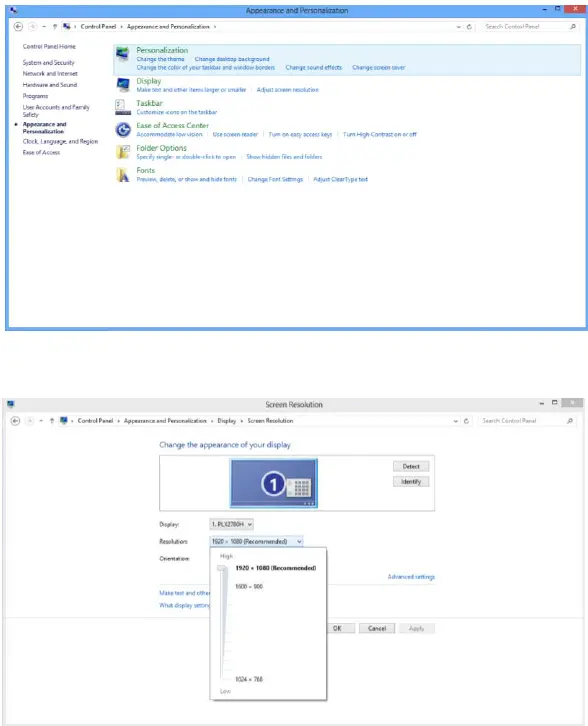

Windows 8

For Windows 8:

1. Right click and click All apps at the bottom-right of the screen.

2. Set the “View by” to “Category”.

3. Click Appearance and Personalization.

Adjusting

Setting Optimal Resolution

4. Click DISPLAY.

5. Set the resolution SLIDE-BAR

to 1920x1080.

Windows Vista

For Windows Vista:

1 Click START.

2 Click CONTROL PANEL.

3 Click Appearance and Personalization.

4 Click Personalization

5 Click Display Settings.

6 Set the resolution SLIDE-BAR

1920x1080.

Windows XP

For Windows XP:

1 Click START.

2 Click SETTINGS.

3 Click CONTROL PANEL.

4 Click Appearance and Themes.

5 Double click DISPLAY.

6 Click SETTINGS.

7 Set the resolution SLIDE-BAR

Windows ME/2000

For Windows ME/2000:

1 Click START.

2 Click SETTINGS.

3 Click CONTROL PANEL.

4 Double click DISPLAY.

5 Click SETTINGS.

6 Set the resolution SLIDE-BAR

to 1920x1080.

Hotkeys

Power

Press the Power button to turn on/off the monitor.

Auto / Exit / Source hot key

When there is no OSD, press Auto/Source button continuously about 2 second to do auto configure.

When the OSD is closed, press Source button will be Source hot key function. Press Source button continuously to

select the input source showed in the message bar, press Menu/Enter button to change to the source selected.

Menu/Enter

Press to display the OSD or confirm the selection.

Source/Auto/Exit

4 Menu/Enter

5 Power

Clear Vision/

4:3 or wide /

4:3 or wide image ratio /

When there is no OSD, press hotkey continuously to change 4:3 or wide image ratio. (If the product screen size

is 4:3 or input signal resolution is wide format, the hot key is disable to adjust. )

Source/Auto/Exit

4 Menu/Enter

5 Power

Volume

P2370SD

P2370SH

ECO(DCR)

Eco (DCR

Press the Eco key continuously to select the Eco mode of brightness and DCR

on when there is no OSD.

( Eco mode hot key may not be available in all models).

Volume /

When there is no OSD,Press Volume button to active volume adjustment bar,Press or + to adjust volume(Only for

the models with speakers)

(Only

for

the

models

with

dual or more inputs).

(Only

for

the

models

with

dual or more inputs).

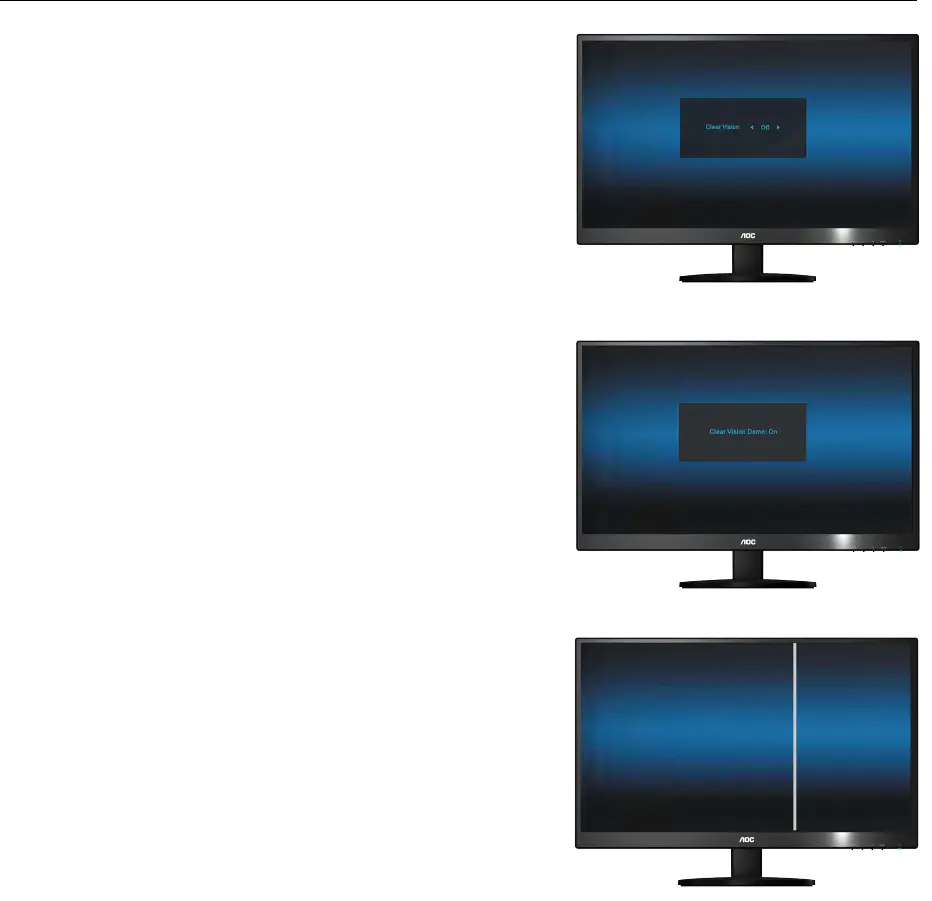

Clear Vision/-

1. When there is no OSD, Press the “-

button to activate

Clear Vision

2. Use the “ ” or “-

“buttons to select between weak,

medium, strong,

or off settings.

Default setting is

always “off”

Clear Vision function will provides the best image

viewing

experience by converting low

resolution and

blurry images

into

clear and vivid images.

Press and hold “ - ” button for 5 seconds ,the vertical line

will display while no vertical line

in screen;

Press and hold

“

”

button

for

5 seconds ,the vertical line will disappear while

the

vertical

line

moving

screen;

Press

the

Button

turn

the monitor clear vision Off /

Strong / Medium / Weak,

the

left

vertical

line

will

the

effect demo and right of

vertical line

will

clear vision off

;

When display picture in screen will be

more obviously.

”

“

”

OSD Setting

Basic and simple instruction on the control keys.

1) Press the MENU button to activate the OSD window.

2) Press or to navigate through the functions. Once the desired function is highlighted, press the

to navigate through the sub-menu functions. Once the desired

function is highlighted, press MENU button to activate it.

3) Press to change the settings of the selected function. Press AUTO to exit. If you want to adjust any

other function, repeat steps 2-3.

4) OSD Lock Function: To lock the OSD, press and hold the MENU button while the monitor is off and then press

power button to turn the monitor on. To un-lock the OSD - press and hold the MENU button while the monitor

is off and then press power button to turn the monitor on.

Notes:

1) If the product has only one signal input, the item of "Input Select" is disable to adjust.

2) If the product screen size is 4:3 or input signal resolution is wide format, the item of "Image Ratio" is disable to

adjust.

non-standard

ECO,

DCR

DCB,

Picture Boost is activated

the

other

three

One

functions

are

turned

off

accordingly.

- +

MENU button to activate it . press

- +

Luminance

1. Press MENU (Menu) to display menu.

2. Press

to select (Luminance), and press MENU to enter.

3. Press

to select submenu, and press

MENU to enter

- +

5. Press AUTO to exit.

Brightness 0-100 Backlight Adjustment.

Contrast 0-100 Contrast from Digital-register.

Eco mode

Standard Standard Mode.

Text Text Mode.

Internet Internet Mode.

Game Game Mode.

Movie Movie Mode.

Sports Sports Mode.

Gamma

Gamma1 Adjust to Gamma 1.

Gamma2 Adjust to Gamma 2.

Gamma3 Adjust to Gamma 3.

DCR

Off

Disable dynamic contrast ratio.

Enable dynamic contrast ratio.

Overdrive

Weak

Medium

Strong

Off

DPS

Off

Adjust the response time

(P2370SH)

4. Press to adjust.



- +

Dynamic Power saving

Image Setup

1. Press MENU (Menu) to display menu.

2. Press to select (Image Setup), and press

MENU to enter.

3. Press to select submenu, and press

MENU to enter.



- +

Color Setup

1. Press MENU (Menu) to display menu.

2. Press to select (Color Setup), and press

MENU to enter.

3. Press to select submenu, and press

MENU to enter.



- +

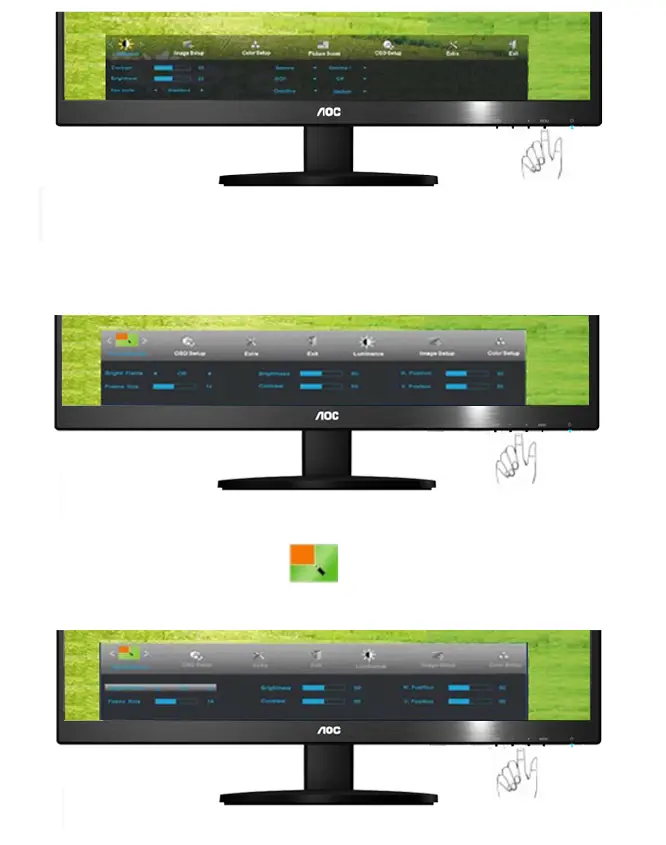

Picture Boost

1. Press MENU (Menu) to display menu.

2. Press to select (Picture Boost), and press

MENU to enter.

3. Press

to select submenu, and press

MENU to enter.



- +

Extra

1. Press

MENU (Menu) to display menu.

2. Press to select (Extra), and press

MENU to enter.

3. Press to select submenu, and press MENU to enter.



- +

4. Press to adjust.

5. Press AUTO to exit.



Input Select

Auto Config yes or no Auto adjust the picture to default

Image Ratio wide or 4:3 Select wide or 4:3 format for display

DDC-CI yes or no Turn ON/OFF DDC-CI Support

Off Timer 0~24hours Select timing to turn off the monitor.

Information

Show

the

information

the

main

image and

sub-image source

Reset

Reset the menu to default

yes or no

(

P2370SH

)

- +

Auto / Analog / DVI

Auto / Analog / DVI / HDMI

Select input signal source.(P2370SD

)

Select input signal source.

LED Indicator

Status

LED Color

Full Power Mode

Green

Active-off Mode

Orange

Driver

Monitor Driver

Windows 8

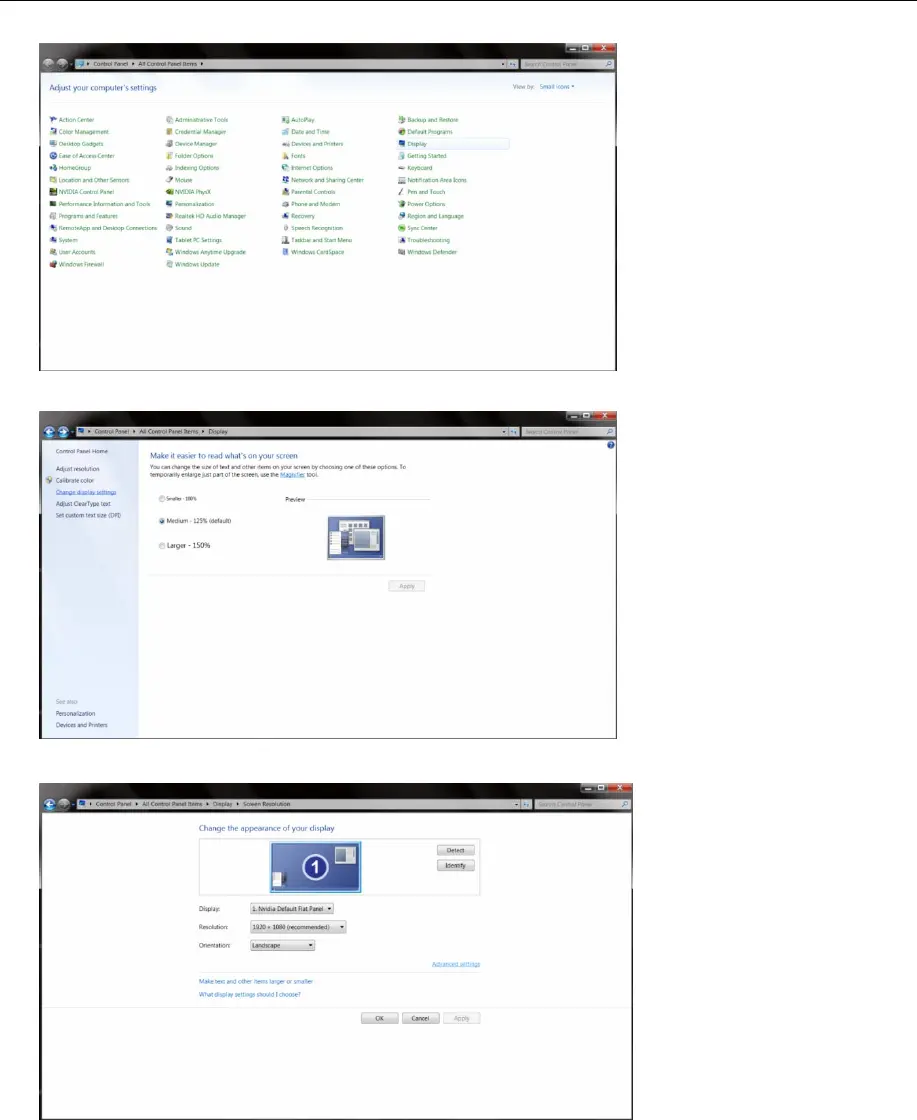

1. Start Windows® 8

2. Right click and click All apps at the bottom-right of the screen.

3. Click on the “Control panel” icon

4. Set the “View by” to “Large icons” or “Small icons”.

5. Click on the “Display” icon.

6. Click on the “Change display settings” button.

7. Click the “Advanced Settings” button.

8. Click the “Monitor” tab and then click the “Properties” button.

12. Click the “Have Disk” button. Click on the “Browse” button and navigate to the following directory:

X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive).

13. Select the "xxx.inf" file and click the “Open” button. Click the “OK” button.

14. Select your monitor model and click the “Next” button. The files will be copied from the CD to your hard disk

drive.

15. Close all open windows and remove the CD.

16. Restart the system. The system will automatically select the maximum refresh rate and corresponding Color

Matching Profiles.

Windows 2000

1. Start Windows® 2000

2. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'.

3. Double click on the 'Display' Icon.

4. Select the 'Settings' tab then click on 'Advanced...'.

5. Select 'Monitor'

- If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation.

- If the 'Properties' button is active. Click on 'Properties' button. Please follow the steps given below.

6. Click on 'Driver' and then click on 'Update Driver...' then click on the 'Next' button.

7. Select 'Display a list of the known drivers for this device so that I can choose a specific driver', then click on 'Next'

and then click on 'Have disk...'.

8. Click on the 'Browse...' button then select the appropriate drive F: ( CD-ROM Drive).

9. Click on the 'Open' button, then click on the 'OK' button.

10. Select your monitor model and click on the 'Next' button.

11. Click on the 'Finish' button then the 'Close' button.

If you can see the 'Digital Signature Not Found' window, click on the 'Yes' button.

Windows ME

1. Start Windows® Me

2. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'.

3. Double click on the 'Display' Icon.

4. Select the 'Settings' tab then click on 'Advanced...'.

5. Select the 'Monitor' button, then click on 'Change...' button.

6. Select 'Specify the location of the driver(Advanced)' and click on the 'Next' button.

7. Select 'Display a list of all the drivers in a specific location, so you can choose the driver you want', then click on

'Next' and then click on 'Have Disk...'.

8. Click on the 'Browse...' button, select the appropriate drive F: ( CD-ROM Drive) then click on the 'OK' button.

9. Click on the 'OK' button, select your monitor model and click on the 'Next' button.

10. Click on 'Finish' button then the 'Close' button.

Windows XP

1. Start Windows® XP

2. Click on the 'Start' button and then click on 'Control Panel'.

3. Select and click on the category ‘Appearance and Themes’

4. Click on the 'Display' Item.

5. Select the 'Settings' tab then click on the 'Advanced' button.

6. Select 'Monitor' tab

- If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation.

- If the 'Properties' button is active, click on 'Properties' button.

Please follow the steps below.

7. Click on the 'Driver' tab and then click on 'Update Driver...' button.

8. Select the 'Install from a list or specific location [advanced]' radio button and then click on the 'Next' button.

9. Select the 'Don't Search. I will choose the driver to install' radio button. Then click on the 'Next' button.

10. Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive F:

(CD-ROM Drive).

11. Click on the 'Open' button, then click the 'OK' button.

12. Select your monitor model and click on the 'Next' button.

- If you can see the 'has not passed Windows® Logo testing to verify its compatibility with Windows® XP' message,

please click on the 'Continue Anyway' button.

13. Click on the 'Finish' button then the 'Close' button.

14. Click on the 'OK' button and then the 'OK' button again to close the Display Properties dialog box.

Windows Vista

1. Click "Start " and "Control Panel". Then, double-click on "Appearance and Personalization".

2. Click "Personalization" and then "Display Settings".

3. Click "Advanced Settings...".

4. Click "Properties" in the "Monitor" tab. If the "Properties" button is deactivated, it means the configuration for your

monitor is completed. The monitor can be used as is.

If the message "Windows needs..." is displayed, as shown in the figure below, click "Continue".

5. Click "Update Driver..." in the "Driver" tab.

6. Check the "Browse my computer for driver software" checkbox and click "Let me pick from a list of device drivers

on my computer".

7. Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive

F:\Driver (CD-ROM Drive).

8. Select your monitor model and click on the 'Next' button.

9. Click "Close" → "Close" → "OK" → "OK" on the following screens displayed in sequence.

7.Click the “Driver” tab.

8. Open the "Update Driver Software-Generic PnP Monitor" window by clicking on “Update Driver... “and then

click the "Browse my computer for driver software" button.

9. Select "Let me pick from a list of device drivers on my computer".

10. Click the “Have Disk” button. Click on the “Browse” button and navigate to the following directory:

X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive).

11. Select the "xxx.inf" file and click the “Open” button. Click the “OK” button.

12. Select your monitor model and click the “Next” button. The files will be copied from the CD to your hard disk

drive.

13. Close all open windows and remove the CD.

14. Restart the system. The system will automatically select the maximum refresh rate and corresponding Color

Matching Profiles.

Monitor Is Stuck In Active

Off-Mode"

The Computer Power Switch should be in the ON position.

The Computer Video Card should be snugly fitted in its slot.

Make sure the monitor's video cable is properly connected to the computer.

Inspect the monitor's video cable and make sure no pin is bent.

Make sure your computer is operational by hitting the CAPS LOCK key on

the keyboard while observing the CAPS LOCK LED. The LED should either

turn ON or OFF after hitting the CAPS LOCK key.

Missing one of the primary

colors (RED, GREEN, or

BLUE)

Inspect the monitor's video cable and make sure that no pin is damaged.

Make sure the monitor's video cable is properly connected to the computer.

Screen image is not centered

or sized properly

Adjust H-Position and V-Position or press hot-key (Power/AUTO).

Picture has color defects

(white does not look white)

Adjust RGB color or select desired color temperature.

Horizontal or vertical

disturbances on the screen

Use Windows 95/98/2000/ME/XP shut-down mode Adjust CLOCK and

FOCUS.

Press to auto-adjust.

Environmental

Temperature:

Operating

Non-Operating

Humidity:

Operating 10% to 85% (non-condensing)

Non-Operating 5% to 93% (non-condensing)

ltitude:

Operating

Non-Operating 0~ 12192m (0~ 40000 ft )

000m

(0~

)5 1 404

0°C to 40°C

-25°C to 55°C

Produktspecifikationer

Varumärke:	AOC
Kategori:	bildskärm
Modell:	P2370SD
Höjd:	435 mm
Förpackningens bredd:	608 mm
Skärm diagonal:	23 "
Upplösning:	1920 x 1080 pixlar
Pekskärm:	Nej
Videolägen som stöds:	1080p
Antal färger:	16,78 miljoner färger
DVI-port:	Ja
Inbyggda högtalare:	Nej
Certifiering:	GOST
HDCP:	Ja
Grafikupplösningar som stöds:	1920 x 1080 (HD 1080)
Bildförhållande:	16:9
Kontrastförhållande (dynamisk):	50000000:1
Inbyggd kamera:	Nej
Vikt (med stativ):	3620 g
Typ av bakgrundsbelysning:	W-LED
Tunn klient installerad:	Nej
Medeltid mellan fel (MTBF):	50000 h
Pixelfrekvens:	170 MHz
Lutningsvinkel:	-6.5 - 25 °
Produktens färg:	Svart
HD-typ:	Full HD
Betraktningsvinkel (horisontell):	178 °
Lutningsjustering:	Ja
Bredd (utan stativ):	546.7 mm
Höjd (utan stativ):	334.7 mm
Vikt (utan stativ):	3620 g
Skärmtyp:	LED
VESA-fäste:	Ja
Låddjup:	119 mm
Vikt inkl. förpackning:	4960 g
Djup (utan stativ):	53.1 mm
Paneltyp:	PLS
Strömförbrukning (vanlig):	27 W
Extern strömadapter:	Nej
Hållbarhetscertifiering:	RoHS, EPEAT Silver
AC-inspänning:	100 - 240 V
3D kompatibilitet:	Nej
OSD-språk:	CHI (SIMPL), CHI (TR), CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE
Växelström Frekvens:	50 - 60 hz
På / av-knapp:	Ja
Displaytyp:	LED
Strömförbrukning i vänteläge:	0.5 W
Kontrastförhållande (medel):	1000:1
Native bildförhållande:	16:9
Max uppdateringsfrekvens:	60 hz
Plug & Play-kompatibel:	Ja
Produktvikt (oz):	Nej
Svarstid (medel):	7 ms
Ljusstyrka (normal):	250 cd/m²
Synfältsvinkel (vertikal):	178 °
Kvalitet på VGA (D-Sub) porten:	1
Antal DVI-D anslutningar:	1
Inbyggd TV mottagare:	Nej
Gränsssnitt för panelmontering:	100 x 100 mm
Vertikalt sökområde:	50 - 76 hz
Horisontellt sökområde:	30 - 83 kHz
Horisontell avsökningsfrekvens:	30 - 83 kHz
Vertikal avsökningsfrekvens:	50 - 76 hz
Bildstorlek diagonalt:	584 mm
Skärmgränssnitt (OSD):	Ja
Antal OSD språk:	16
Bildpunktavstånd:	0.265 x 0.265 mm
Bildstorlek horisontalt:	509.18 mm
Bildstorlek vertikalt:	286.42 mm
Höjdjustering:	Nej
Ström märkning:	1.5 A
