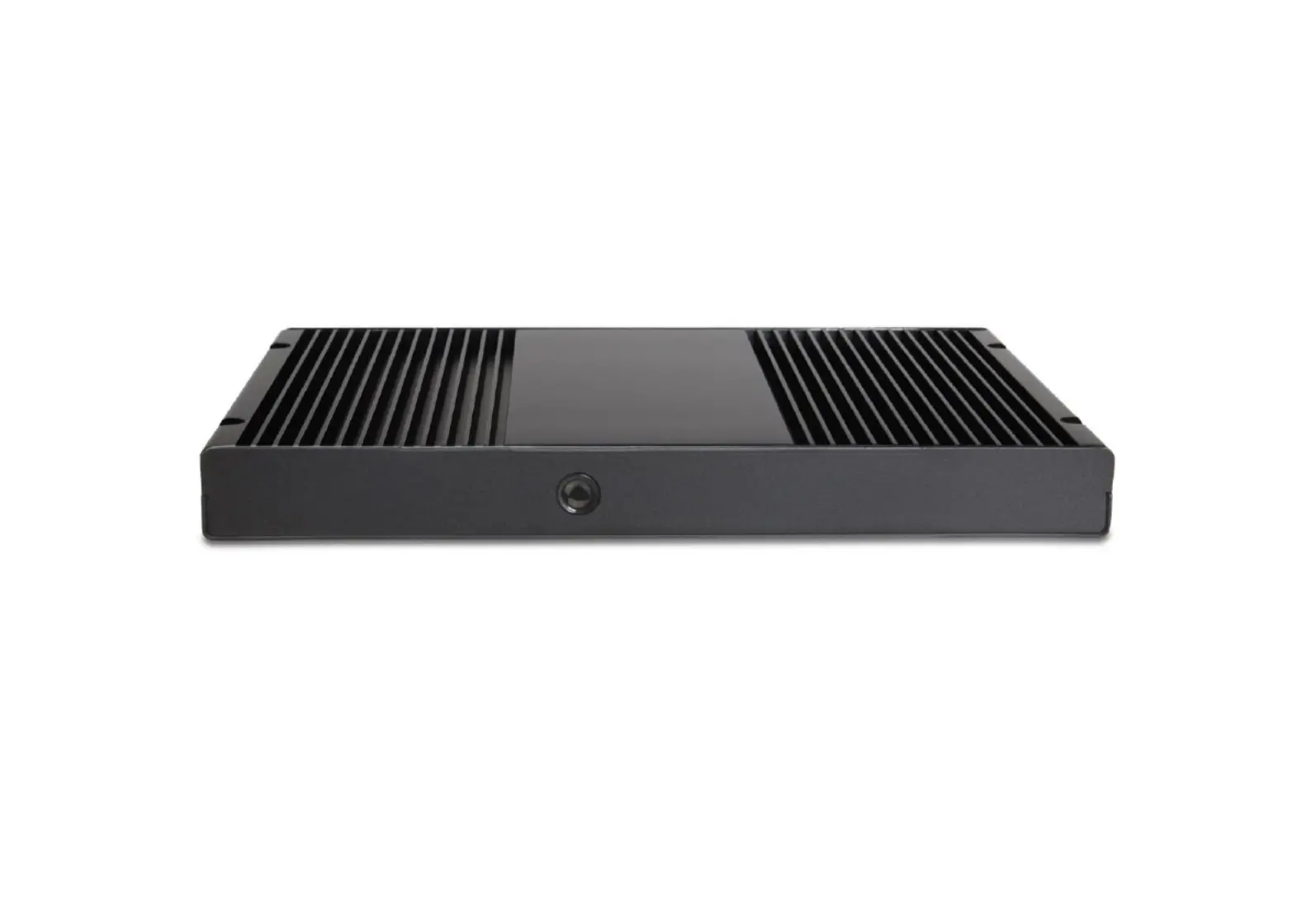

Personal Computer User Guide

for DEX5350 Series

Disposal Instruction (US)

For better protection of our earth, please don't throw this electronic device into municipal trash bin when discarding.

To minimize pollution and ensure utmost protection of the global environment, please recycle the product. For more

information about the collection and recycling of Waste Electrical and Electronic Equipment (WEEE), you are invited to visit

our homepage at www.aopen.com under “Green Products”

廃棄上の指

廃棄上の指廃棄上の指示

示

示示

より良い地球保護のために、電子機器を廃棄処分にする時は、ゴミ箱に捨てないで下さい。汚染を最小限に抑え、

地球環境の最大限の保護のために、製品をリサイクルして下さい。廃電気電子機器の回収とリサイクル (WEEE)

についての情報は、弊社ホームページ www.aopen.com Green Products の“ ”（環境に優しい製品）をご覧下さい。

廢棄及回收

廢棄及回收廢棄及回收處理

處理

處理處理

為了保護環境，請勿將本產品當作一般廢棄物處理。為減少環境污染，維護地球資源，本產品報廢時，請回收本產品。

Instruktion til bortskaelse (Danish)

Af hensyn til vores miljø bedes De ikke bortskae denne elektroniske enhed i en almindelig aaldsspand. For at mindske

forurening og sikre beskyttelse af miljøet bedes De genbruge produktet. For yderligere information vedrørende indsamling og

genbrug af elektronik-affald (Waste Electrical and Electronic Equipment (WEEE)) er De velkommen til at besøge vores

website www.aopen.com og læ se næ rmere under "Green Products".

Verwijderingsinstructie (Dutch)

Om mogelijke schade aan het milieu of de menselijke gezondheid door ongecontroleerde afvalverwijdering te voorkomen,

moet u dit elektronisch product scheiden van andere soorten afval en op een verantwoorde manier recyclen. Verwijder dit

product dan ook alstublieft niet samen met ander huishoudelijk afval. Voor meer informatie over de verzameling en recycling

van elektrisch afval en elektronische apparatuur (WEEE), nodigen we u uit om onze homepage te bezoeken www.aopen.com

onder "Green Products".

Instruction de Disposition (French)

Pour une meilleure protection de la terre, ne jetez pas ce dispositif électronique dans la poubelle municipale lors de la

disposition. Pour éliminer la pollution et assurer la plus grande protection de l'environnement global, réutilisez s il vous plaît le ’

produit. Pour plus d'informations sur la gestion des déchets d’Equipements Electriques et Electroniques (DEEE ou WEEE),

vous êtes invité à visiter notre site à www.aopen.com sous " Green Products".

Entsorgungsanleitung (German)

Zum besseren Schutze unseres Planeten, schmeissen Sie elektrische Geräte bitte nicht in öentliche Mülleimer. Zur

Verringerung der Verschmutzung und zur Sicherstellung grösstmöglichen Schutzes der Umwelt recyceln Sie bitte das Produkt.

Für mehr Informationen zum Sammeln und Recyceln von elektrischen und elektronischen Müll (WEEE) besuchen Sie bitte

unsere Homepage unter www.aopen.com unter dem Punkt "Green Products".

Istruzioni per lo smaltimento (Italian)

Per una migliore salvaguardia del nostro pianeta, si prega di non gettare questo dispositivo elettronico nei normali riuti al

momento dell'eliminazione. Per ridurre al minimo l'inquinamento ed assicurare la massima protezione dell'ambiente, si prega

di riciclare il prodotto. Per maggiori informazioni riguardanti la raccolta ed il riciclaggio delle apparecchiature elettriche ed

elettroniche residue (WEEE), siete invitati a visitare la nostra homepage www.aopen.com alla voce "Green Products".

Instruksjoner for Resirkulering og Oppsamling (Norweigian)

For ĺ beskytte vĺr planet, kast ikke dette elektroniske utstyret sammen med vanlig avfall. For ĺ beskytte vĺr natur og miljř,

vennligst resirkuler dette produktet. For mer informasjon om oppsamling og resirkulering i henhold til Waste Electrical and

Electronic Equipment (WEEE), se vĺr hjemmeside pĺ www.aopen.com under "Green Products".

REEE - Programa de Tratamento de Resíduos de Equipamentos Eléctricos e Electrónicos (Portugese)

Para melhor protecção ambiental do nosso planeta terra, não coloque o dispositivo electrónico no receptáculo de lixo municipal.

Para minimizar a poluição e garantir protecção máxima do ambiente global, recicle o produto. Para mais informações sobre

acerca da recolha e reciclagem de Equipamento Eléctrico e Electrónico (WEEE), convidamos-lhe a visitar nossa página na

Internet em www.aopen.com sobre "Green Products".

Copyright of this publication belongs to AOpen Inc. AOpen reserves the right to change the content of this publication without

obligation to notify any party of such changes or revisions. No part of this publication may be reproduced, transcribed,

transmitted, translated into any language, stored in a retrieval system in any form or by any means electronically, mechanically,

optically without the prior written permission of this company.

Disclaimer

AOpen makes no warranties or representations, either expressed or implied, with respect to the content herein and specically

disclaims any warranties, merchantability of tness for any particular purpose.

AOpen and AOpen logos used herein are registered trademarks of AOpen Inc.

All other brand names and trademarks are owned by their respective owners.

Safety Instructions

1. Please read these safety instructions carefully.

2. Please keep this User’s Manual for later reference.

3. Please disconnect this equipment from connecter before cleaning. Don’t use liquid or prayed detergent for cleaning.

Use moisture sheet or cloth for cleaning.

4. Make sure the equipment is connected to the power source with the correct voltage, frequency, and ampere.

5. All cautions and warnings on the equipment should be noted.

6. Never pour any liquid into opening; this could cause re or electrical shock.

7. Never open the equipment. For safety reason, the equipment should only be opened by qualied service personnel.

8. If one of the following situations arises, get the equipment checked by service personnel:

a. Liquid has penetrated into the equipment.

b. The equipment has been exposed to moisture.

c. The equipment has not worked well or you can not get it work according to users manual.

d. The equipment has dropped and damaged.

e. If the equipment has obvious sign of breakage.

9. Caution on use of battery: Use the battery recommended by the manufacturer or the same type of battery installed by the

manufacturer. If incorrect battery is used, it may cause explosion or re hazard. Recycle or discard used batteries according

the manufacturer’s instruction or your local authority.

10. Safety caution concerning laser products:

DVD-ROM/CD-RW combo drive is “Class I Laser Product” This equipment, built with DVD and/or CD disc drives using

laser beam aser to read or write data on optical discs, is classified as “Class 1 l product”. While the laser optical drive is

reading data from or writing data to an optical disc, do not force open the disc drive door. Press the Eject button to retrieve

the optical disc only after the in-use indicator goes o.

11. Ambient opera on temperature: 0 ~ 40 degrees C. ti

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This

device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful

interference to radio or television reception, which can be determined by turning the device o and on, the user is encouraged

to try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna.

■ Increase the separation between the device and receiver.

■ Connect the device into an outlet on a circuit dierent from that to which the receiver is connected.

■ Consult the dealer or an experienced radio/television technician for help

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Notice: Peripheral devices

Only peripherals (input/output devices, terminals, printers, etc.) certied to comply with Class B limits may be attached to this

equipment. Operation with non-certied peripherals is likely to result in interference to radio and TV reception.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user’s authority, which is granted by the

Federal Communications Commission, to operate this computer.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may

not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause

undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES- 003

Index

1. Outlook 2 …………..……………………………………………

2 Product Specication . 4 . … …………………………...………...

3 Packing List 5 . ……………………………………………………

4 Chassis and Holder Dimension 6 . ……………………………..

2. 2 Product Specication .

CPU

Intel Broadwell U CPU

Memory

Dual Channel Mode, support -DIMM DDR x 2, MHzSO 3L 1333 , Max memory size : 16GB

Graphics

Intel® HD graphic, integrated on CPU

Storage

Support M.2 , 2.5 SATA HDD p15-x1 x1 ”

Expansion

Slot

Full Size mini Card x 1

Half Size Mini Card x 1

Audio

Realtek ALC269Q HD Audio CODEC

LAN

Intel WGI218LM p15-x1

Front Panel IO

Power Button p15-x1

Rear Panel IO

DC 19V Jack x1, HDMI x1, DisplayPort p15-x1 RJ45 L x1, AN , USB 3.0 x4, HD Audio port

(Line out x1, Mic in x1), RS232 x2

Adapter

65 19W ( V, 3.42A) AC Power Adapter

Input Voltage

AC 100 ~ 240V

3 Packing List.

1 x DEX5350 system

1 x User Guide

1 x Driver CD

1 x 65W Adapter

1 x Power Cord

1 x L type Holder with 4 pcs of M3 screw

Note: The accessory is depneds on differnece SKU.

4. Chassis and Holder Dimension

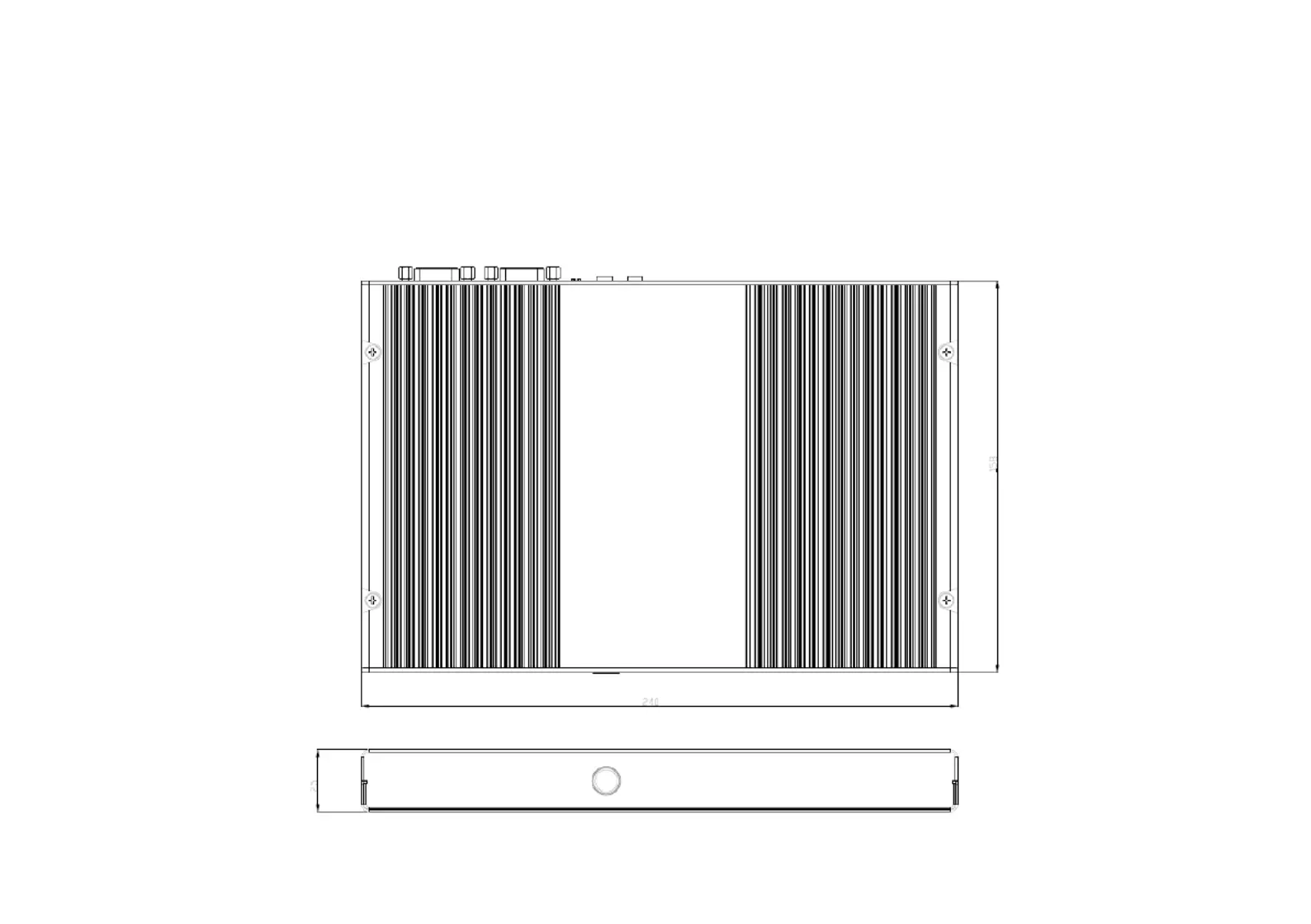

A. Dimension of DEX5350 (unit: mm [inch])

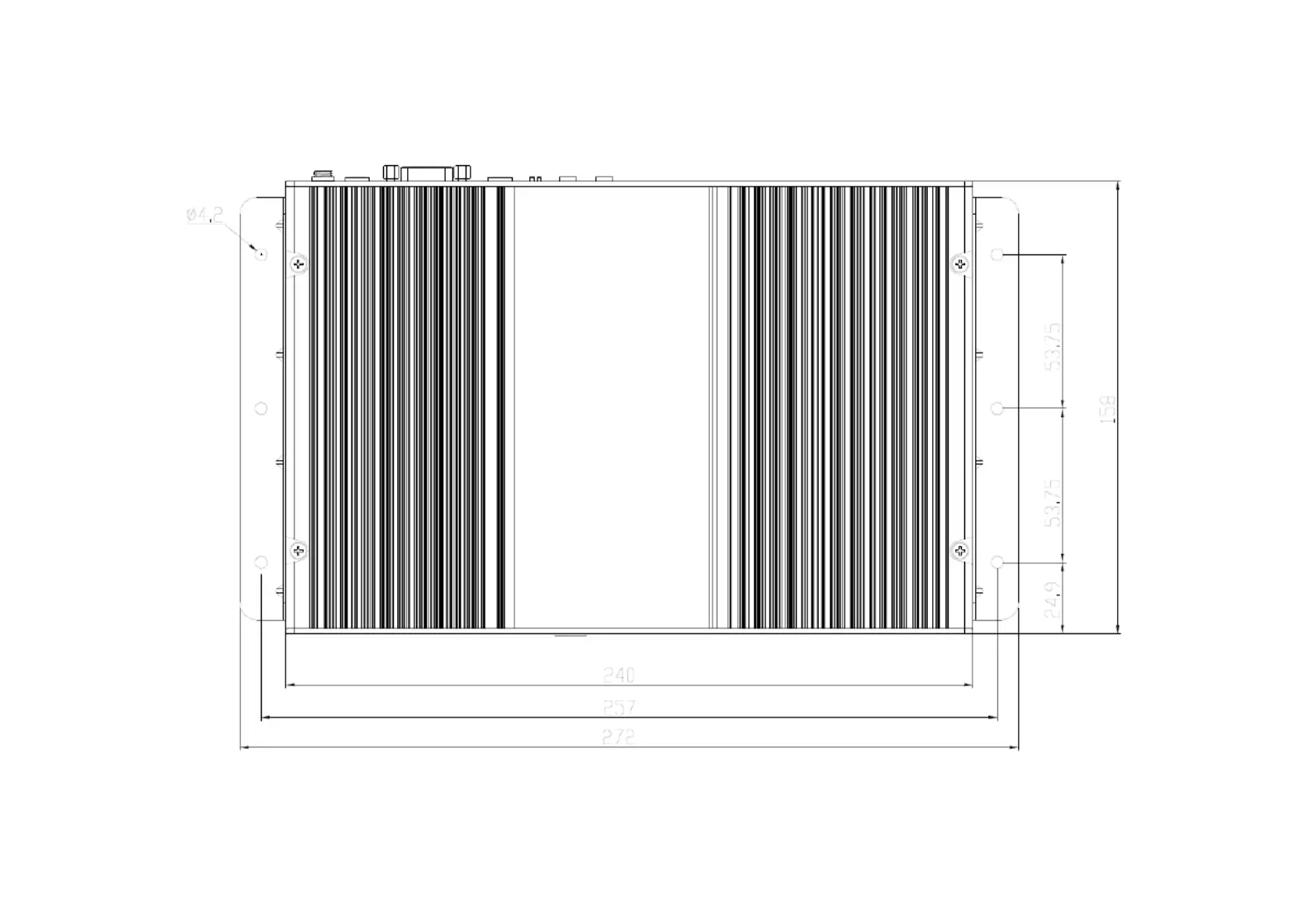

B. LH02 L type Holder (Include 2 piece holder and 4 FPH M3 screws)

Dimension of L type Holder. (Unit: mm)

P/N:49.DEE01.0010
