DA-HDTV-SDI
USER MANUAL
HDMI/DVI to SDI
CONVERTER w/o
SCALER
Troubleshooting Q & A
There is no image on my SDI monitor.
If your source is 1080p, your monitor may only
support 1080i, but not 1080p. Turn the rotary dial
to position 1 to change your 1080p source to
1080i.
There is no image on my SDI monitor.
Check the color of the status indicator. If the indi-
cator is green, it means there is power but no
input source is detected, this may be related to
the content protection on the HDMI source. If this
is the case, please call Apantac for technical sup-
port at (503) 968-3000.
I have both the RJ-45 and HDMI input
plugged in, but there is no image on my SDI
monitor.
Push the scan button once, it will scan for the
active source. If both RJ45 and HDMI inputs have
active sources, the RJ45 has priority.
The status indicator LED is not lit.
Check for a possible loose power adapter connec-
tion. Use the fastener that comes with the acces-
sories kit to ensure a secure connection.
© 2012 APANTAC LLC, All rights reserved
7556 SW BRIDGEPORT ROAD
PORTLAND, OR 97224, USA
PHONE +1 503 968 3000
FAX +1 503 389 7921
The content of this document is provided in connection
with Apantac LLC (“Apantac”) products. Apantac
makes no representation or warranties with respect to
the accuracy or completeness of the contents of this
publication and reserves the right to make changes to
specifications and product descriptions at any time
without notice.

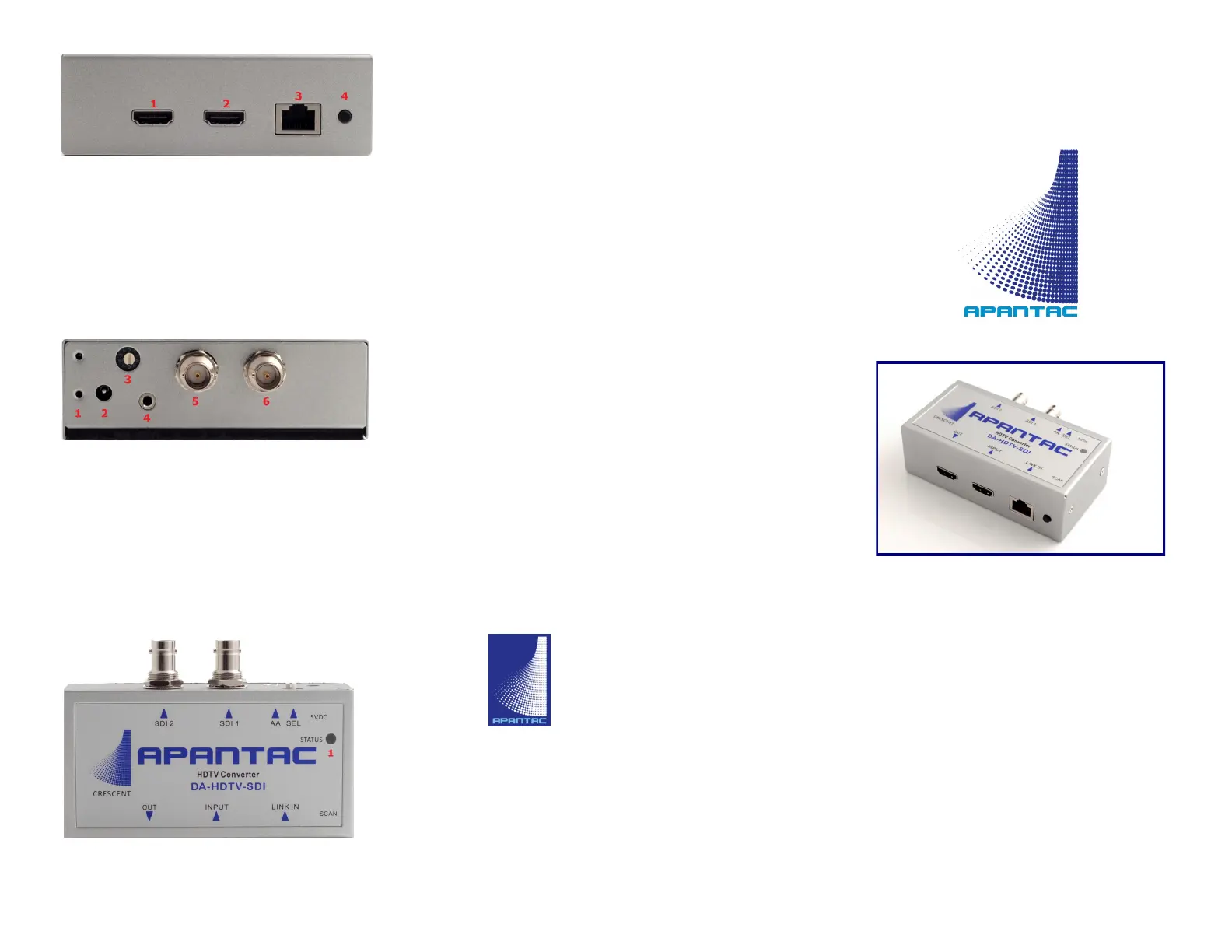

1. HDMI Loop out
2. HDMI input
3. RJ45 Input (compatible with Tahoma
Multiviewer)
4. SCAN - will scan between the 2 inputs
to look for an active signal
1. Power Supply Fastener
2. 5V 3.2A Power Input
3. Function Selection Rotary Switch
4. Stereo Phone Jack
5. SDI out 1
6. SDI out 2 (terminator should be ap-
plied when not in use)
1. Status Indicator - Turns Green when
powered on, turns amber when HDMI
signal is locked on
DA-HDTV-SDI REAR VIEW
DA-HDTV-SDI TOP VIEW
DA-HDTV-SDI FRONT VIEW
