WASHER-DRYER

! This symbol reminds you to read this instruction manual.

Contents

Installation, 2-3-4-5

Unpacking and levelling

Connecting the electricity and water supplies

The first wash cycle

Technical data

Care and maintenance, 6

Cutting off the water and electricity supplies

Cleaning the washer-dryer

Cleaning the detergent dispenser drawer

Caring for the door and drum of your appliance

Cleaning the pump

Checking the water inlet hose

Precautions and advice, 7

General safety

Disposal

Opening the porthole door manually

Description of the washer-dryer, 8-9

Control panel

Display

How to run a wash cycle or a drying cycle, 10

Wash cycles and options, 11

Table of wash cycles

Wash options

Detergents and laundry, 12

Detergent dispenser drawer

Preparing the laundry

Special wash cycles

Troubleshooting, 13-14

Assistance, 15-16

WDPG 9640

Instructions for use

Installation

unevenness by tightening or loosening the

adjustable front feet the angle (see figure);

of inclination, measured according to the

worktop, must not exceed 2°.

Levelling your appliance correctly will provide

it with stability and avoid any vibrations, noise

and shifting during operation. If it is placed on

a fitted or loose carpet, adjust the feet in such

a way as to allow enough room for ventilation

beneath the washer-dryer.

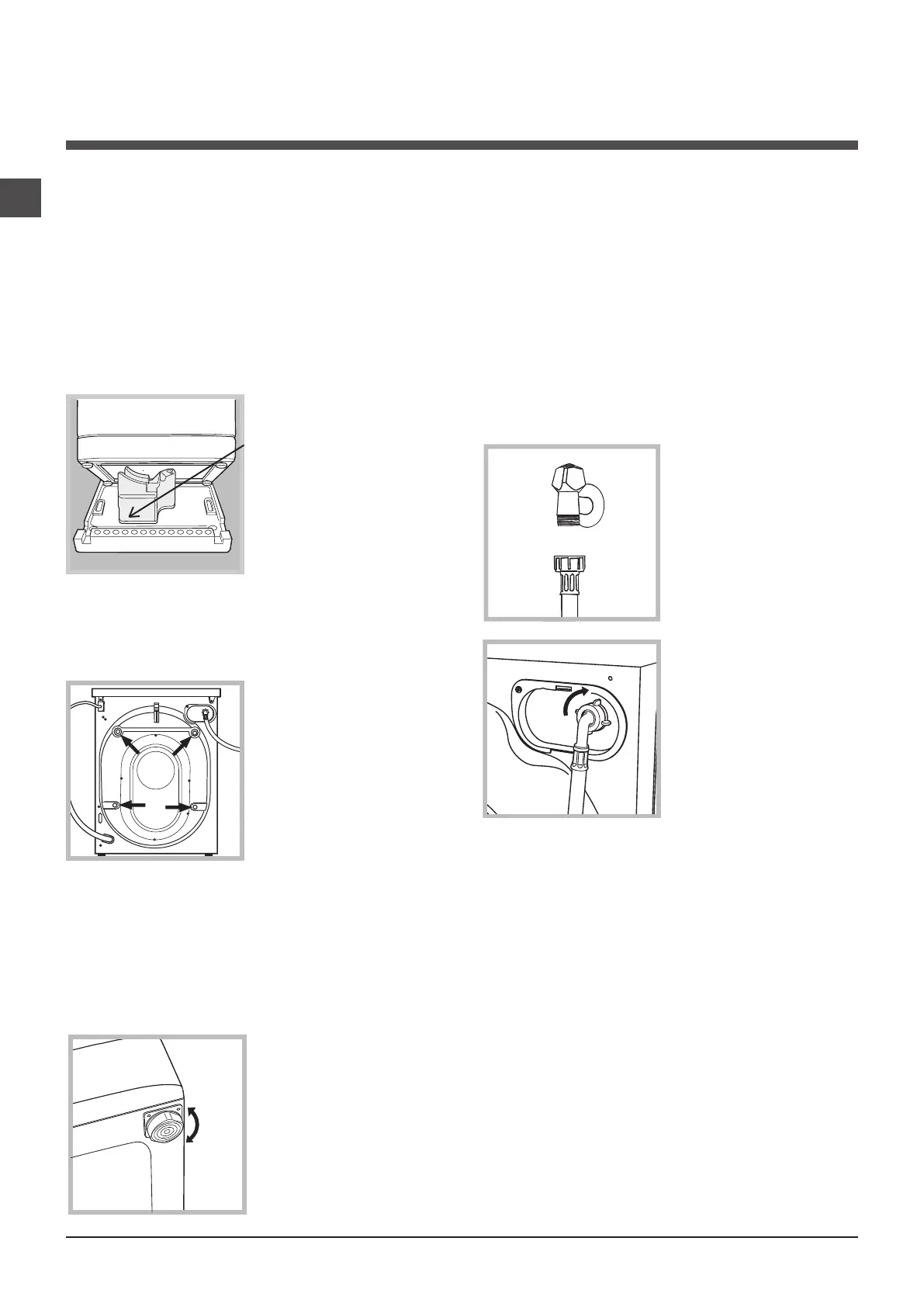

Electric and water connections

Connecting the water inlet hose

1. Connect the supply

pipe by screwing it to

a cold water tap using

a 3/4 gas threaded

connection (see

figure).

Before performing

the connection, allow

the water to run freely

until it is perfectly

clear.

2. Connect the other

end of the water inlet

hose to the washer-

dryer, screwing it onto

the appliance’s cold

water inlet, situated

on the top right-hand

side on the rear of the

appliance (see figure).

3. Make sure there are no kinks or bends in the

hose.

! The water pressure at the tap must be within

the values indicated in the Technical details

table (on the page 5).

! If the water inlet hose is not long enough,

contact a specialist store or an authorised

serviceman.

! Ensure that the supply taps are allowing

water through. Old taps may seize in the

closed position and thus prevent water

reaching the machine.

! Never use second-hand or old inlet hoses;

use the products supplied with the machine.

! Keep this instruction manual in a safe place

for future reference. Should the appliance

be sold, transferred or moved, make sure

the instruction manual accompanies the

washer-dryer to inform the new owner as to its

operation and features.

! Read these instructions carefully: they contain

vital information on installation, use and safety.

Unpacking and levelling

Unpacking ! This is a separate

part of the polystyrene

base and should be

removed with the

base.

! IMPORTANT check

when unpacking

your machine.

1. Unpack the washer-dryer.

2. Check whether the washer-dryer has been

damaged during transport. If this is the case,

do not install it and contact your retailer.

3. Remove the 4

protective screws and

the rubber bush with

the respective spacer,

situated on the rear of

the appliance (see also

the installation leaflet).

4. Seal the gaps

using the plastic plugs

provided.

5. Keep all the parts:

you will need them again if the washer-dryer

needs to be moved to another location.

! Packaging materials are not children’s toys.

Levelling

Your machine may make a considerable

amount of noise if the two front feet have not

been adjusted correctly.

1. Install the washer-

dryer on a flat sturdy

floor, without resting

it up against walls,

cabinets or anything

else.

2. If the floor is

not perfectly level,

compensate for any

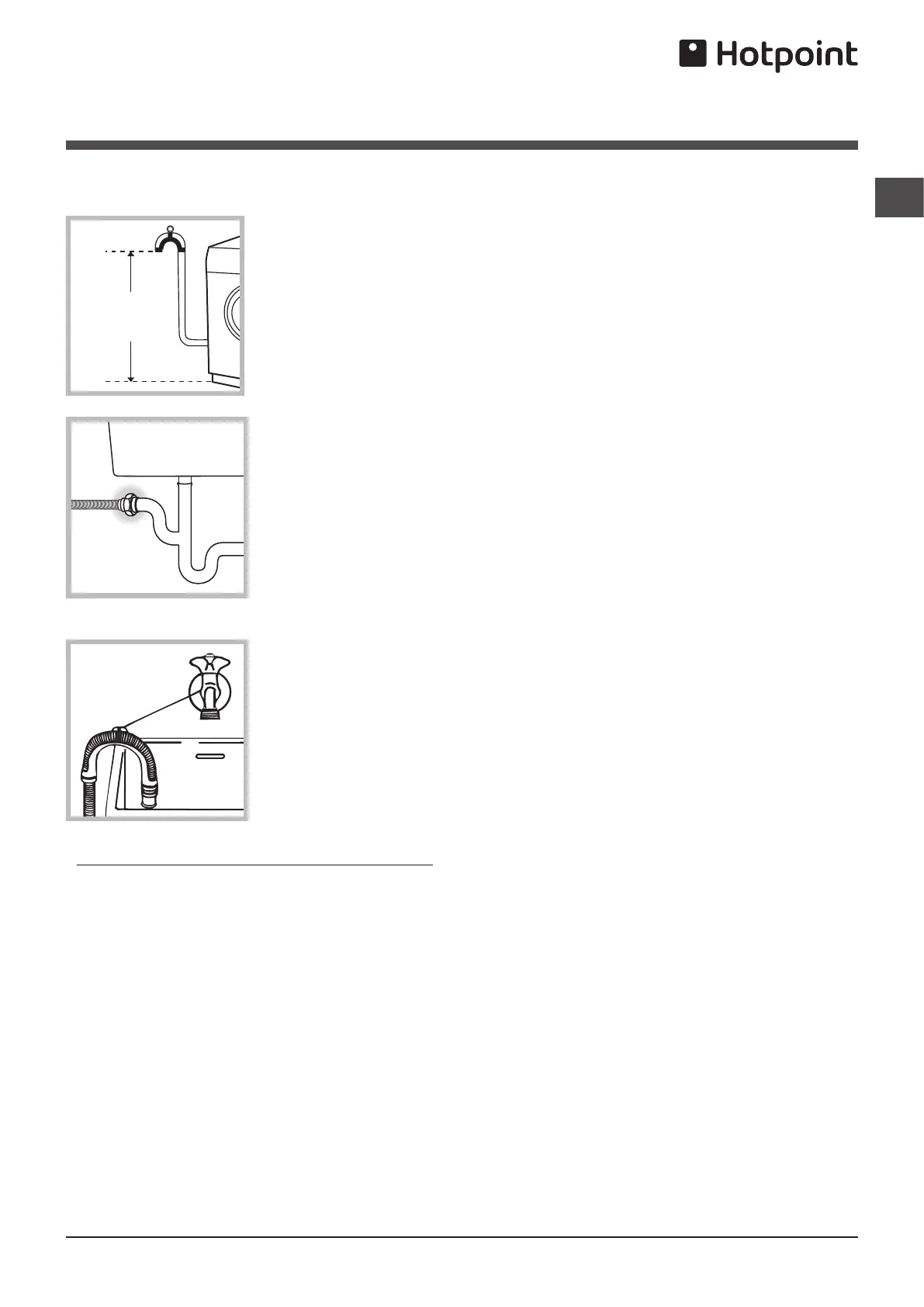

Connecting the drain hose

Connect the drain

hose, without bending

it, to a draining

duct or a wall drain

situated between 65

and 100 cm from the

floor;

The drain hose may

be connected to

an under-sink trap.

Before connecting

the drain hose from

the machine ensure

that any blanks or

removable ends have

been taken off the

spigot.

If it is placed over

the edge of a basin

or sink be sure

the free end of the

hose should not be

underwater.

! We advise against the use of hose extensions;

in case of absolute need, the extension must

have the same diameter as the original hose

and must not exceed 150 cm in length.

Ensure that if the drain hose is pushed into

a standpipe, that the end does not go down

more than 15cms (6 inches). If the hose is

pushed down too far, this may cause the

machine to self -syphon ie. continuously empty

as it is filling.

Electric connection

Before plugging the appliance into the mains

socket, make sure that:

• the socket is earthed and in compliance with

the applicable law;

• the socket is able to sustain the appliance’s

maximum power load indicated on the

Technical Data Plate fixed on the machine;

• the supply voltage is included within the

values indicated on the Technical Data Plate

fixed on the machine.

• the socket is compatible with the washer-

dryer’s plug. If this is not the case, replace

the socket or the plug.

Your appliance is now supplied with a 13 amp

fused plug it can be plugged into a 13 amp

socket for immediate use. Before using the

appliance please read the instructions below.

WARNING - THIS APPLIANCE MUST BE

EARTHED.

THE FOLLOWING OPERATIONS SHOULD

BE CARRIED OUT BY A QUALIFIED

ELECTRICIAN.

Replacing the fuse:

When replacing a faulty fuse, a 13 amp ASTA

approved fuse to BS 1362 should always be

used, and the fuse cover re-fitted. If the fuse

cover is lost, the plug must not be used until a

replacement is obtained.

Replacement fuse covers:

If a replacement fuse cover is fitted, it must

be of the correct colour as indicated by

the coloured marking or the colour that is

embossed in words on the base of the plug.

Replacements can be obtained directly from

your nearest Service Depot.

Removing the plug:

If your appliance has a non-rewireable

moulded plug and you should wish to re-route

the mains cable through partitions, units etc.,

please ensure that either:

the plug is replaced by a fused 13 ampere

rewireable plug bearing the BSI mark of

approval.

or:

the mains cable is wired directly into a 13

amp cable outlet, controlled by a switch, (in

compliance with BS 5733) which is accessible

without moving the appliance.

Disposing of the plug:

Ensure that before disposing of the plug itself,

you make the pins unusable so that it cannot

be accidentally inserted into a socket.

Instructions for connecting cable to an alternative

plug:

Important: the wires in the mains lead are

coloured in accordance with the following

code:

Green & Yellow Earth

Blue Neutral

Brown Live

65 - 100 cm

Where it connects to

the waste water pipe

cut end off spigot or

remove the blanking cap
