CX310

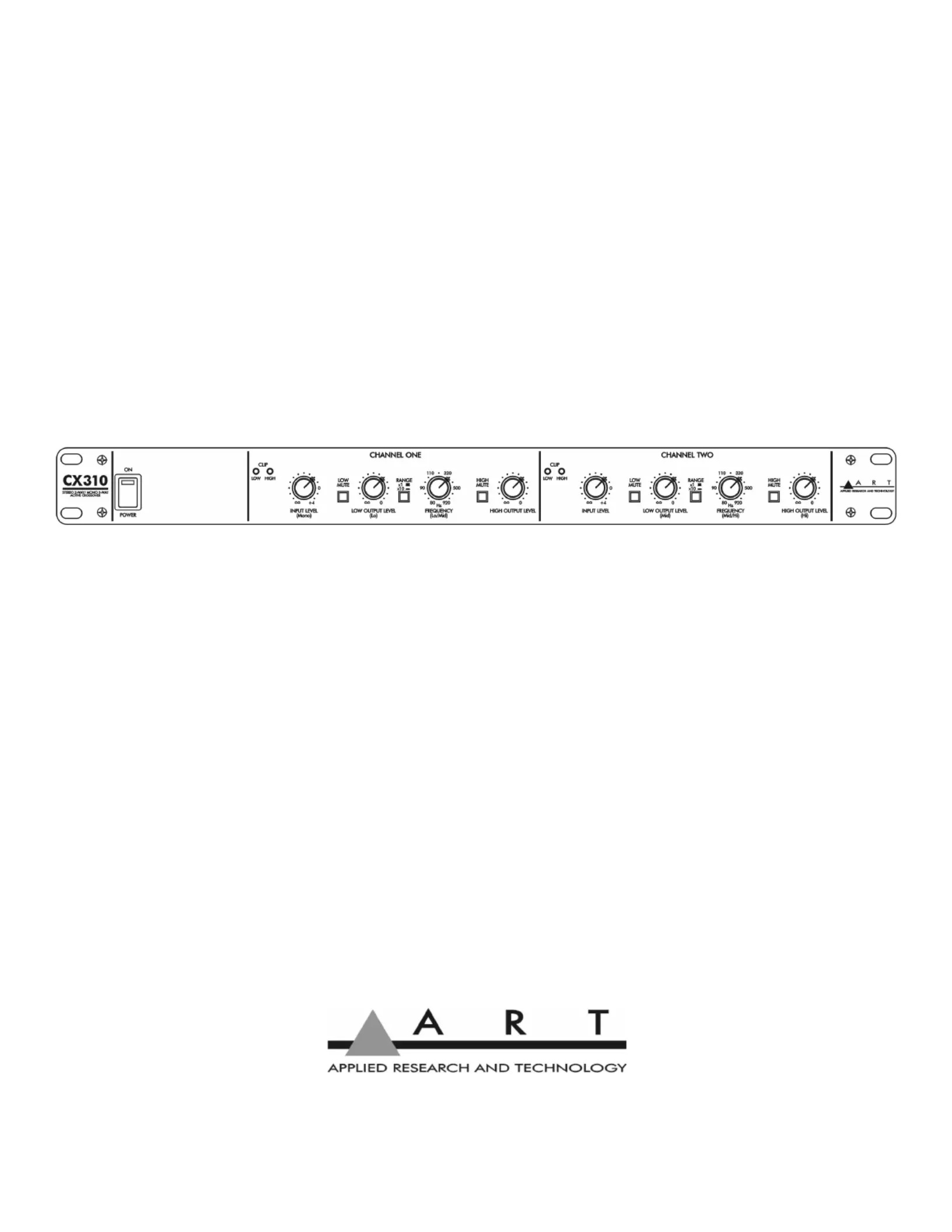

Stereo 2-Way / Mono 3-Way Active Crossover

USER'S GUIDE

IMPORTANT SAFETY INSTRUCTIONS READ FIRST–

This symbol, wherever it appears, This symbol, wherever it appears, alerts you

alerts you to the presence of uni to important operating and maintenancensulated

t dangerous voltages inside the enclosure that instructions in the accompanying li erature.

n may be sufficient to constitute a risk of shock. Please read the ma ual.

Read instructions

Retain these safety and operating instructions for future reference. Heed all warnings printed here and on the

equipment. Follow the operating instru tions printed in this user guide.c

Do not open

There are no user serviceable parts inside. Refer any service work to qualified technical personnel only.

Power sources

Only connect the unit to mains power of the type described in this user guide or marked on the rear panel. The

power source must provide a good ground connection.

Power cord

Use the power cord with sealed mains plug appropriate for your local main supply as provided with the

equipment. If the provided plug does not fit into you outlet consult your service agent. Route the power cord so

that it is not likely to be walked on, stretched or pinched by items placed upon or against.

Grounding

Do not defeat the grounding and polarization means of the power cord plug. Do not r move or tamper with the e

ground connection on the power cord.

Moisture

To reduce the risk of fire or electrical shock, do not expose the unit to rain, moisture or use in damp or wet

conditions. Do not place container of liquid on it, which may spill into any openings

Heat

Do not locate the unit in a place close to excessive heat or direct sunlight, as this could be a fire hazard.

Locate the unit away from any equipment, which produces heat such as: power supplies, power amplifiers and

heaters.

Environment

Protect from excessive dirt, dust, heat, and vibr tion when operating and storing. Avoid tobacco ash, drink a

spillage and smoke especially that as ated with smoke machines.soci

Handling

Protect the controls from damage during transit. Use adequate padding if you need to ship the unit. To avoid

injury to yourself or damage to the equipment take care when lif ing, moving or carrying the unit.t

Servicing

Switch off the equipment and unplug the power cord immediately if it is exposed to moisture, spilled liquid or

the power cord or plug becomes damaged during a lightning storm or if smoke odor or noise is noted. Refer

servicing to qualified techn cal personnel only.i

Installation

Install the unit in accordance with the instruction printed in the user guide.

IMPORTANT SAFETY INSTRUCTIONS READ FIRST– .......................................................... 2

OVERVIEW .................................................................................................................................................. 4

Features ......................................................................................................................................................... 4

INSTALLATION .......................................................................................................................................... 5

AC Power Hookup.......................................................................................................................................... 5

Input/Output Connections............................................................................................................................... 5

Mono 3-Way Configuration ............................................................................................................................. 5

Connections: .............................................................................................................................................. 5

Controls: ..................................................................................................................................................... 5

OPERATION .................................................................................................................................................. 6

FRONT PANEL CONTROLS ................................................................................................................. 6

Power Switch .............................................................................................................................................. 6

Clip Indicators ............................................................................................................................................. 6

Input Level Controls .................................................................................................................................... 6

Mute Switches ............................................................................................................................................ 6

Low And High Output Level Controls .......................................................................................................... 6

Crossover Frequency Controls And Range Switches ................................................................................. 7

REAR PANEL CONNECTORS and CONTROLS ............................................................................. 7

XLR Jacks .................................................................................................................................................. 7

1/4” Phone Jacks ........................................................................................................................................ 7

Mono/Stereo Mode Switch .......................................................................................................................... 7

APPLICATIONS ......................................................................................................................................... 8

Typical Setup ................................................................................................................................................. 8

Signal Flow .................................................................................................................................................... 8

Initial Setup Tips ............................................................................................................................................ 8

WARRANTY INFORMATION ................................................................................................................ 9

Limited Warranty ............................................................................................................................................ 9

Exclusions ....................................................................................................... Error! Bookmark not defined.

SERVICE .................................................................................................................................................... 10

SPECIFICATIONS ................................................................................................................................... 11
