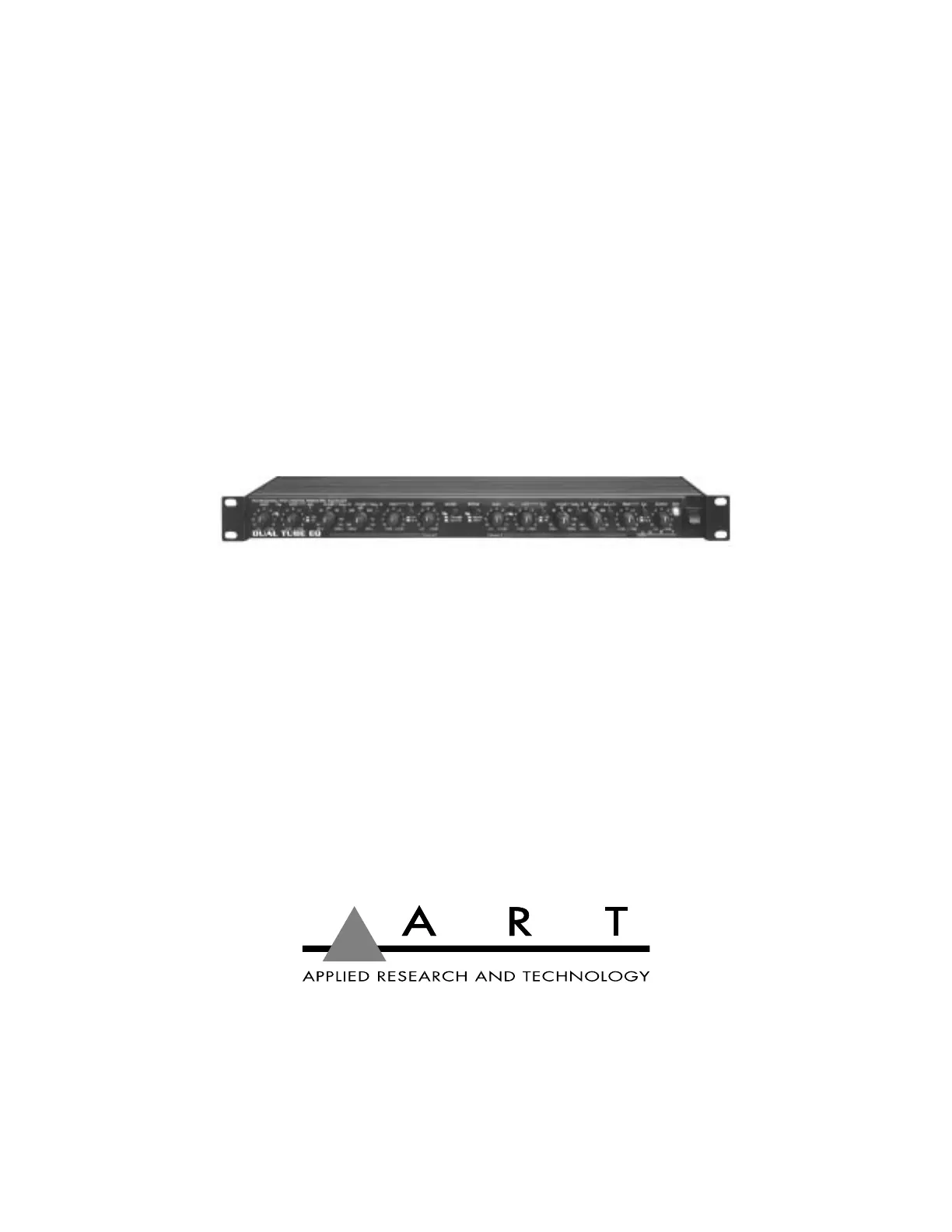

DUAL TUBE EQ

PROFESSIONAL TWO CHANNEL TUBE PARAMETRIC EQUALIZER

R’

’

’S

Table of Contents

Introduction 2

Features 2

Registration 2

Overview 3

EQ Tips 3-5

Unpacking 5

AC Power Hookup 6

Audio Connections 6

Installation 6

Safety Precautions 6

Powering Up 6

Front Panel Controls and Indicators 7

Gain Control 7

Clip Indicator 7

Low Frequency Control 8

Low Shift Switch 8

Lo-Mid Frequency Control 8

Low-Mid Shift x10 Switch 8

Hi-Mid Frequency Control 9

Hi-Mid Shift x10 Switch 9

High Frequency Control 9

High Shift Switch 9

Output Level Control 10

Bypass Switch 10

Mono (cascade) switch 10

Power Switch 11

Rear Panel Connections 11

Input 11

Output 11

Mono connections 12

Tube Replacement 12

Instruments and the Audio Spectrum 12

Applications 13

Specications 14

On-line Information 14

Warranty Information 15

Service Information 16

258-5004-101

Introduction

Thank you for purchasing Applied Research and Technology’s

Dual Tube EQ. The Dual Tube EQ may be used anywhere you

need equalization or frequency adjustments. Oering a superb

level of sound quality, the Dual Tube EQ will enhance the sonic

textures of your studio or audio system for years to come.

Features

The Dual Tube EQ is a unique product. While every EQ gives

you the ability to alter the frequency characteristics of a signal,

very few sound

really

good when doing so. Developed in part-

nership with studio and live sound engineers, the Dual Tube EQ

possesses exibility and “sound” that is not available from any

other product on the market - at any price! The Dual Tube EQ

was designed and constructed with the best components,

assuring a lifetime of quiet, reliable performance. The Dual

Tube EQ oers:

- The award-winning A R T “SOUND”!

- Tube-based four-band (or eight-band!) equalization

- Selectable Low shelving lters - 40Hz or 120Hz

- Selectable High shelving lters - 6KHz or 18KHz

- Sweepable Lo and Hi mid-frequency bands

- Mid-frequency bands overlap from 200Hz to 2KHz

- Mid-frequency bands sweepable from 20Hz to 20KHz

- Hand-selected 12AX7a tubes

- XLR balanced inputs and outputs

- 1/4” TS unbalanced inputs and outputs

- Custom extruded aluminum chassis

- Independent input and output level controls

- Detented rotary controls

- >90dB dynamic range

- Internal power supply

- Three year warranty

- Designed and manufactured in the USA

Registration

If you haven’t done so already, please take the time to ll out

the User Registration Card for your purchase. Having you in our

database allows us to keep you informed of updates, applica-

tion notes, and new product introductions. It only takes a

moment, and it will ensure that you are constantly up to date

with your purchase.
