MX821S

USER'S MANUAL

IMPORTANT SAFETY INSTRUCTIONS - READ FIRST

This symbol, wherever it appears, This symbol, wherever it appears, alerts

alerts you to the presence of uninsulated you to important operating and

dangerous voltages inside the enclosure maintenance instructions in the

that may be sucient to constitute a risk. accompanying literature. Please read

of shock the manual.

Read instructions Retain these safety and operating instructions for future reference. Heed all

warnings printed here and on the equipment. Follow the operating instructions printed in this user

guide.

Do not open (except to convert the 1/4-inch jacks from inputs to outputs. See page 4.) There are no

user serviceable parts inside. Refer any servic chnical personnel only. e work to qualified te

Power sources Only connect the unit to mains power of the type described in this user guide or

marked on the rear panel. The power source must provide a good ground connection.

Power cord Use the power cord with sealed mains plug appropriate for your local main supply as

provided with the equipment. If the provided plug does not fit into you outlet consult your service

agent. Route the power cord so that it is not likely to be walked on, stretched or pinched by items

placed upon or against.

Grounding Do not defeat the grounding and polarization means of the power cord plug. Do not

remove or tamper with the ground connection on the power cord.

Moisture To reduce the risk of fire or electrical shock, do not expose the unit to rain, moisture or use

in damp or wet conditions. Do not place containers of liquid on it, which may spill into any openings

Heat Do not locate the unit in a place close to excessive heat or direct sunlight, as this could be a fire

hazard. Locate the unit away from any equipment which produces heat, such as power supplies,

power amplifiers and heaters.

Environment Protect from excessive dirt, dust, heat, and vibration when operating and storing.

Avoid tobacco ash, drink spillage and smoke, especially that associated with smoke machines.

Handling Protect the controls from damage during transit. Use adequate padding if you need to ship

the unit. To avoid injury to yourself or damage to the equipment, take care when lifting, moving or

carrying the unit.

Servicing Switch off the equipment and unplug the power cord immediately if it is exposed to

moisture, spilled liquid or the power cord or plug becomes damaged during a lightning storm or if

smoke odor or noise is noted. Refer servicing to qualified technical personnel only.

Installation Install the unit in accordance with the instructions printed in the user guide.

INTRODUCTION

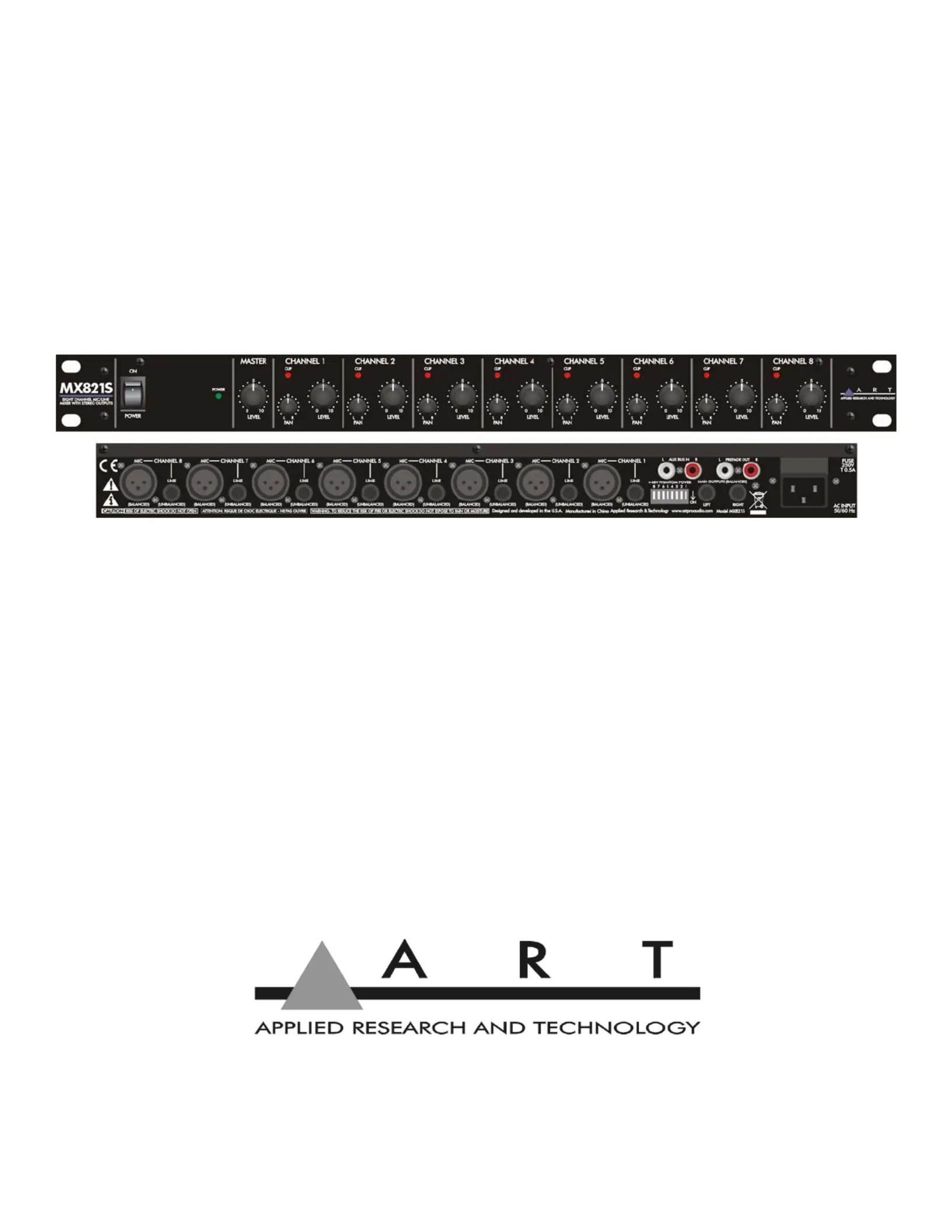

The ART MX821S Eight Channel Mic/Line Mixer with Stereo Outputs is a versatile rack mount mixer

combining eight independent input channels into a stereo line-level output. Each input channel

accepts a balanced XLR microphone input or unbalanced 1/4-inch TS line-level signal and provides

independent level and pan controls. +48 Volt phantom power may be independently selected on each

microphone input. A master level control adjusts the signal output to the low-impedance balanced

1/4-inch TRS jacks. Prefade output (not affected by the master level control) and Aux Bus input RCA

jacks allow patching of multiple units when more channels are needed.

The ART MX821S may be used on stage, in the studio, or for permanent install applications

including conference rooms, corporate boardrooms, churches, restaurants, small clubs, health clubs

and more. A built-in power supply and single high 19-inch rack mount format allows for easy

installation and reliable long-term operation.

Features:

• Eight input channels with individual level and pan controls

• Pan controls place each input mono signal anywhere in the output stereo image

• Balanced microphone XLR or unbalanced 1/4-inch TS inputs on each channel

• Full +48V low noise phantom power switchable for each microphone input

• Balanced left and right 1/4-inch TRS main output jacks with master level control

• Prefade Output jacks and Aux Bus hained to provide extra inputs Input jacks allow units to be c

• Each line input jack may be individually converted to a direct line output by means of internal

jumpers

• Rugged 1U rack-mount steel chassis with built-in power supply

• Perfect for stage, studio and permanent installations

• Three year warranty
