WP-8000B

User Manual

1.0 Descriptions.

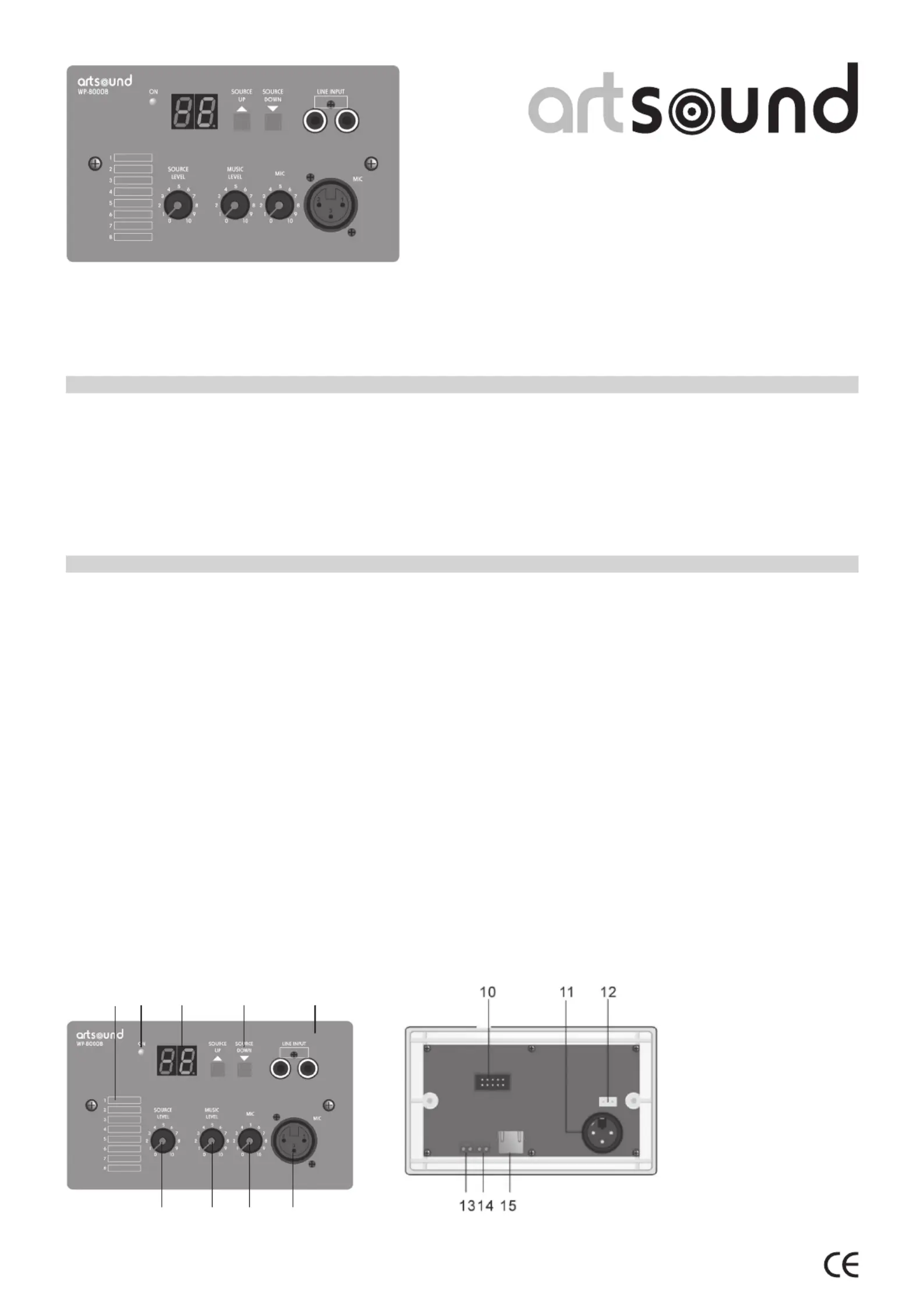

2. Front panel & rear panel.

Please follow the instructions in this manual to obtain the optimum results from this unit.

We also recommend that you keep this manual handy for future reference

Check our website for any updates of this manual: www.artsound.be

WP-8000B is a remote control panel work together with

MAT-8000, which will be used as a remote source selec-

tor, volume control and local input panel. The remote

control panel is designed with LED to provide direct dis-

play of the selected sources, the up and down button will

be used increase or decrease the source input channel. A

ten levels volume control is provided over the sources. A

line input by dual RCA type connector and a microphone

input by XLR type connector are included, while both of

them are designed of level control. The communication

between the panel and the matrix is through universal

industrial standard CAT5 cable, which also is used to sup-

ply power from the matrix to this panel within 50 meters.

There are total 8 units of remote control panels could be

work together with the matrix.

1. LABEL.

The label could be end user-printed as guidance over

sources.

2. POWER LED.

The LED will be light on blue after power on and will

be extinguished after power off.

3. SOURCE CHANNEL LED.

The white LED in blue background will display the

source channel 1 to 8 as 01 to 08 and local input as L.

4. SOURCE UP & SOURCE DOWN.

The two buttons are used to increase or decrease the

input sources channel from 1 to 8 and local input.

5. LINE INPUT.

Local line input by dual RCA type connector.

6. MIC INPUT.

Local microphone input by XLR type connector.

7. MIC LEVEL.

Ten levels volume control over local microphone

input, clockwise adjustment to increase the volume

from low to high level.

8. MUSIC LEVEL.

Ten levels volume control over local line input,

clockwise adjustment to increase the volume from

low to high level.

9. SOURCE LEVEL.

Ten levels volume control over selected source out-

put, clockwise adjustment to increase the volume

from low to high level.

10. JTAG CONNECTOR.

It is used to burn program.

11. MIC CONNECTOR.

12. MIC SIGNAL INPUT.

Connector to input microphone signal to the PCB

board.

13. SPARE AUX OUTPUT TO AMP.

14. SPARE 24V DC INPUT.

Extra DC 24V will be needed to power supply the

remote control panel when the communication

distance is longer than 50 meters.

15. Rj45 COMMUNICATION PORT.

The RJ45 port is used to communicate between the

remote control panel and the matrix, it also will be

used to power supply the panel within 50 meters.

1 2 3 4 5

9 8 7 6
