Aruba 303H Series Hospitality Access Points

Installation Guide

AP-303H-IG-01 | September 2017 1

The Aruba 303H Series access point is a high-performance dual-radio wireless device for hospitality and branch

deployments.

This access point use Multiple-Input, Multiple-Output (MIMO) technology to provide secure wireless connectivity

for both 2.4GHz 802.11 b/g/n and 5GHz 802.11 a/n/ac WiFi.

Alternatively, the wired Ethernet ports located on the bottom of the device allow users to connect to the device

directly when linked by an Ethernet cable.

The 303H Series access point can be attached to a standard single-gang wall box using the mount provided, or

converted into a desk-mounted remote access point for branch office deployments using the AP-303H-MNTD

mount kit (sold separately).

The 303H Series access point provides the following capabilities:

IEEE 802.11a/b/g/n/ac operation as a wireless access point

IEEE 802.11a/b/g/n/ac operation as a wireless air monitor

Compatibility with IEEE 802.3af/at PoE

Central management configuration

Supports PoE-in (E0 port)/PoE-out (E3 port)

Support for selected USB peripherals

Integrated Bluetooth Low Energy (BLE) radio

Package Contents

303H Series Access Point

Single gang wall-box mounting bracket

(2x) #6-32 slotted screws

T8H Torx security screw

Hardware Overview

The following sections outline the hardware components of the 303H Series access point.

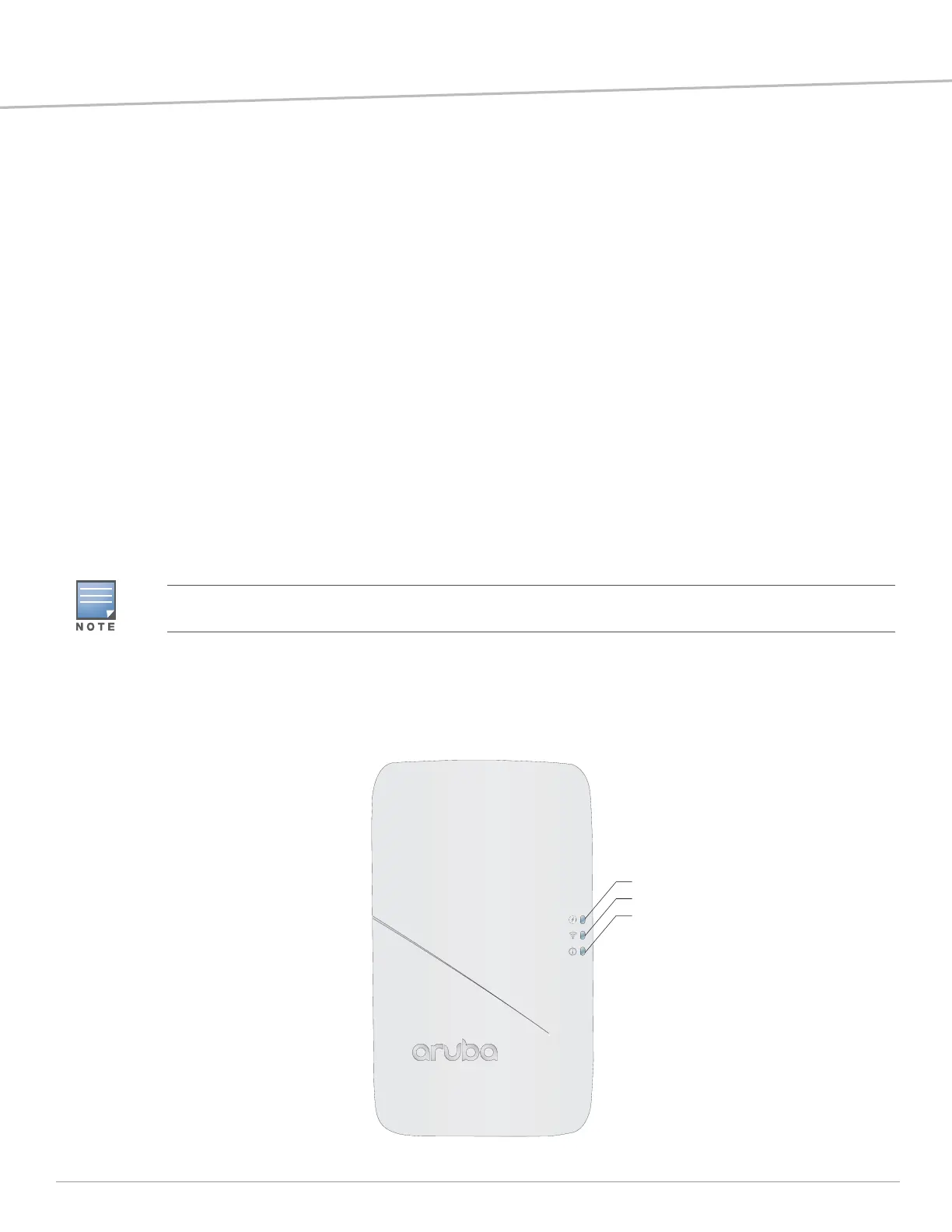

Figure 1 303H Series (front view)

Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton, including

the original packing materials. Use these materials to repack and return the unit to the supplier if needed.

PoE-PSE Status

Radio Status

System Status

2Aruba 303H Series Hospitality Access Points | Installation Guide

LED

The LED displays located on the front and bottom of the access point indicate the following functions:

System Status

The System Status LED indicates the operating condition of the access point. See Table 1.

Table 1 System Status LED

1 blinking: 1s on/1s off

2 flashing: on/off repeated in less than 1s

Radio Status

The Radio Status LED indicates the operating mode of the access point’s radios. See Table 2.

Table 2 Radio Status LED

Color/State Meaning

Off Device is powered off

Green/solid Device is ready; fully functional

Green/blinking1Device is booting; not ready

Green/flashing2Device is ready; uplink negotiated at suboptimal speed (<1Gbps)

Amber/solid Device is ready; operating in power-save mode (PoE source: 802.3af)

Amber/flashing Device is ready; operating in power-save mode, with uplink negotiated at

suboptimal speed (<1Gbps)

Red/solid Error condition

Color/State Meaning

Off Meets one of the following conditions:

both radios are disabled

device is powered off

Green/solid Both radios enabled in access mode

Green/blinking1One radio enabled in access mode; one radio

disabled

Amber/solid Both radios enabled in monitor mode

Amber/blinking One radio enabled in monitor mode, other disabled

Alternating3One radio in access mode, other radio in monitor mode

Aruba 303H Series Hospitality Access Points | Installation Guide 3

Network Status (E1-E3)

The Network Status LED, located on the sides of the E1-E3 ports, indicates activity transmitted to/from the wired

ports. See Table 3.

Table 3 Network Status LED

PoE-PSE Status (E3)

The PoE-PSE LED located above the E3 port and indicates when the access point is operating as Power Sourcing

Equipment (PSE), providing Power over Ethernet (PoE) to an external device that is physically connected to the

E3 port by Ethernet cable. See Table 4.

Table 4 PoE-PSE Status LED

LED Display Settings

The LEDs have three operating modes that can be selected in the system

management software:

Default mode: Refer to Table 1 Table 4-

Off mode: LEDs are off

Blink mode: LEDs blink green

Color/State Meaning

Off Meets one of the following conditions:

device is powered off

port is disabled

no link/activity

Green/solid Link established at max speed (1Gbps)

Green/blinking Activity detected across a max speed link

Amber/solid Link established at reduced speed (10/100Mbps)

Amber/blinking Activity detected across a reduced speed link

Color/State Meaning

Off Access point not supplying PoE, or powered off

Green/solid Access point supplying power to a connected device

Green/blinking Negotiating PoE power supplied to a connected device
