Service
Mounting Instructions
1/8
Product: Washing machine
Kit relay board professional washer
Reference: Service Support
Date: 01.10.2019
Kit relay board professional washer
This instruction is for washing machine fitted with 2 or 3* inlet valves. If you have a 2 way
valve in the machine, then it’s possible to connect only 2 cables to relay board and from
relay board to valves. You will still have 3 signals from the relay board for prewash, main
wash and rinse. There are two kits, different for WM-70 and WM-80.
* 3 valve is used for hot water connected washing machine.

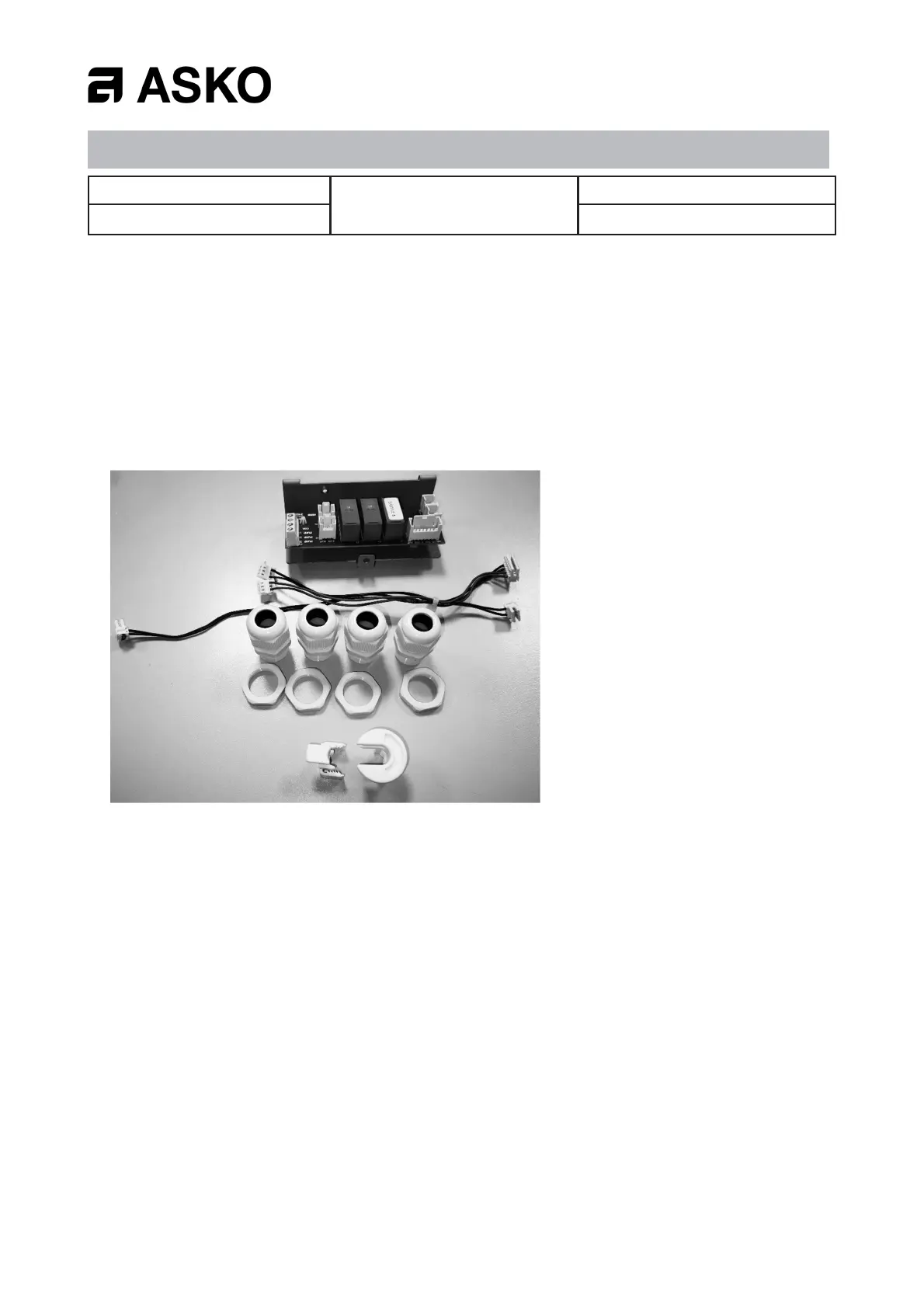

Kit includes: 4 grommets with nuts*, relay board mounted on a bracket, wiring harness for connecting to the
valves and strain relief for cable.
Service
Mounting Instructions
2/8
Installation of relay board for external detergent dosing
NOTE: If you have washing machine with already installed relay board, skip to step 6.
1. Connect the wiring harness to relay board and fixate it with cable tie as shown on the
picture above.
2. Disconnect the cables which come from the control unit to the valves from the inlet
valves. Take note which connector is connected to valve 1 (IV1), 2 (IV2) and valve 3
(IV3).
Service
Mounting Instructions
3/8
3. Connect the wires for inlet valves on relay board. Match the color coding on wiring
harness connectors with color coding on relay board connectors. IV1 IN is red color,
IV2 IN is orange color and IV3 IN is green color.
4. Position the card on back left side (next to detergent dispenser) and fasten it with
screw.
