5/08/2015

INSTALLATION AND

OPERATING INSTRUCTIONS

Bolero ND Cleaner

INSTALLATION AND OPERATING INSTRUCTIONS I INSTALLATION AND OPERATING INSTRUCTIONS

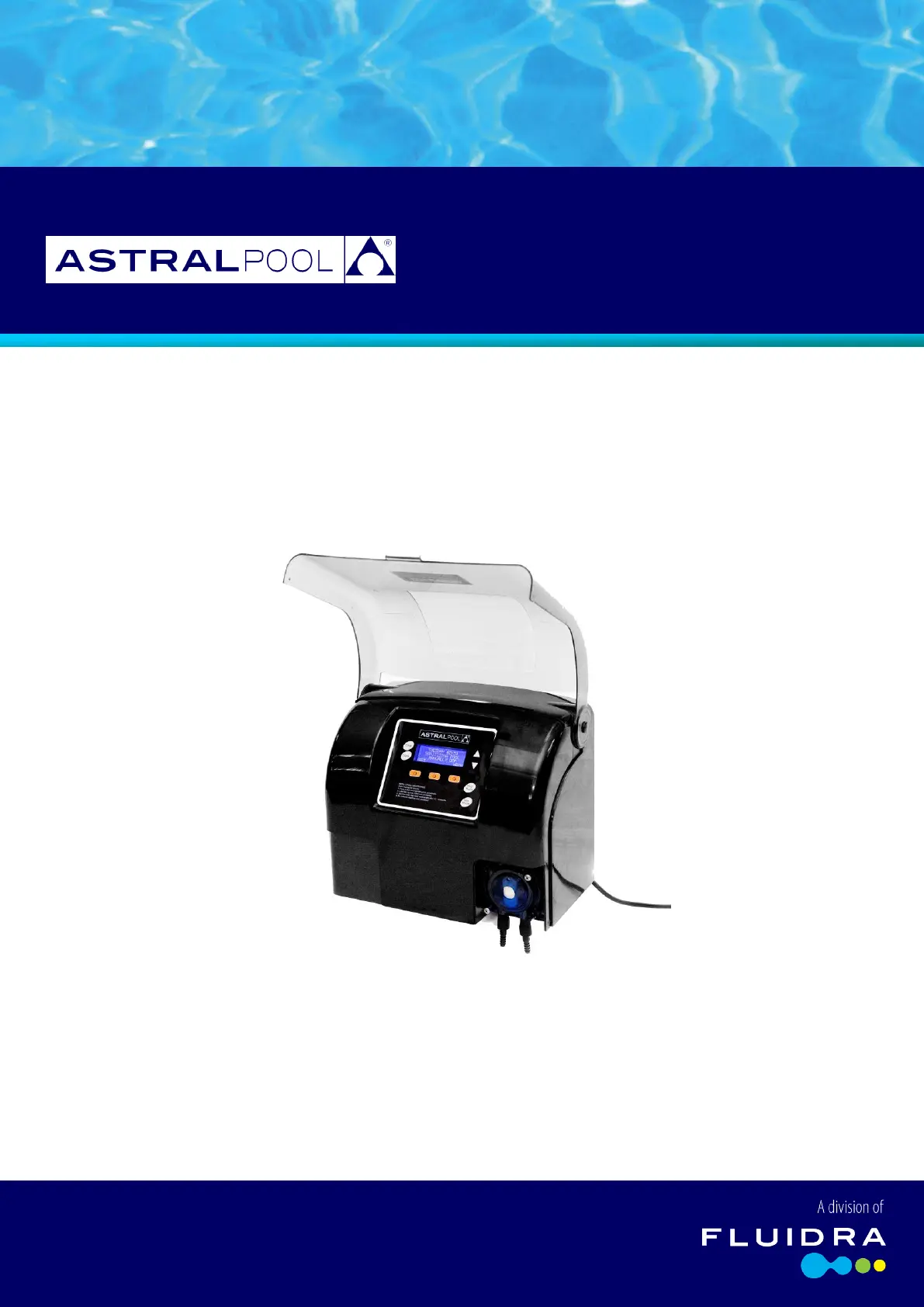

Viron e-Quilibrium Salt

Chlorinator

Inst315 – Viron e-Quilibirum Series Chlorinator Instructions V08-15

The appliance is not intended for use by young children or infirm persons without supervision. Please ensure that

young children are supervised to ensure that they do not play with the appliance.

Controller must be installed according to AS 3000 wiring rules.

If the supply cord is damaged it must be replaced by AstralPool or its service agent or a similar qualified person in

order to avoid a hazard.

This product is NOT suitable for use on Spa Pools UNLESS the OPTIONAL pH sensor has been purchased

and installed.

When used on Spa Pool applications, AstralPool strongly recommend the purchase and installation of a

chlorine sensor in addition to the pH sensor.

This product is NOT suitable for use on Indoor swimming pools UNLESS the pH and Chlorine sensors have

been purchased and installed.

The Viron e-Quilibrium can only be purchased through a professional pool business and MUST be installed

by that dealer.

Dose pool with a small amount of chlorine before starting the eQ. If no chlorine is sensed the eQ may go to

fail safe mode and not start up. Some Chlorine should be present before starting the unit.

Take extreme care when handling the pH adjuster which is either sulphuric acid or hydrochloric acid. Wear

gloves, eye protection and breathing protection.

Before installing probes, balance pool water. Total Alkalinity (TA) must be 80 to 120 ppm, Calcium Hardness

should be 180 to 250 ppm, and pH must be between 7.2 and 7.6.

Cyanuric Acid, sometimes referred to as stabiliser or sunscreen will suppress the Chlorine (ORP) reading

when the Chlorine sensor is connected. Refer to section on setting chlorine levels if Cyanuric Acid is present in

your pool.

Inst315 – Viron e-Quilibirum Series Chlorinator Instructions V08-15

Contents

Introduction ................................................................................................................................................................. 4

1.1 Components with Viron e-Quilibrium Basic Chlorinator System .................................................................. 4

2.0 Installation Viron e-Quilibrium chlorinator ........................................................................................................... 5

2.3 Connecting the PVC Acid Tube .................................................................................................................... 6

3.0 Starting your Chlorinator ..................................................................................................................................... 8

3.1 Set up ........................................................................................................................................................... 9

3.2 Setting Timers ................................................................................................................................................ 9

3.3 Timer Recommendations: ............................................................................................................................. 9

4.0 Operating Functions Accessed through Maintenance Program ......................................................................... 10

5.0 Calibration of pH Sensor/Probe: .......................................................................................................................... 11

6.0 OPERATION .......................................................................................................................................................... 11

6.1 Adjusting Chlorine Output ........................................................................................................................... 12

6.2 Adjusting pH Set Point ................................................................................................................................. 12

6.3 Installation of the pH sensor ....................................................................................................................... 13

6.4 Installation of the Chlorine Sensor .............................................................................................................. 14

7.0 General Operation/Pool Chemistry ..................................................................................................................... 16

7.1 Setting the Right Chlorine Output and Filtration Time ............................................................................... 16

Summer ............................................................................................................................................................. 16

Winter ................................................................................................................................................................ 16

7.2 Checking Chlorine Level. .............................................................................................................................. 16

7.3 Stabiliser ...................................................................................................................................................... 16

7.4 pH Level ....................................................................................................................................................... 16

7.5 Total Alkalinity ............................................................................................................................................. 16

7.6 Salt Level ...................................................................................................................................................... 16

7.7 ACID Handling .............................................................................................................................................. 16

8.3 Swimming Pool Applications and the use of Cyanuric Acid ....................................................................... 17

9.0 Ai Mode – complete automatic control of your Pool & Spa ............................................................................... 17

9.3 Ai Mode set up ........................................................................................................................................... 17

9.4 Viron eVo Pump speed selection: .............................................................................................................. 17

9.6 Effects of Ai Mode ....................................................................................................................................... 18

9.7 Extended Operating hours and high speed pump operation ...................................................................... 19

11.0 Fault Indication and trouble shooting ............................................................................................................. 22

11.1 Regular Maintenance ………………………………………………………………………………………….23

12.0 WARRANTY ........................................................................................................................................................ 23
