1U Rackmount Server
User Guide
RS500A-E9 Series
RS500A-E9-PS4
RS500A-E9-RS4
RS500A-E9-RS4-U
Copyright © 2018 ASUSTeK COMPUTER INC. All Rights Reserved.
Contents
Safety information vi ......................................................................................................
About this guide vii ........................................................................................................
Chapter 1: Product Introduction
1.1 System package contents 1-2 .........................................................................
1.2 Serial number label 1-3 ....................................................................................
1.3 System specifications 1-4 ...............................................................................
1.4 Front panel features 1-7 ...................................................................................
1.5 Rear panel features 1-7 ....................................................................................
1.6 Internal features 1-8 .........................................................................................
1.7 LED information 1-9 .........................................................................................
Chapter 2: Hardware Information
2.1 Chassis cover 2-2 .............................................................................................
2.2 Central Processing Unit (CPU) 2-3 .................................................................
2.3 System memory 2-7 .........................................................................................
2.4 Hard disk drives 2-9 .........................................................................................
2.5 Expansion slot 2-13 ..........................................................................................
2.6 Cable connections 2-24 ...................................................................................
2.7 SATA/SAS backplane cabling 2-25 .................................................................
2.8 Removable/optional components 2-26 ...........................................................
Contents
5.5 Chipset menu 5-24 ...........................................................................................
5.6 Security menu 5-25 ..........................................................................................
5.7 Boot menu 5-28 ................................................................................................
5.8 Tool menu 5-29 .................................................................................................
5.9 Save & Exit menu 5-29 .....................................................................................
5.10 AMD CBS menu 5-31 ........................................................................................
5.11 Event Logs menu 5-36 .....................................................................................
5.12 Server Mgmt menu 5-37 ...................................................................................
Chapter 6: Driver Installation
6.1 Management applications and utilities installation 6-2 ................................
6.2 Running the Support DVD 6-2 .........................................................................
6.3 AMD chipset device software installation 6-5 ...............................................
6.4 Installing the Intel® I350-AM2 Gigabit Adapters driver 6-6 ...........................
6.5 VGA driver installation 6-8 ..............................................................................
Appendix
KNPA-U16 block diagram A-2 .......................................................................................
Q-Code table A-3 ............................................................................................................
Notices A-6 ....................................................................................................................
ASUS contact information A-8 ......................................................................................
About this guide
Audience
Contents
1. Chapter 1: Product Introduction
2. Chapter 2: Hardware Information
3. Chapter 3: Installation Options
4. Chapter 4: Motherboard Information
5. Chapter 5: BIOS Setup
6. Chapter 6: Driver Installation
Product Introduction
Chapter 1: Product Introduction
1.1 System package contents
1.2 Serial number label
4321
xxS0xxxxxxxx
RS500A-E9 Series
1.3 System specifications
Model Name RS500A-E9-PS4 RS500A-E9-RS4 RS500A-E9-RS4-U
Processor Support
Memory
Total Slots
Capacity
Memory Type
Memory Size
* Refer to www.asus.com for the latest memory AVL update.
Expansion
Slots
T o t a l P C I /
PCI-X/PCI-E
Slots
Slot Type
Disk
Controller
SATA
Controller
SAS Controller
Optional kits:
NVMe
Controller
Storage
Bays
I = internal
A or S = hot-
swappable
Networking LAN
Infiniband Optional Kit:
Graphic VGA
Model Name RS500A-E9-PS4 RS500A-E9-RS4 RS500A-E9-RS4-U
Power Supply
(following different
configuration by region)
Environment
° °
° °
*Specifications are subject to change without notice.
1.4 Front panel features
Front panel LEDs
1.5 Rear panel features
4321
Optical drive (optional) Asset tag
(hidden)
Rack screw Rack screw
USB 3.0 ports
VGA port
LAN 2 LED
LAN 1 LED
LAN 4 LED
LAN 3 LED
Message LED
Power button
Location switch
Reset button
HDD LED
HDD 1 HDD 2 HDD 3 HDD 4
RS500A-E9-RS4 / RS500A-E9-RS4-U
RS500A-E9-PS4
VGA port
Gigabit LAN port 1
(bottom) and 2 (top)
USB 3.0 ports
LAN port for iKVM*
OCP 2.0 Mezzanine slot
Power button
Q-Code LED
Q-Code LED
Power cord connector and
Redundant power supply PCI-E slot Locate LED
Message LED
VGA port
Gigabit LAN port 1
(bottom) and 2 (top)
USB 3.0 ports
LAN port for iKVM*
OCP 2.0 Mezzanine slot
Power button
Power cord connector
and power supply PCI-E slot Locate LED
Message LED
1.6 Internal features
1.7 LED information
1.7.1 Front panel LEDs
LED Icon Display status Description
4321
LAN 2 LED
LAN 1 LED
LAN 4 LED
LAN 3 LED
HDD LED
Power button
Location switch
Message LED
1.7.3 HDD status LED
HDD status LED
SATA/SAS HDD LED Description
HDD Activity LED
1.7.2 LAN (RJ-45) LEDs
LAN port LED indications
LAN port
Activity/Link LED Speed LED
Status Description Status Description
Dedicated Management LAN port (DM_LAN1) LED indications
DM LAN port
Activity/Link LED Speed LED
Status Description Status Description
SPEED
LED
ACT/LINK
LED
SPEED
LED
ACT/LINK
LED
Hardware Information
Chapter 2: Hardware Information
2.1 Chassis cover
Removing the rear cover
Thumbscrews
Front side screw
2-15
ASUS RS500A-E9 Series
2. Remove the screw that secures the metal cover to the riser card bracket, then remove
the metal cover.
3. Prepare your ASUS PIKE II card.
4. Insert the expansion card into the PCI-E slot. Ensure that the golden ngers are totally
inserted into the slot, then secure the ASUS PIKE II card with the screw removed
before.
2-17
ASUS RS500A-E9 Series

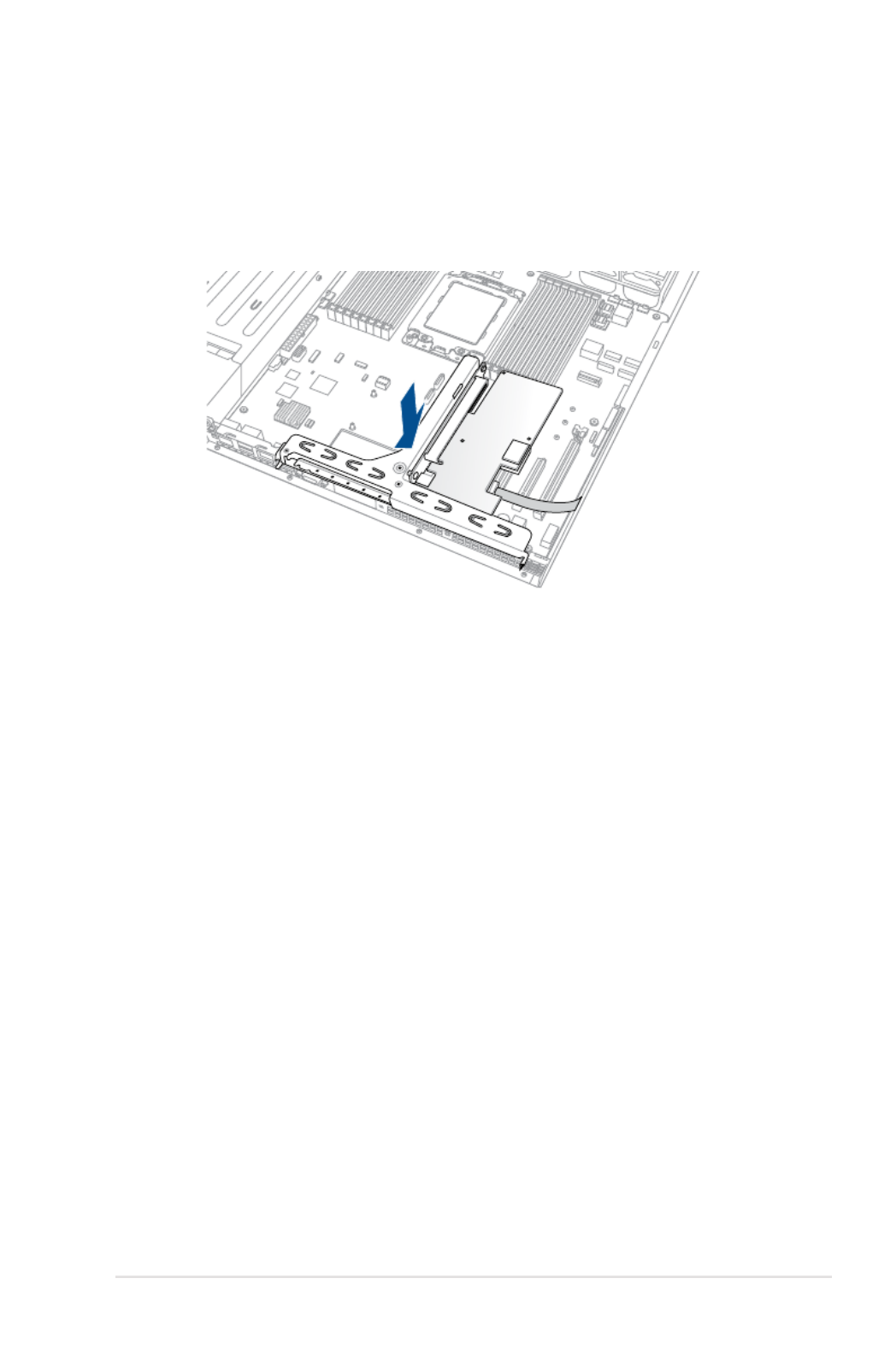

7. Reinstall the riser card bracket into the PCI Express x24 slot on the motherboard.
Ensure that the golden connectors of the riser card bracket is rmly seated in place.
