Sida 1/6

1/6

AtlasIED.com

TELEPHONE: (800) 876-3333

FAX (800) 765-3435

1601 JACK MCKAY BLVD.

ENNIS, TEXAS 75119 U.S.A.

©2015 Atlas Sound L.P. and Innovative Electronic Designs, LLC. All Rights Reserved. Atlas Sound is a trademark of Atlas Sound L.P. IED is a registered trademark of Innovative Electronic Designs, LLC. All other trademarks are the property of their respective owners.

All specs are subject to change without notice. ATS005347 RevA 12/15

Safety Instructions

Please read carefully before installing or operating.

• Read all instructions carefully

• Heed all warnings

• Assure that the speaker is securely mounted

• Always assure amplifier power is off before making any connections

• Keep instructions for future reference

• Should any questions arise after reading this document, please call Atlas Sound Tech Support at 800-876-3333

Hearing Damage

CAUTION: All professional loudspeaker systems are capable of generating very high sound pressure levels. Use care with placement and operation to

avoid exposure to excessive levels that can cause permanent hearing damage.

Suspension and Mounting

Installing speaker systems requires training and expertise. Improper speaker installation may result in injury, death, equipment damage, and legal

liability. Installation must be carried out by fully qualified installers, in accordance with all required safety codes and standards at the place of

installation.

Legal requirements for overhead installation vary by municipality, please consult the Building Inspector office before installing any product and

thoroughly check any laws and bylaws prior to installation. Installers that lack the skills, training, and proper ancillary equipment to install a speaker

system should not attempt to do so.

Installation

1. Run the wiring from the power amplifier to the location desired for mounting the ALA Series speaker.

2. Attach the lower wall bracket to the wall. Use a level to be certain that the wall bracket is straight. Secure the wall bracket to the wall. Be sure to

use the appropriate wall anchors when attaching the bracket. Use all four screw holes for maximum integrity and safety.

Note: Hardware for attaching the wall bracket to the wall is not included.

ALA10T

Installation Instructions

Fig. 1

2/6

AtlasIED.com

TELEPHONE: (800) 876-3333

FAX (800) 765-3435

1601 JACK MCKAY BLVD.

ENNIS, TEXAS 75119 U.S.A.

All specs are subject to change without notice. ATS005347 RevA 12/15

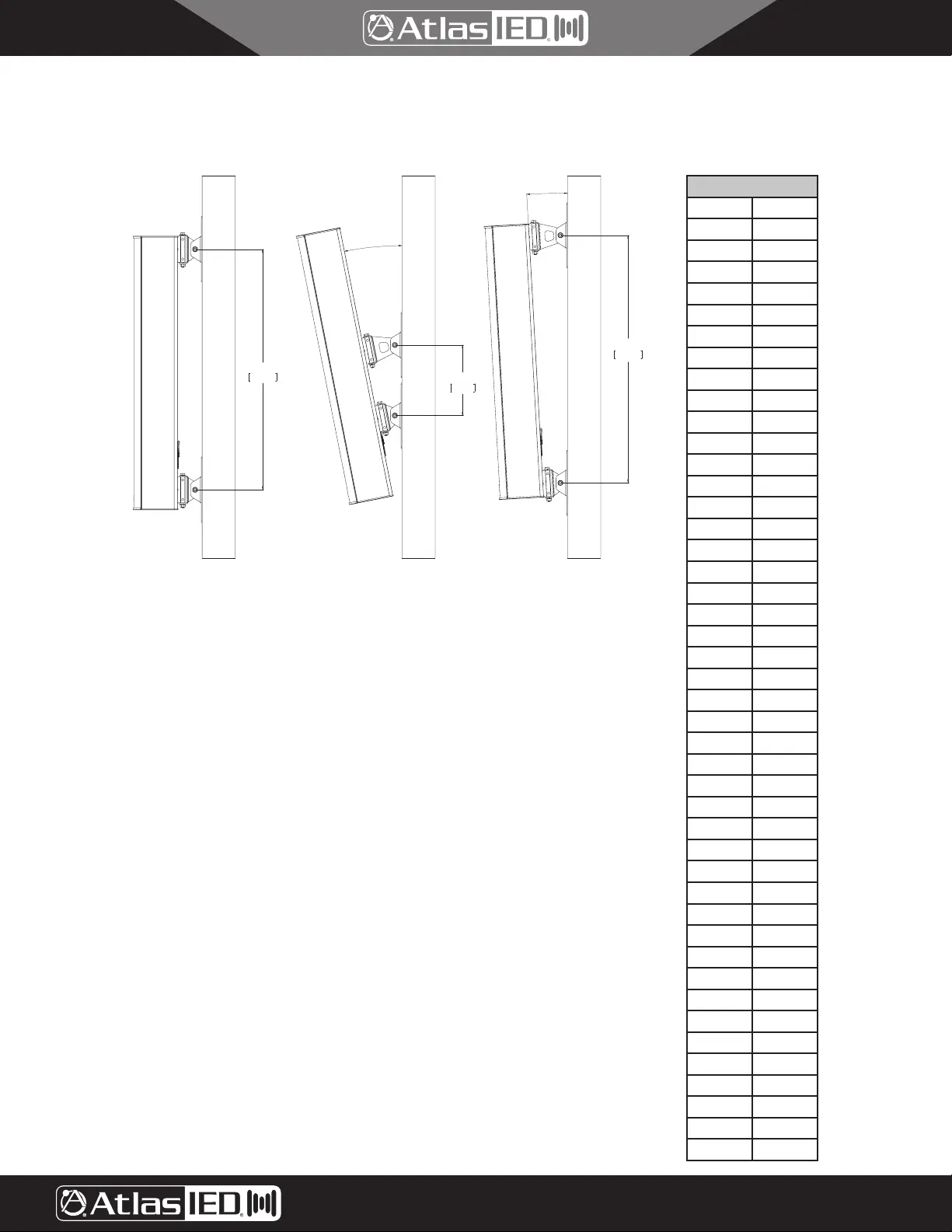

3. Attach the upper wall bracket as required.

A. The location of the upper wall bracket will vary according to the angle that the speaker will be used.

B. If the speaker will be parallel to the wall, the upper wall bracket can be located 18" to 29

/4" center to center. Two short speaker brackets will

be used; one on the top and one on the bottom.

C. For an angled installation, please refer to the table below to determine the center to center distance for the wall brackets.

ALA10T

ANGLE C-C IN

11.2° 8.5"

10.6° 9"

10° 9.5"

9.5° 10"

9.1° 10.5"

8.6° 11"

8.3° 11.5"

7.9° 12"

7.6° 12.5"

7.3° 13"

7° 13.5"

6.8° 14"

6.5° 14.5"

6.3° 15"

6.1° 15.5"

5.9° 16"

5.8° 16.5"

5.6° 17"

5.4° 17.5"

5.3° 18"

5.1° 18.5"

5° 19"

4.86° 19.5"

4.74° 20"

4.63° 20.5"

4.52° 21"

4.41° 21.5"

4.31° 22"

4.21° 22.5"

4.12° 23"

4.03° 23.5"

3.95° 24"

3.87° 24.5"

3.79° 25"

3.72° 25.5"

3.65° 26"

3.58° 26.5"

3.51° 27"

3.45° 27.5"

3.39° 28"

3.33° 28.5"

3.27° 29"

3.21° 29.5"

3.19° 29.75"

11.2º

215.9mm

8.50

736.6mm

29.00"

3.2º

758.2mm

29.85"

Fig. 2

Produktspecifikationer

Varumärke:	Atlas
Kategori:	högtalare
Modell:	ALA10T
Bredd:	117 mm
Djup:	137 mm
Höjd:	835 mm
Rekommenderad användning:	Universal
Impedans:	8 Ω
Ljudutgångskanaler:	- kanaler
Högtalarplacering:	Stand-mountable, Wall-mountable
Antal förare:	14
Känslighet:	96 dB
Förstärkare:	Nej
Produktens färg:	Silver
Uteffekt (RMS):	600 W
diskanthögtalare:	Ja
Internationellt skydd (IP) kod:	IP32
Material, hölje:	Gjuten aluminium
Frekvensområde:	125 - 20000 hz
Anslutningsteknologi:	Kabel
Bluetooth:	Nej
Högtalarelement, diameter:	76 mm
Disktanthögtalare diameter:	25 mm
Antal tweeter förare:	4
Övergångsfrekvens:	3500 hz
Antalet mid-range drivers:	10
Mellandrivenhet diameter:	76 mm
Mellandrivenhet diameter (imperial):	3 "
