Sida 1/10
www.atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515

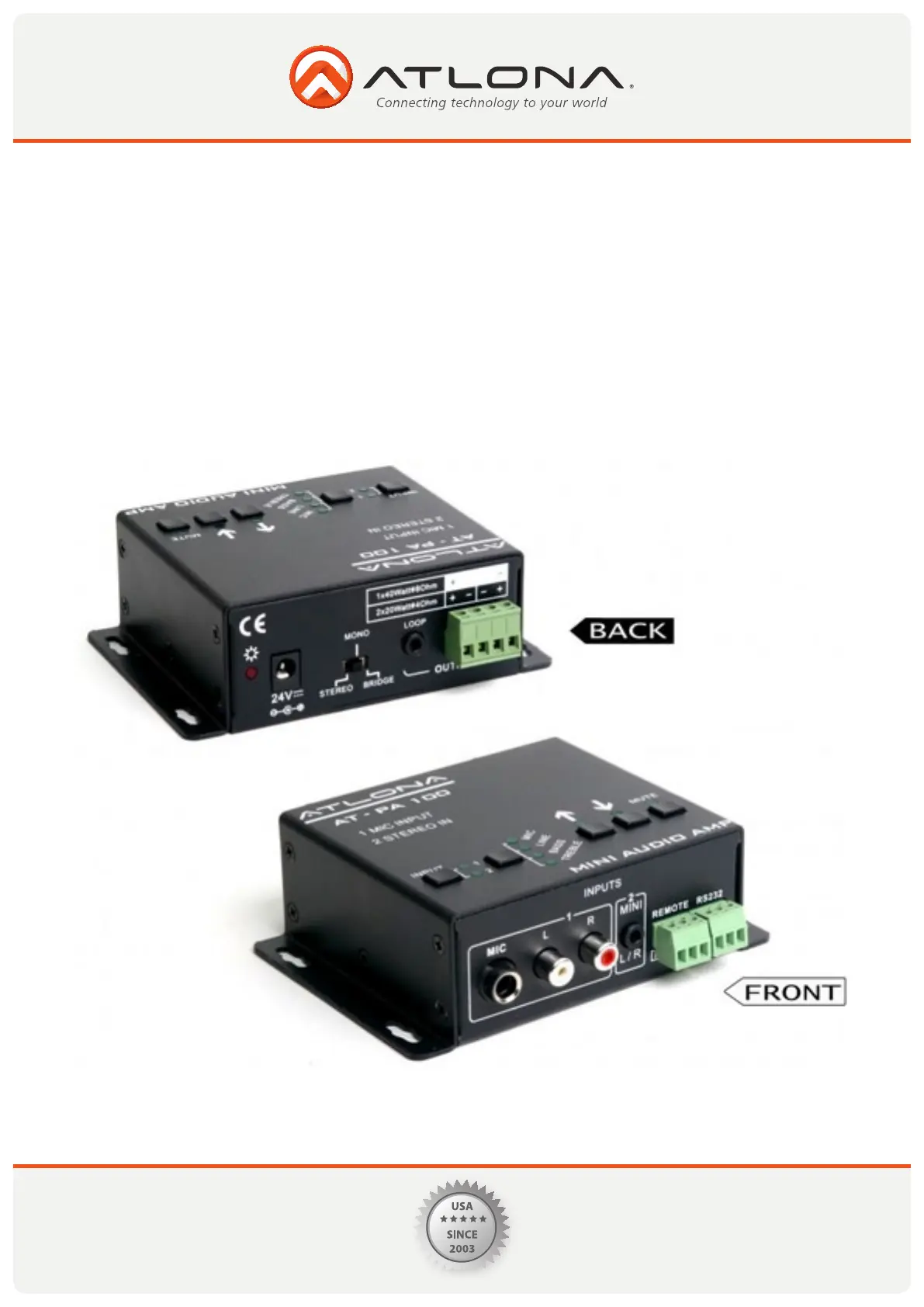

User Manual
Stereo/Mono Audio Amplifier with 3 Inputs
(2 x Stereo, 1 x MIC)
AT-PA100
1
www.atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
1. Introduction .................................................. 2
2. Features .................................................. 2
3. Specification .................................................. 2
4. Audio Connection .................................................. 3
4.1. Default mode .................................................. 3
4.2. Bridge mode .................................................. 3
4.3. Dual-mono mode .................................................. 4
5. Push-Button Controls .................................................. 4
6. RS232 Communication Protocol .................................................. 5
7. Connection Diagram .................................................. 6
8. Safety Information .................................................. 7
9. Warranty .................................................. 8
10. Atlona Product Registration .................................................. 9
TABLE OF CONTENTS
2
www.atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
The Atlona AT-PA100 is an Audio Amplifier with 3 Inputs (2 x Stereo, 1 x MIC). The PA100 is based on the digi-
tal amplification circuit (Class-D) and can operate in Stereo mode 2x20w or in Bridge mode (Mono) at 1x40W.
The Atlona amplifier has a built-in EQ control to allow you to adjust Bass and Treble and also mix in a Mic sig-
nal.
It supports RS232 and IR for remote control which is useful in commercial applications when a 3rd party control
systems is utilized.
Audio Input Audio Output
Input Output2 x stereo audio, 1 x MIC 1 x Amplifier, 1 x stereo audio
Input Connector 2 x RCA, 1 x 3.5mm jack,
1 x 6.5mm jack
Output Connector 1 x 3.5mm jack, 1 x Phoenix
connector, 4 pole
Input Impedance Output Impedance>10KΩ50 /stereo, 4~8 /AmplifierΩ Ω
Audio General
Frequency Re-
sponse
20Hz ~ 20KHz >70dB@20Hz~20KHzCMRR
SMR Bandwidth80 dB at maximum output 20Hz ~ 25KHz
Stereo Channel
Separation
>75 dB @ 20 Hz to 20 kHz 1% @ 1 kHz, 0.3% @ 20 kHzTHD + Noise
at nominal level
Voltage Gain Power Output32dB 20 Watts X 2 (4 )Ω
Control Parts
Serial Control Port Pin ConfigurationsRS-232, 9-pin female connector 2 = TX, 3 = RX, 5 = GND
Remote Front Panel ControlOptional IR remote Optional mountable keypad
Options TCP/IP control via RS232 to TCP/IP adapter
NOTE: All measurement levels are at ±10%.
• Class-D Stereo/Mono Audio Amplifier
• 2x20Watt @ 4 or 1x40Watt @ 8 , amplifier can be used to amplify 2 speakers or one speaker when in Ω Ω
Bridge mode.
• Dual-Mono mode combines left and right input channels, outputting a mono signal to 2 speakers.
• Microphone mixer function: A microphone can be mixed in with the line audio output signal and provide
a discreet volume control.
• Two stereo audio inputs, one Microphone input, and Volume/Bass/Treble are controlled by the front
panel buttons or RS232.
• RS232 control ability provides instant command status.
• Included universal power supply (110Volt~220Volt AC, 50/60Hz) for worldwide compatibility.
INTRODUCTION
SPECIFICATIONS
FEATURES
