Sida 1/33

atlona.com

1-408-962-0515

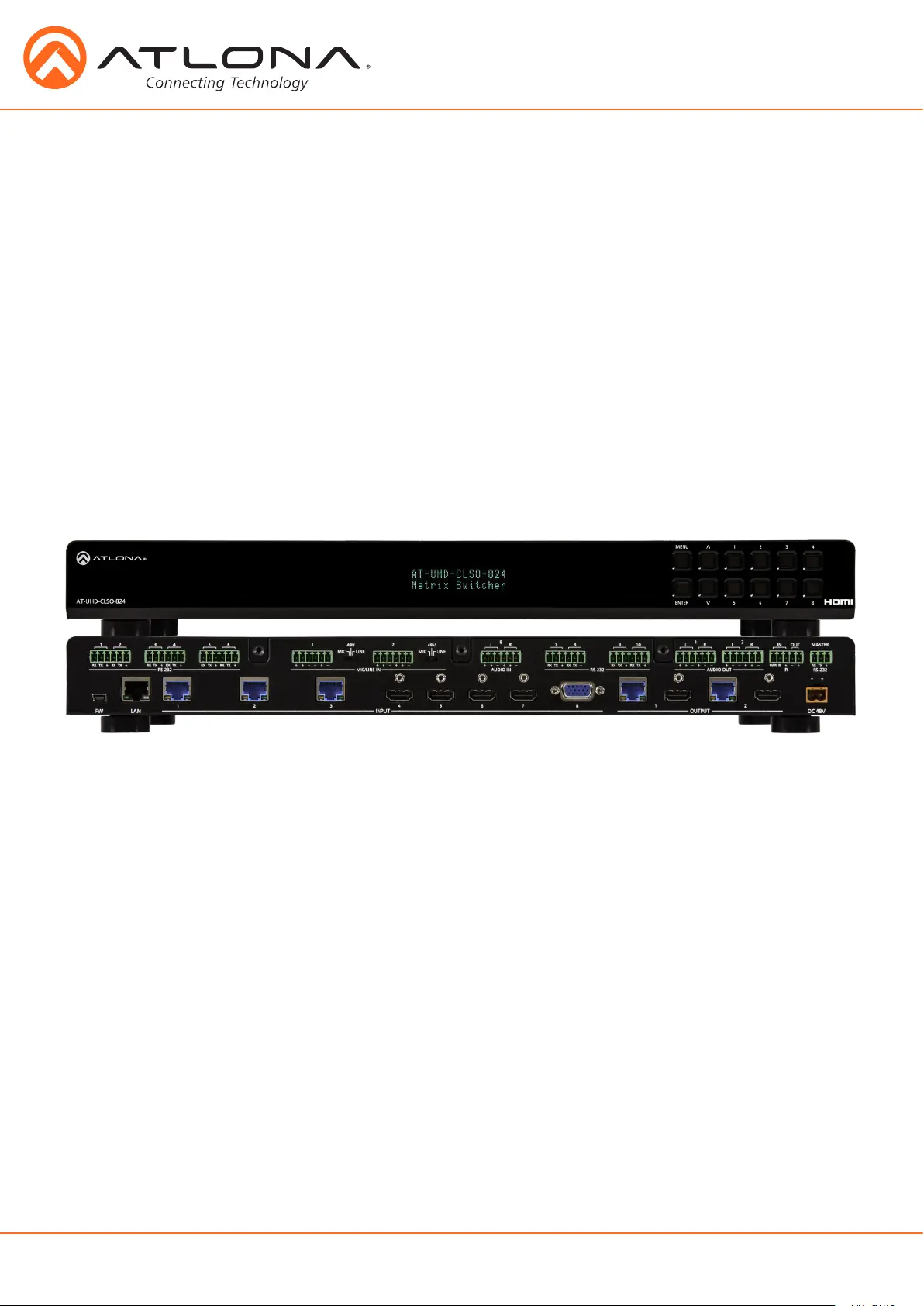

4K/UHD, 8x2 Multi-Format Matrix

Switcher with Dual, HDBaseT and

Mirrored HDMI Outputs

Please check http://www.atlona.com/

product/AT-UHD-CLSO-824

for the most recent firmware

update or manual.

User Manual

AT-UHD-CLSO-824

atlona.com

1-408-962-0515

Update - Rev C - May 2016

Pg. 20 Added HDVS-200 and control parameters

Pg. 24 Added RS-232 ‘HDVS sta’ command to give HDVS status information

Pg. 24 Added RS-232 ‘System sta’ command to give all CLSO status information

1. Introduction .......................................................................................... 3

2. Package Contents .......................................................................................... 3

3. Features .......................................................................................... 3

4. Wall/Rack Mounts .......................................................................................... 3

5. Panel Descriptions

a. Front Panel .......................................................................................... 4

b. Back Panel .......................................................................................... 4

6. Category Cable .......................................................................................... 5

7. Analog Multi-Format Inputs .......................................................................................... 6

8. Audio Connections .......................................................................................... 7

9. Microphone .......................................................................................... 8

10. Front Panel Display .......................................................................................... 9-10

11. TCP/IP and GUI .......................................................................................... 11-21

12. IR .......................................................................................... 22

13. RS-232 .......................................................................................... 23-28

16. Connection Diagram .......................................................................................... 29

14. Control Drivers .......................................................................................... 29

15. CLSO-824 Updates .......................................................................................... 29

17. Specifications .......................................................................................... 30

18. Safety .......................................................................................... 31

19. Warranty .......................................................................................... 32-33

20. Registration .......................................................................................... 33

Table of Contents

Produktspecifikationer

Varumärke:	Atlona
Kategori:	Router
Modell:	AT-UHD-CLSO-824
Vikt:	3490 g
Bredd:	433.8 mm
Djup:	255 mm
Höjd:	44 mm
Certifiering:	CE, FCC, cULus, CCC, RCM
HDCP:	Ja
VGA (D-Sub) ingångsportar:	1
Färgdjup:	12 bit
Maximal räckvidd:	100 m
Ljudutgångskanaler:	7.1 kanaler
Bandbredd:	10.2 Gbit/s
RJ-45 utgångsportar:	2
Antal HDMI-utgångar:	2
RJ-45 ingångsportar:	4
Rackkapacitet:	1U
Produktens färg:	Svart
Strömförbrukning (vanlig):	78.54 W
Temperatur vid drift:	0 - 50 ° C
Temperaturintervall (förvaring):	-20 - 60 ° C
Intervall för relativ operativ luftfuktighet:	20 - 90 %
Video porttyp:	HDMI
Harmonized System (HS)-kod:	85176990
AC-adapter, nätspänning:	48 V
AC-adapter, inspänning:	100 - 240 V
HDMI-in:	4
AC-adapter, frekvens:	50 - 60 hz
Strömstyrka in, AC-adapter:	3.125 A
