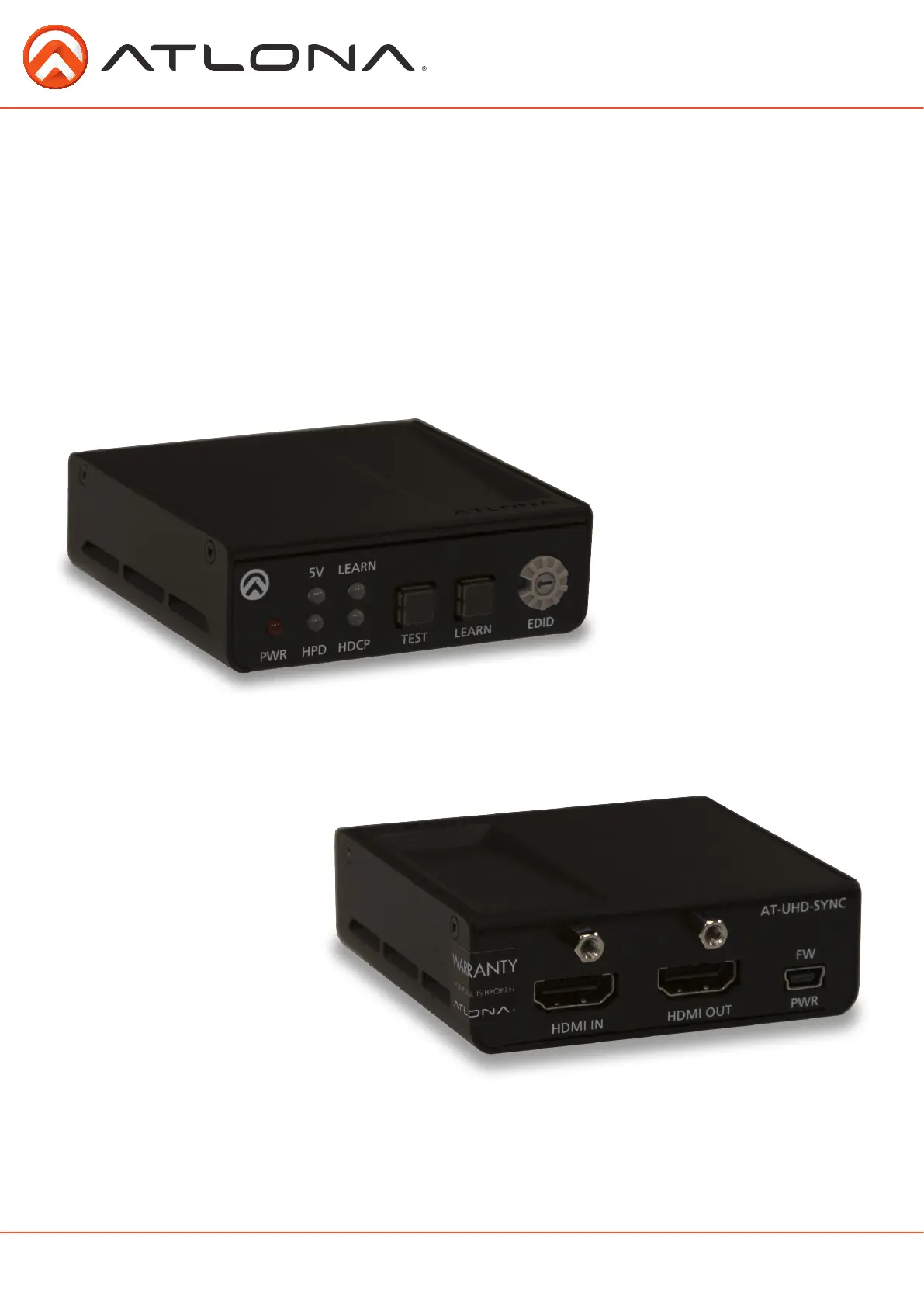

User Manual
Atlona 4K HDMI
Emulator / Tester
AT-UHD-SYNC
atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
2
1. Introduction .................................................................................. 3
2. Package Contents .................................................................................. 3
3. Features .................................................................................. 3
4. Panel Descriptions
a. Front Panel .................................................................................. 4
b. Rear Panel .................................................................................. 4
5. Testing
a. HDCP .................................................................................. 5
b. 5V & Hot Plug .................................................................................. 5
6. EDID
a. Internal .................................................................................. 6
b. Learning .................................................................................. 6
7. Connection and Installation .................................................................................. 7-8
8. Specifications .................................................................................. 9
9. Safety Information .................................................................................. 10
10. Warranty .................................................................................. 11-12
11. Atlona Product Registration .................................................................................. 12
atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
Table of Contents
3
atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
Introduction
The Atlona AT-UHD-SYNC is designed to analyze errors, identify issues and restore failed HDMI
signals. The UHD-SYNC’s slender, palm sized design ensures easy integration into confined spaces.
USB powered, with included USB power suppply or from local USB devices. With presets and
learned EDID, the UHD-SYNC provides a solution whenever and wherever it is needed.
Package Contents
Features
• 1 x AT-UHD-SYNC
• 1 x DC 5V/1A USB power adaptor
• 1 x Mini USB to USB “A” cable
• 1 x Pair of wall mount ears
• 1 x User manual
• Ensures proper operation, for the best performing HDMI audio and video signal between any
source and display
• Resolves loss of video, intermittent (flashing) video, snow, or color-space (purple or red) issues
• Test HDMI system components and cables to identify HDCP support. Also detects presence of 5
volt and hot plug detect (HPD) signals
• 4K (UHD) support: Ensures the best video performance
• 5 volt / HPD emulation: Restores A/V signals due to faulty cables or when multiple distribution
devices are cascaded
• EDID emulation: 9 unique stored files plus learning capability to ensure the best picture and sound
is achieved
• 3 LEDs: indicators: HPD, 5V, HDCP indicators aid in HDMI signal failure analysis
• Signal regeneration: HDMI 1.2 sources can be reliably transmitted with HDBaseT extenders and
matrices
• USB power: No wall power supply required! Harvest power from local USB devices to power
UHD-SYNC when an AC outlet isn’t available
• Palm sized form factor reduces impact within confined spaces
• Locking HDMI connectors
• HDCP compliant
