Installation Guide

AT-VCC-IR3-KIT

IP to IR Command Converter for Velocity Control System

AT-VCC-IR3-KIT

The Atlona AT-VCC-IR3-KIT is an accessory for the Atlona Velocity™ Control System that

provides conversion from IP control commands to IR. This Velocity Control Converter is very

compact and can be placed anywhere a device requires IR control. The VCC-IR3-KIT is remotely

powered through Power over Ethernet (PoE), or locally from a USB power source. The primary

unit installs onto any surface via a convenient mounting dock. A simple “click” locks it into place

for a secure, reliable installation. The IR adapter module includes three IR emitters attached by

a 3.5mm cable. Each emitter is independently addressable, allowing discrete IR control of three

dierent AV devices.

1 x AT-VCC

1 x AT-VCC-IR3

Package Contents

Operating Notes

• The AT-VCC-IR3-KIT is PoE, to power the unit, simply plug it into a PoE compatible network

switch. If the network switch is not PoE capable, a PoE injector (purchased separately) or USB

can be used.

• All devices (AT-VCC, Velocity, AT-VTP, switchers, etc) should be set to static IPs or the

DHCP IP address reserved for each individual device.

IMPORTANT: Velocity Gateway (AT-VGW-HW) must be set up before the AT-VCC-IR3-KIT

is fully functional.

Installation Guide

AT-VCC-IR3-KIT

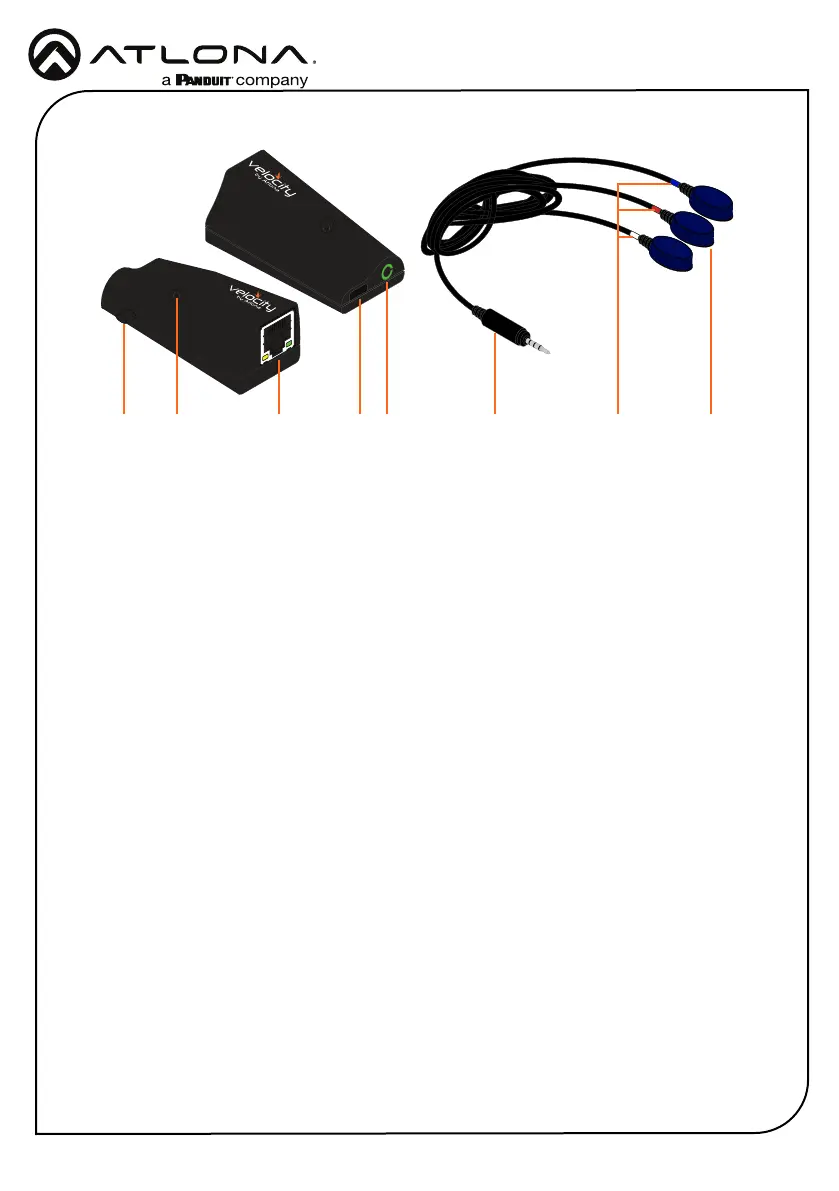

8 2 3 41 5 76

1 IR Window

Use to learn IR commands from a device’s

IR remote control.

2 Ethernet

Connect an Ethernet cable from this

port to the same network as the Velocity

Gateway.

3 USB

Can be used to power the VCC when PoE

is unavailable. Requires 5V DC @ 250mA

(not supplied).

4 3.5mm Port

Connect the included VCC-IR3 into this

port.

5 3.5mm Connector

Connect the 3.5mm connector to the

3.5mm port of the VCC.

6 3 x IR Emitters

Connect the 3.5mm connector to the

3.5mm port

7 IR Bands

Colored bands provide a way to

dierentiate which emitter goes to which

control signal. White is control port 1, red

is control port 2, and blue is control port

8 Factory Reset Button

Press and hold this button to reset all

settings to the factory default.

Panel Description

The AT-VCC is set to DHCP by default. If the network does not support DHCP, it will

automatically set the AT-VCC to the static IP of 192.168.1.70 after 30 seconds.

VHelp and webGUI

Velocity will nd the VCC when scan network is used, but if the VCC needs to be set up o site

rst, the software VHelp can be used.

1 Connect the IR three emitter cable into the 3.5mm port on the unit.

2 Connect the AT-VCC to a network switch (PoE is best if a PoE switch is not available, a

power injector or mini USB to USB cable may be used).

3 Download VHelp from the resource tab of https://atlona.com/product/AT-VCC-IR3-KIT.

4 Unzip the le to the local PC

5 Double-click the VHelp executable to open the program. Vhelp will start discovery as soon

as the program is opened.

Produktspecifikationer

Varumärke:	Atlona
Kategori:	Processor
Modell:	AT-VCC-IR3-KIT
Maximal upplösning:	- pixlar
Certifiering:	FCC, C-tick, RoHS
Modell:	Repeater för AV-utrustning
RJ-45 ingångsportar:	1
IR-sändare ingår:	Ja
Produktens färg:	Svart
Strömförsörjning via Ethernet (PoE) stöd:	Ja
Anslutningsteknologi:	Kabel & Trådlös
Strömkälla av typen:	USB
Kommunikationsstandarder:	IEEE 802.3af
