Atlona AT-VGA300CV Bruksanvisning

Atlona Splitter AT-VGA300CV

Läs gratis den bruksanvisning för Atlona AT-VGA300CV (9 sidor) i kategorin Splitter. Guiden har ansetts hjälpsam av 17 personer och har ett genomsnittsbetyg på 4.5 stjärnor baserat på 9 recensioner. Har du en fråga om Atlona AT-VGA300CV eller vill du ställa frågor till andra användare av produkten? Ställ en fråga

Ladda ner PDF

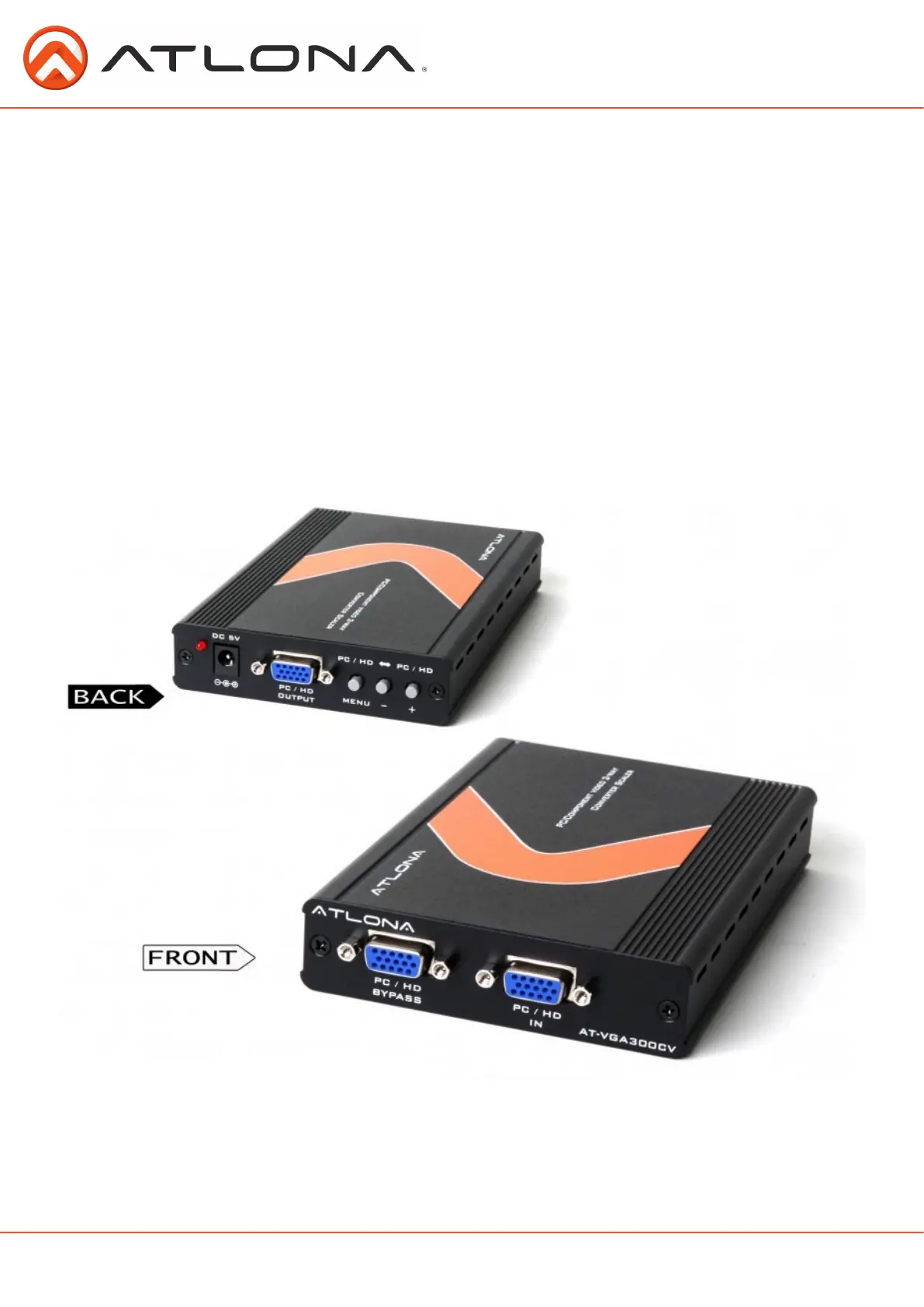

Sida 1/9

AtlonA

1. Introduction .................................................. 1

2. Package Includes .................................................. 1

3. Features .................................................. 1

4. Specication .................................................. 1

5. Panel Descriptions .................................................. 2

5.1 Front Panel .................................................. 2

5.2 Rear Panel .................................................. 2

6. OSD Operation .................................................. 3

7. Connection Diagram .................................................. 3

7.1. PC to Component Video .................................................. 3

7.2. Component video to PC .................................................. 4

8. Support Resolution .................................................. 4

9. Resetting the Unit .................................................. 4

10. Safety Information .................................................. 5

11. Warranty .................................................. 6

12. Atlona Product Registration .................................................. 7

The Atlona AT-VGA300CV is a very advanced scaler box, designed to convert any PC/Laptop input to

component video or Component video input to VGA output. The Atlona scaler is capable of accepting a

wide-range of PC or HDTV resolutions up to WUXGA/1080P. This scaler/converter has a comprehensive

on-screen menu which allows user to select from a variety of resolutions, picture adjustments ets.

• 1x AT-VGA300CV

• 1x 5v Universal Power Supply

• 1x 3ft VGA to Component Breakout Cable

• 1x User Manual

• Scales any PC or HDTV resolutions to PC or HDTV resolution up to WUXGA or 1080p

• Provides output picture adjustment on contrast, brightness, hue, saturation, sharpness, rgb (color

tone) level and aspect ratio size.

• Has a loop-out for connecting to a local monitor.

• Supports high resolution output:

PC: VGA, SVGA, XGA, SXGA, UXGA, WXGA, WSXGA, WUXGA

SD/HD: 480i, 576i, 480p, 576p, 720p, 1080i and 1080p.

• Converts PC (VGA) signal from PC or Laptop to Component Video

• Converts Component Video signals from DVD’s, Video Games ets. to VGA inputs on Computer

monitors, Projectors, Plasma Screens

Input ports 1 x HD15 (Could be used for PC or Component Video)

Output ports 1 x HD15 (Could be used for PC or Component Video)

Loop-out port 1 x HD15 (Could be used for PC or Component Video)

Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL certied)

Dimensions (mm) 157(d) x 102(w) x 25(h)

Weight(g) 332

Chassis Material Aluminum

Silk Skin Color Black

Operating Temperature Operating from 0°C ~ 48°C
