Sida 1/4
ATOLL ELECTRONIQUE
OWNER’S MANUAL ~ PHONO PREAMPLIFIER PH200
ATOLL ELECTRONIQUEPage 5Page 4

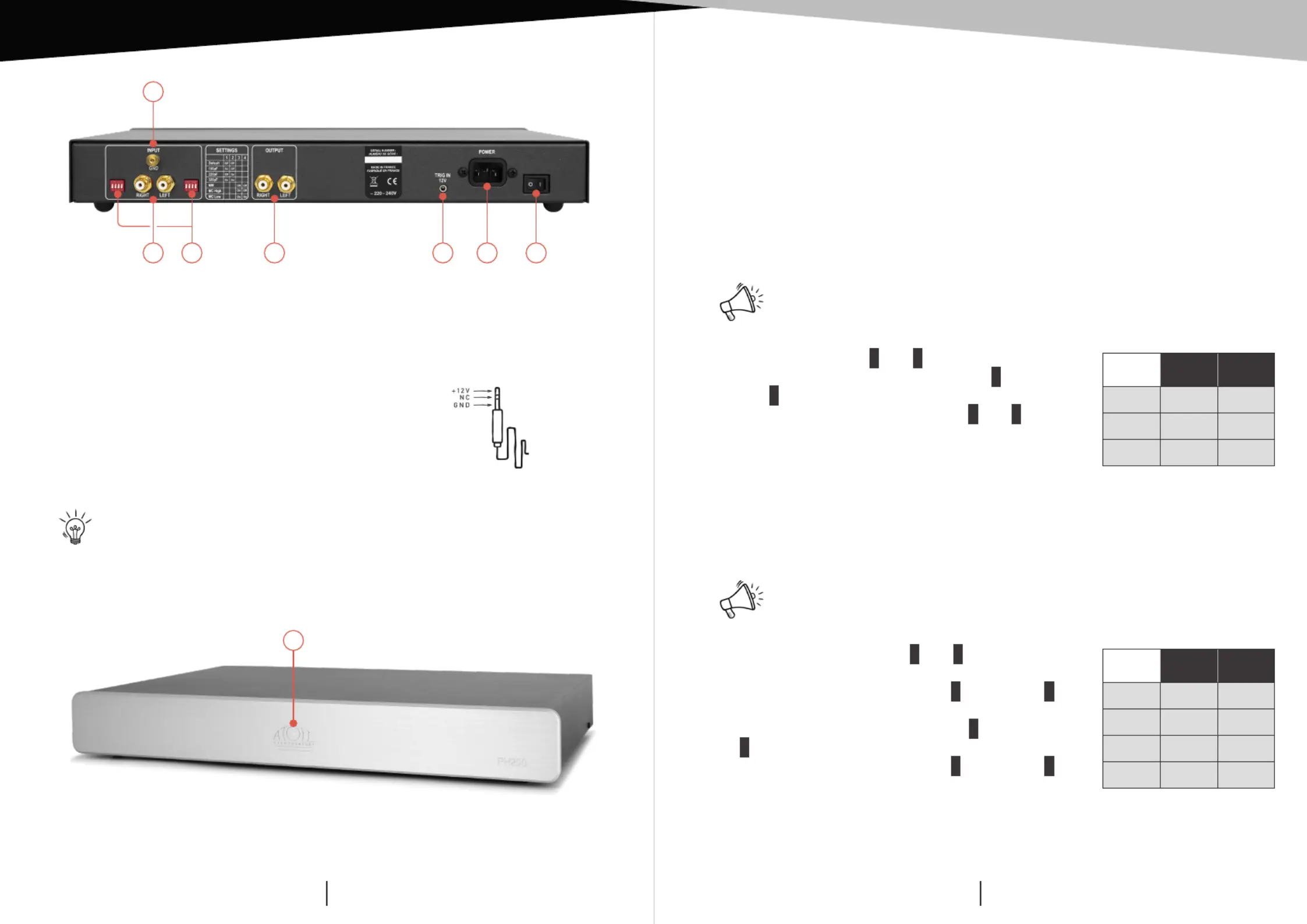

CONNECTING
8) ON/SLEEP led indicator.
DETAILS OF FUNCTIONS
1
5 6 7
8
(1)
Trigger input: this input allows you to control the power
ON/SLEEP of your PH200 simultaneously with any device
equipped with a compatible Trigger output. In order for the
system to work, the button on your PH200 must ON/SLEEP
remain in the position (0). If the switch is in the (I) SLEEP ON
position, it will work but not the Trigger function.
The Trigger connection must be made with a Ø 3,5 mm Male/Male stereo
jack cable.
Jack cable
Ø 3,5 mm
2 3 4
The PH200 phono module allows you different configurable configurations. They
can be carried out directly at the rear of the module via the 2 4-point switch blocks,
one for the left channel and the other for the right channel (you can also refer to the
screen-printed diagrams on the rear side). Make sure that the 2 switch blocks are in
the same position.
1) MM – MC setting: Depending on the cartridge of your phono turntable, you can
select the MM or MC input.
2) Choice of input capacitor: This setting concerns both the MM and MC cells. It
allows you to adapt the musicality of your PH200 to your system.
• For an MM cell, set and to OFF.3 4
• For a high level MC cell (MCH), place to ON, 3
and to OFF.4
• For a MC Low Level (MCL) cell, set and to ON.3 4
• For no input capacitor set and to OFF 1 2
(recommended by default).
• To select a 100 pF capacitor set to ON, and to 1 2
OFF.
• To select a 220 pF capacitor place to OFF, and 1
2 to ON.
• To select a 320 pF capacitor set to ON, and to 1 2
ON.
CONFIGURATIONS
3 4
MM OFF OFF
MC High ON OFF
MC Low ON ON
1 2
Default OFF OFF
100 pF ON OFF
220 pF OFF ON
320 pF ON ON
Caution: This adjustment must be made when the PH200 and the amplier
are turned off.
Caution: This adjustment must be made when the PH200 and the amplier
are turned off.
1) Ground.
2) Turntable signal input.
3) Settings blocks.
4) Module signal output.
5) Trigger input 12 V
(1)
.
6) General power plug.
7) ON/SLEEP switch (Attention: the
power-on led indicator takes a long
time to turn-off).
