MBK300S Installation Manual

COMPONENTS

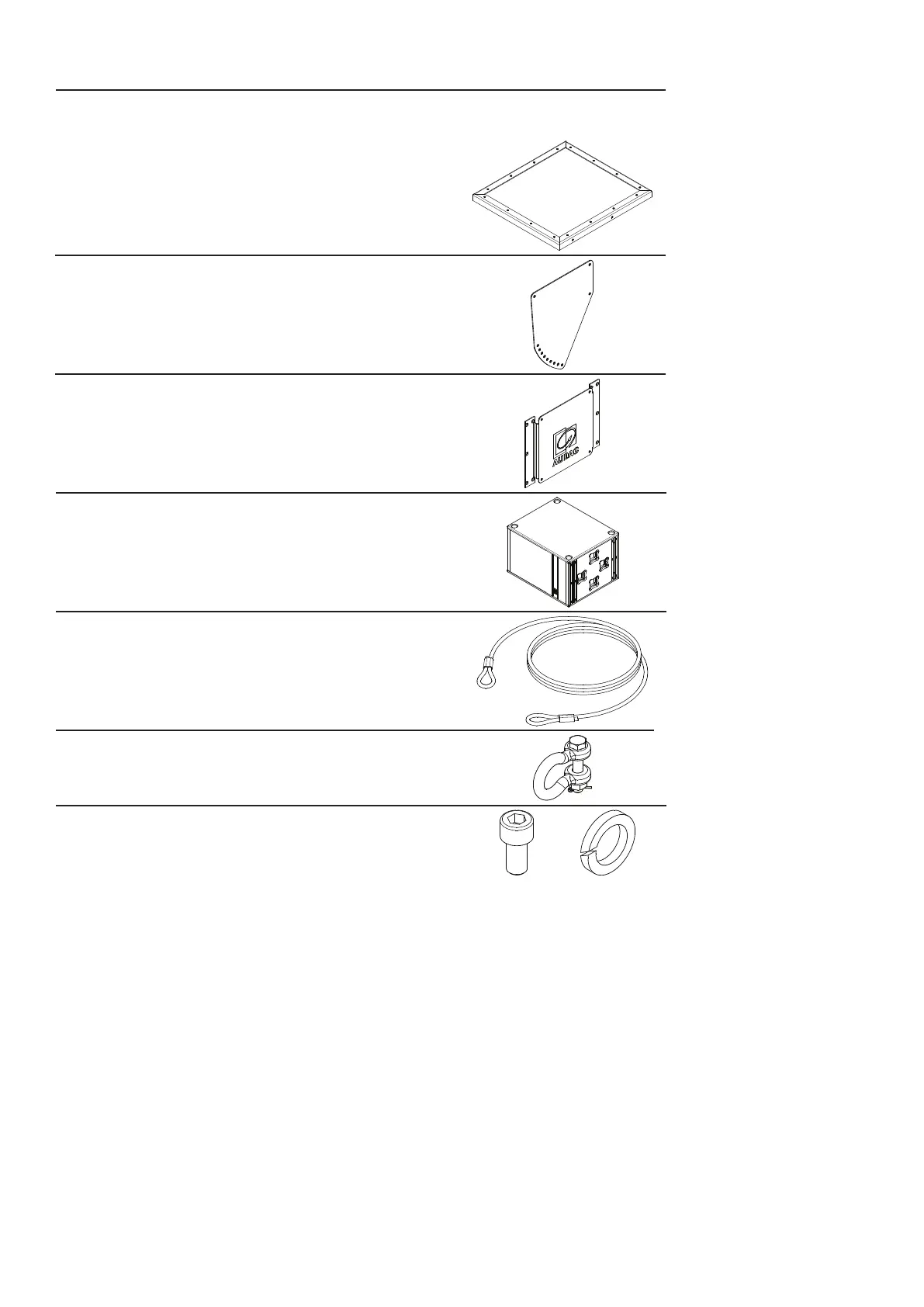

MBK310 FX Series y frame

MBK315 Side board set for FX3.15

MBK320 Connection board set 20°-60°

FX3.15 Loudspeaker cabinet

(not included with MBK300S) 1x

Bow shackle 1.5ton

(not included with MBK300S, to be sourced locally because

of local legislation)

Steel safety wire Ø 8 mm - 3250 mm

(not included with MBK300S, to be sourced locally because

of local legislation)

ISO 4762 - M10 x 20 mm + DIN 7980 - M10 8x +

MBK300S Installation Manual

IMPORTANT SAFETY INSTRUCTIONS

READ FOLLOWING INSTRUCTIONS FOR YOUR OWN SAFETY

Read these instructions and keep them. Never throw them away

Heed all safety warnings

Follow all instructions

Personnel qualication

Installation and set-up should only be carried out by qualied personnel that are familiar

with rigging techniques and safety recommendations that are outlined in this manual.

System parts and rigging instruction

All system components must be inspected before use, in order to detect any possible

defects. Any part showing any sign of defect must immediately be put aside and with-

drawn from use to be inspected by qualied service personnel.

Additional rigging equipment

Only use rigging and mounting accessories which are specied by the manufacturer of

this mounting bracket. It is the users responsibility to ensure that the working load limit

of additional accessories is greater than the total weight of the loudspeaker assembly.

Suspension points

It is the users responsibility to ensure that the suspension points can support the total

weight of the loudspeaker assembly.

Local regulations

Some countries require higher safety factors and rigging approvals. Always follow the

local regulations, even if otherwise specied in this instruction manual. It is the users

responsibility to guarantee that all mountings and connections are made in accordance

with all applicable local regulations.

Flying a loudspeaker assembly

Always ensure that nobody is standing underneath the loudspeaker assembly when it is

being raised. Never leave the system unattended during the installation process.

Dynamic load

When a loudspeaker assembly is deployed in an open air environment, wind e󰀨ects

should be taken into account. Wind can produce dynamic stress to the bracket compo-

nents and suspension points.

Periodic inspection

If all the system components are inspected and approved before use and installed as

described in this manual, they will remain fully operational over the systems lifetime.

However, an annual system inspection of the system and especially the suspension

points shall be performed by qualied personnel to check for any defects caused by

external inuences.

CE DECLARATION OF CONFORMITY

This product conforms to all the essential requirements and

further relevant specications described in following directives:

2006/42/EC Machinery directive

MBK300S Installation Manual

PROCEDURE

1Remove the U-proles from FX3.15 cabinet at both sides. Keep the bolts nearby because you will need them in

step 2.

2Mount the FX3.15 side plates to the FX3.15 cabinet. You can use the bolts that were removed in step 1.
