U P GR A D E A C C E S S O RY
PRECISE AND TACTILE DUAL-KNOB REMOTE LEVEL CONTROL
REMOTE CAN BE FLUSH-MOUNTED FOR CUSTOM INSTALLATIONS
REMOTE LEVEL CONTROL
Add volume control to any system
The ACR-4 is a dual-knob remote level control designed to work with specific AudioControl processors. The ACR-4 can be surface or
custom-mounted to add discrete level and function control to your audio system. Installation is simple and no power is required.
REMOTE LEVEL CONTROL
8 050038 64723
22410 70th Ave West, Mountlake Terrace, WA 98043 USA
Phone 425-775-8461
www.audiocontrol.com ©2022 AudioControl. All rights reserved. P/N 912-081-0 Rev A
Placement And Mounting of the ACR-4
The ACR-4 may be mounted under a dash or console using its own
bracket or through custom mounting holes in the dash/console. It
should be within reach of the driver and in a spot where the LED is
plainly visible.
Bracket Installation
ACR-4 mounts with four screws, which attach to the underside of a
dashboard/console. Slide under the dash or console and place
the ACR-4 in its mounting position, mark the mounting
holes, drill pilot holes, and secure with screws.
Custom Installation
For that custom, finished look, the ACR-4 can be flush
mounted directly on the dash/console panel (or any-

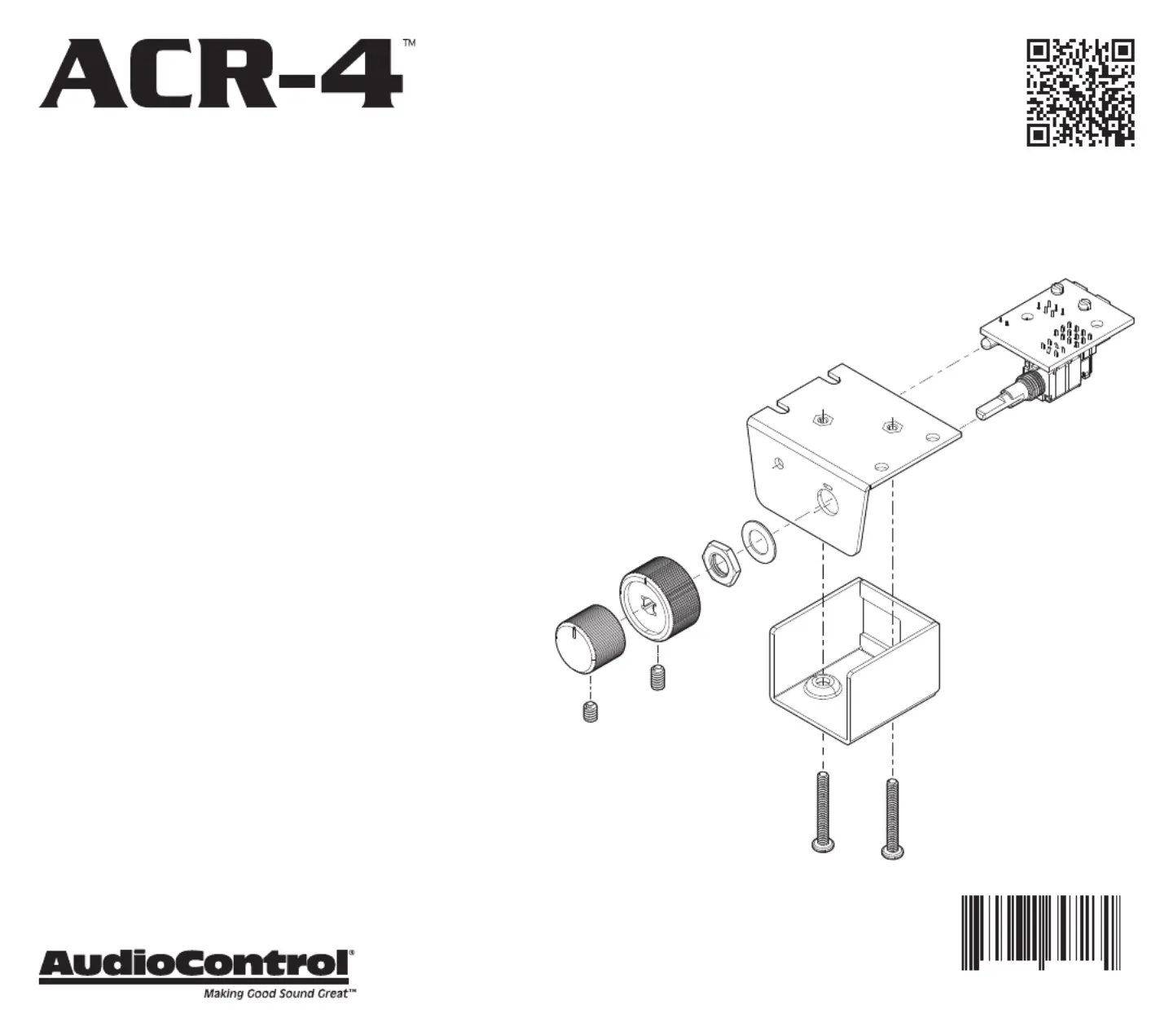

where else). Referencing the drawing right, disassem-
ble the ACR-4. Drill a 9/32” (7 mm) hole in the panel for
the control along with a 3/32” (2.3 mm) hole for the lock
tab and a 1/8” (3 mm) hole for the LED. Reassemble the
ACR-4 components on the dashboard or console.
What’s Included?
ACR-4 Remote Level Control, 20’ Phone Cable (RJ-11)
Scan for
Compatible
Products
