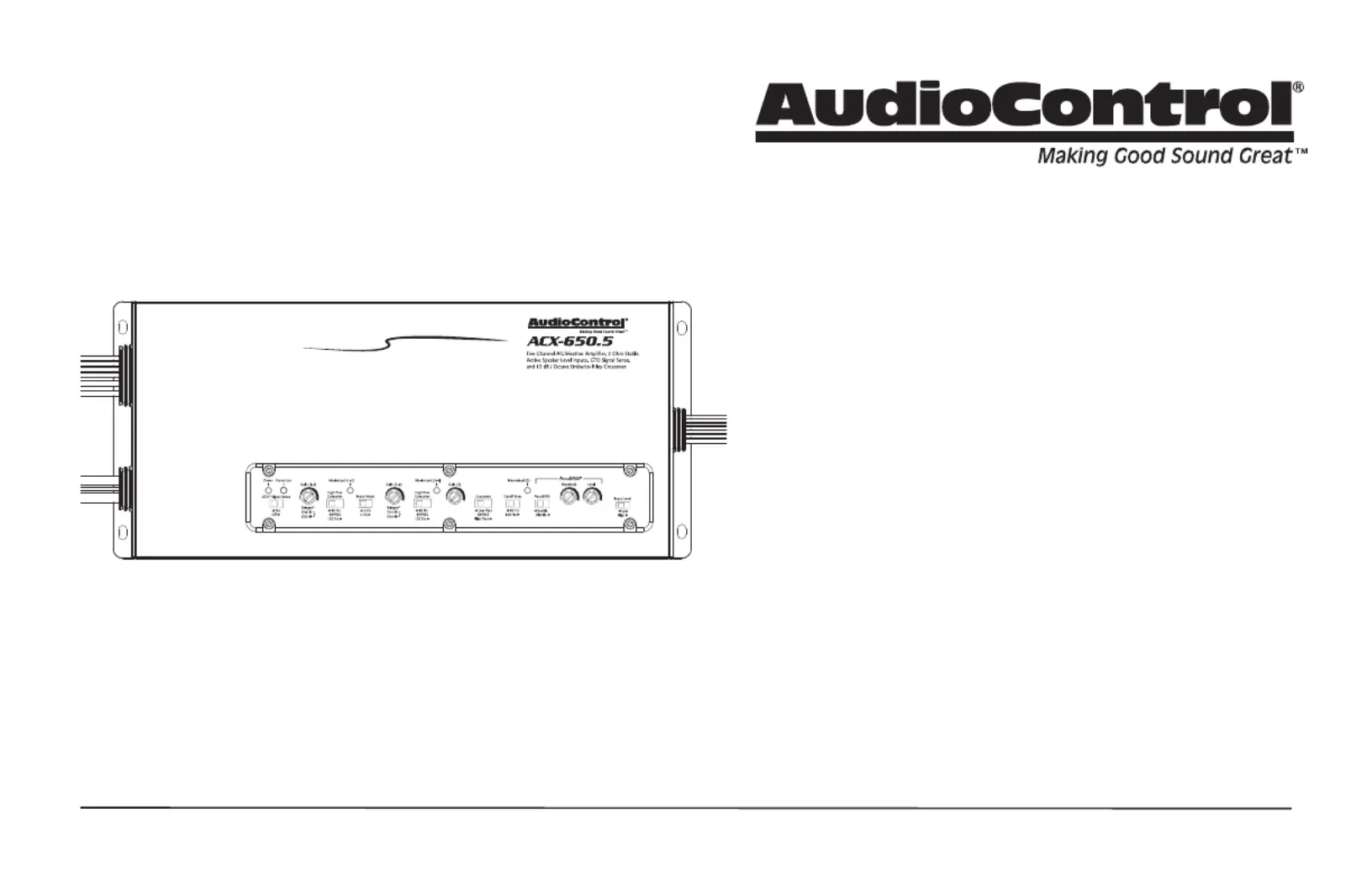

COMPACT HIGH POWER ALL-WEATHER 5-CHANNEL AMPLIFIER
Features
• Compact High Power 5-Channel Amplier
• High Current Design
• 4 x 50 Watts @ 4 Ohms, 1 x 200 Watts @ 4 Ohms
• 4 x 75 Watts @ 2 Ohms, 1 x 350 Watts @ 2 Ohms
• 2 x 150 Watts @ 4 Ohms, Bridged Mono
• 12 dB/Octave Linkwitz-Riley Alignment Crossover
• GTO™ Signal Sense (Great Turn On)
• 6 Speaker-level/ Line-Level RCA Inputs
• All-weather IPX6 rated!
• Filled with home-grown audio goodness
ACX-650.5
Quick Start Guide
2
ACX-650.5
Quick Start Guide
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as muers, silencers, exhaust
pipes, or other apparatus (including ampliers) that produce heat.
9. WARNING: Improper installation may lead to permanent injury or death.
Installation of the apparatus must be done with great care by qualied
personnel, to prevent damage to fuel lines, power and other electrical
wiring, hydraulic brake lines, and other systems, that might compromise
vehicle safety.
10. Provide +12V and Ground wiring of sucient size to ensure adequate
current to the amplier. For the ACX-650.5 this means 8 gauge wire or
thicker.
11. Use rubber grommets to protect wiring whenever passing wires through
metal openings or bulkheads.
12. Only use attachments/accessories specied by the manufacturer.
13. Refer all servicing to qualied service personnel. Servicing is required
when the apparatus has been damaged in any way, such as the power
input terminals are damaged or objects have fallen into the apparatus,
does not operate normally, or has been dropped.
14. Fuses shall be replaced only with the correct type and fuse value, and
only when the apparatus is powered o.
15. Exposure to high sound pressure levels may lead to permanent hearing
loss. Take every precaution to protect your hearing.

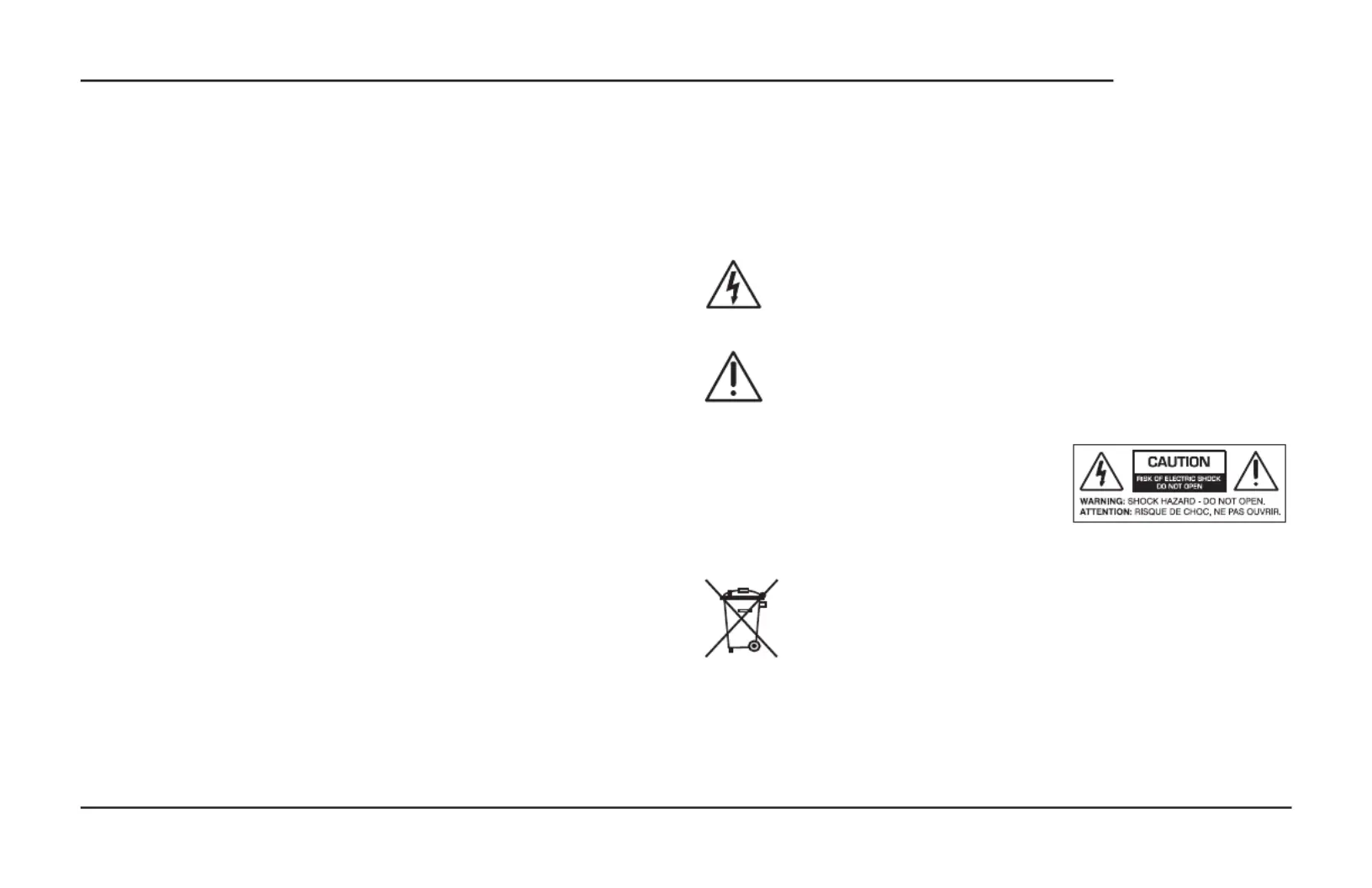

The lightning ash with arrowhead symbol within an equilateral
triangle is intended to alert the user to the presence of uninsulated
“dangerous voltage” within the product’s enclosure, that may be of
sucient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to
alert the user of the presence of important operating and mainte-
nance (servicing) instructions in the literature accompanying the
appliance.
Caution: to reduce the risk of electric shock, do
not disassemble the apparatus, other than to
remove the top panel to access the controls.
There are no user-serviceable parts inside.
Refer servicing to qualied personnel.
Recycling notice: If the time comes and this apparatus has fullled
its destiny, do not throw it out into the trash. It has to be carefully
recycled for the good of mankind, by a facility specially equipped
for the safe recycling of electronic apparatii. Please contact your
local or state recycling leaders for assistance in locating a suitable
nearby recycling facility. Or, contact us and we might be able to
repair it for you.
Important Safety Instructions
3
1. Speaker Outputs –
In Stereo operation, connect one loudspeaker to each channel as
shown. The minimum impedance is 2 Ohms per channel.
, connect one loudspeaker to the In Bridged Mono operation
outer 2 wires - White(+) and Grey/Black(-) for output 1/2, and
Green(+) and Purple/Black(-) for output 3/4. The mono loudspeak-
er will be powered by each channel, and both input channels
must be fed a signal. The minimum impedance is 4 Ohms.
2. Power Input Terminal +12V & Ground – Connect these wires
to the +12V and Negative binding posts of the vehicle battery
via one of two included harness options. You may use either the
included water resistant harness, or the included harness kit to
terminate your own custom-length water-resistant harness. Use
quality insulated wiring of the recommended wire gauge, such as
wire gauge 8 or thicker.
1 2 3
Connections & Control Panel Features
