Sida 1/12

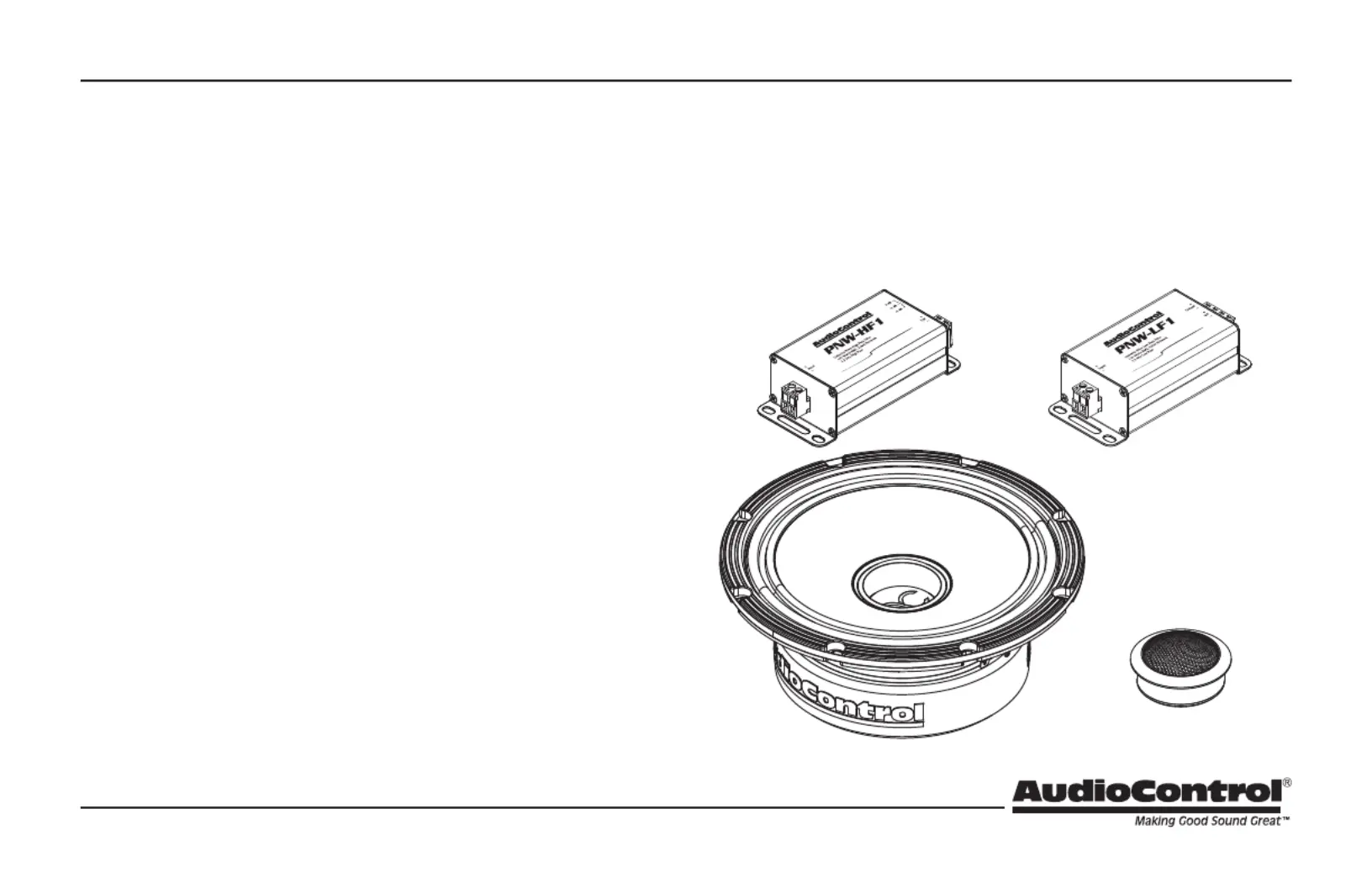

User Guide
HIGH-FIDELITY COMPONENT SPEAKERS
PNW-65CS2
FEATURES
• Edge enhanced steel frame for added structural strength
• Black anodized voice coil former for superior heat dissipation
• Linear double roll surround for precision cone movement
• Complex FEA designed high eciency motor
• Rigid poly mica coated cone for optimized sound reproduction
• Rear dampened hybrid silk dome tweeter for extended frequency response
• High quality mounting hardware included
• Umbrella not included

2
User Guide
PNW-65CS2
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not submerge this apparatus in water.
6. Clean only with a dry cloth.
7. WARNING: The speakers must be properly secured in the vehicle.
Improper installation may lead to permanent injury or death. Installation
of the speakers must be done with great care by qualied personnel, to
prevent damage to fuel lines, power and other electrical wiring, hydraulic
brake lines, and other systems, that might compromise vehicle safety.
8. Use speaker wire of sucient size to ensure adequate current to the speak-
er. For PNW Series Speakers, this means 14-18 gauge speaker wire.
9. Refer all servicing to qualied service personnel. Servicing is required
when the apparatus has been damaged in any way, such as the power
input terminals are damaged, objects have fallen into the apparatus,
does not operate normally, or has been dropped.
10. Not tested for use in Bigfoot's Cave.
11. Exposure to high sound pressure levels may lead to permanent hearing
loss. Take every precaution to protect your hearing.
The exclamation point within an equilateral triangle is intended to alert the
user of the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the
appliance.
Recycling notice: If the time comes and this apparatus has fullled its destiny,
do not throw it out into the trash. It has to be carefully recycled
for the good of mankind, by a facility specially equipped for the
safe recycling of electronic apparatii. Please contact your local or
state recycling leaders for assistance in locating a suitable nearby
recycling facility. Or, contact us and we might be able to repair it
for you.

3
Speaker Talk
Right on! You got yourself some shiny new AudioControl speakers. After
you are done admiring the quality workmanship and attention to detail,
you need to get these bad-boys installed. If you did not attend auto-shop
in school or are having trouble plugging in power tools, your best bet is to
seek out a qualied AudioControl dealer. They have the skills, experience,
and specialized tools to get your vehicle sounding like a live concert and they
usually smell alright too.
Crossover
The second-order Linkwitz-Riley lter is a type of crossover network that has
several benets compared to other types of crossover networks.
Firstly, the second-order Linkwitz-Riley lter has a steep slope of -12dB per
octave, which ensures that there is a sharp cuto between the frequencies
that are directed to the woofer and the tweeter. This steep slope helps to
minimize overlap between the frequencies, resulting in better sound quality
and improved power handling capability of the speakers.
Secondly, the second-order Linkwitz-Riley lter maintains a at frequency
response in the crossover region, which ensures that there are no peaks or
dips in the frequency response that can result in uneven sound quality.
Lastly, the second-order Linkwitz-Riley lter has a phase response that is
linear across the crossover region. This means that the phase shift between
the woofer and tweeter is constant, resulting in improved imaging and
soundstage.
Overall, the benets of the second-order Linkwitz-Riley lter include a
steep slope, at frequency response, and linear phase response, resulting in
improved sound quality, better power handling, and improved imaging and
soundstage compared to other types of crossover networks.
