Tweeters MUST have high pass lters!
Tweeters are designed only to play high frequencies and will be damaged if they are driven with too much power at low frequencies. A high pass lter is the device we use to
prevent this damage.
We have included a simple high pass lter with your Audiofrog tweeters. Depending on your system design, you may or may not need to install them.
1. If you are replacing the tweeters in your factory system and will continue to use the factory-supplied amplier (which may be a separate amplier or it may be the amplier
included in the radio), your factory tweeters will probably have a similar device mounted to its magnet or housing. When you install your new Audiofrog tweeter, be sure to install

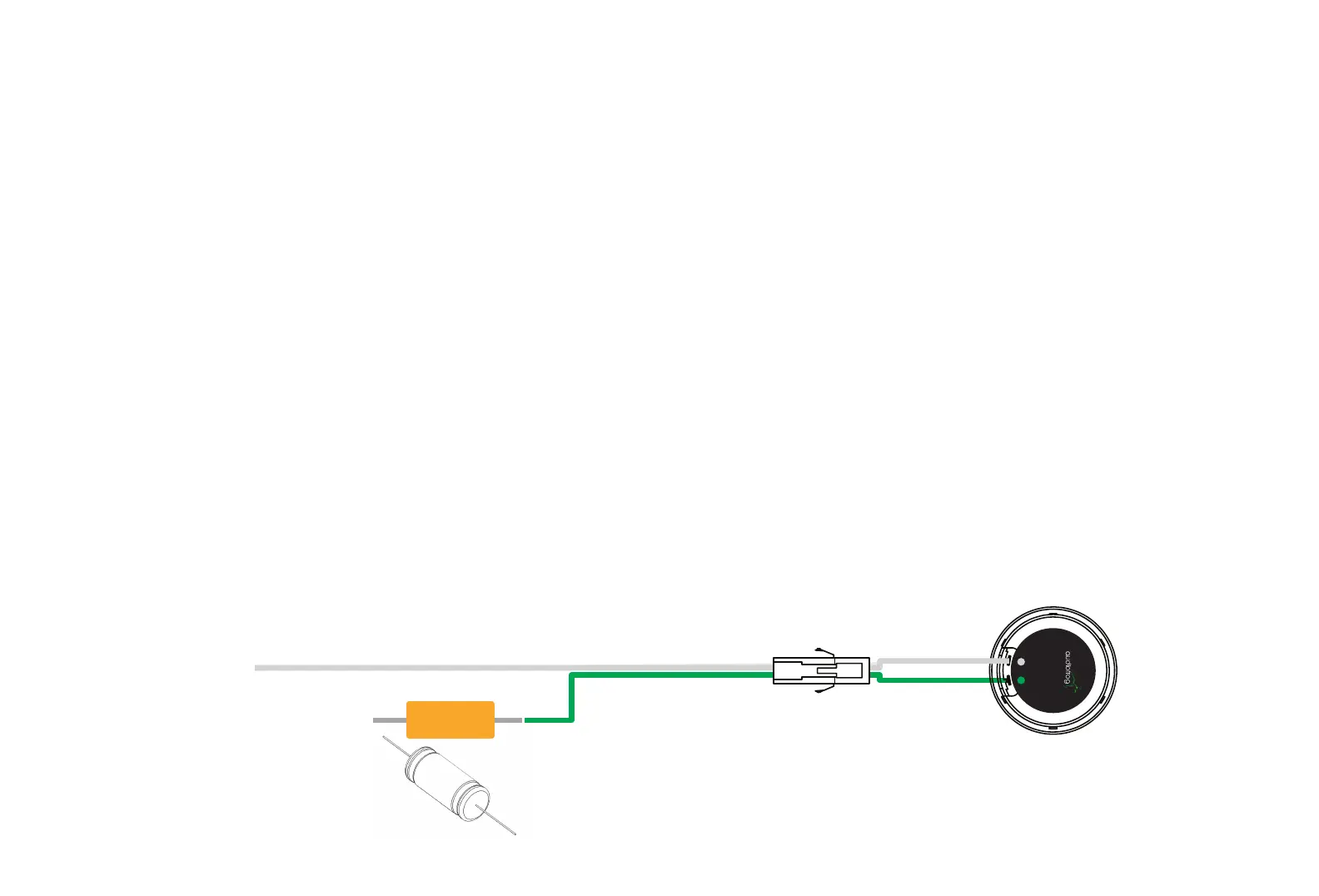

the included capacitor. See the diagram below.
2. If you are installing an amplier and a separate passive crossover (i.e. GS610C or GS410C), then you do not need to install the lter we have included with your tweeters.
3. If you are installing an amplier that includes an active crossover for your tweeter (i.e. a 4-channel amplier that will drive your midrange speakers and your tweeters each on a
single channel) set the amplier’s crossover according to the included instructions for your tweeter. If you will be using a 12dB/octave crossover instead of a 24dB/octave
crossover, raise the crossover frequency by 1kHz above the 24dB/oct recommendation.
4. If you are installing an amplier and a digital signal processor (DSP) and the DSP will provide the crossover, set the slope to 24dB/oct and the frequency according to the
instructions included with your tweeter.
If #3 or #4 best describes your system design, consider using a tweeter protection circuit to prevent your tweeter from being damaged by erroneous settings or a failed
component. Consider a pair of Audiofrog TP50v2 tweeter protectors. These will protect your tweeter from too much power at low frequencies but will not adversely aect their
performance when used with an active crossover in an amplier or a DSP.
To Amplier -
To Amplier +

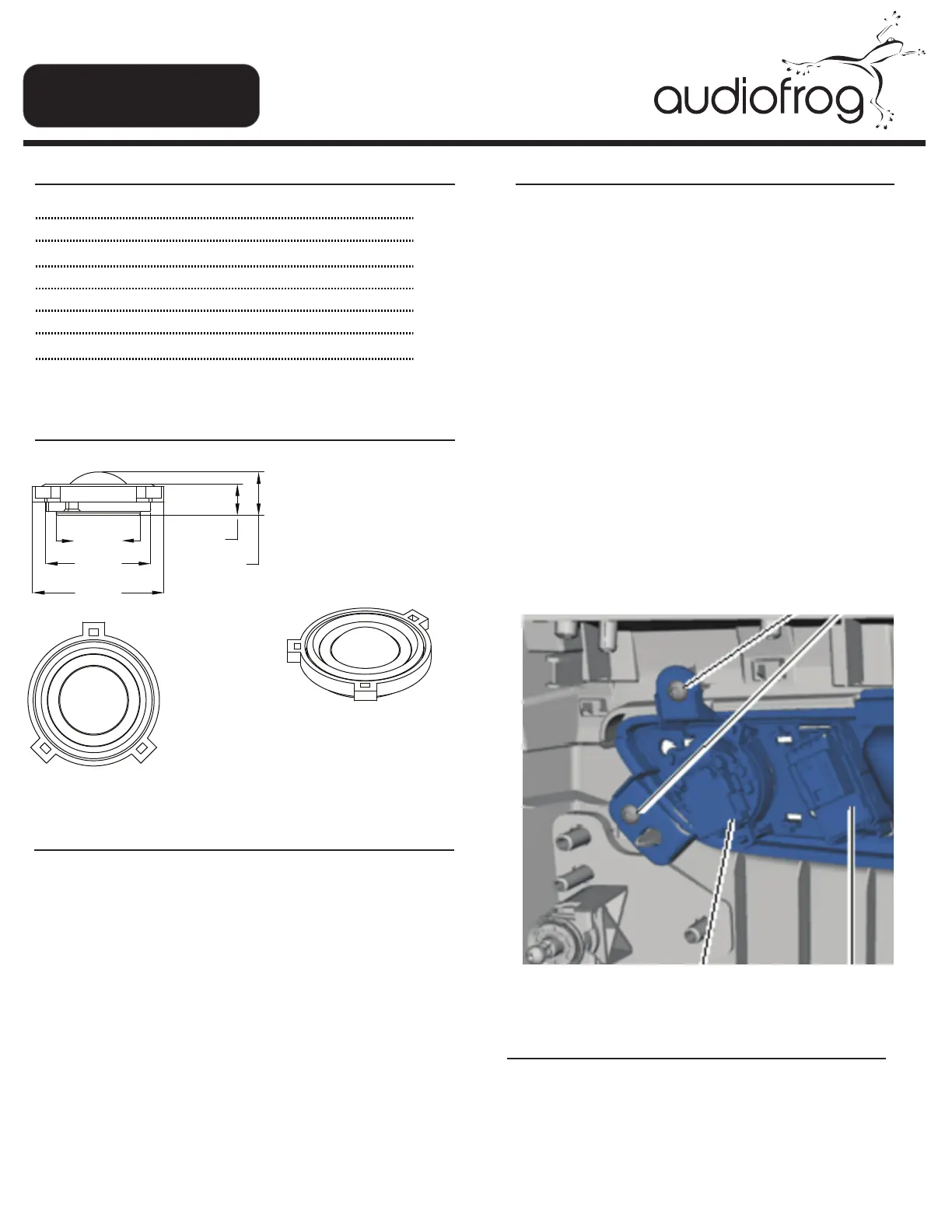

Installaon Steps and Precauons:
Nominal Impedance
Frequency Response (-3dB)
Power Handling (RMS)*
Power Handling (Peak)*
Recommended Power (RMS)*
Recommended High Pass Filter
Free Air Resonance (Fs)
*With Recommended High Pass FIlter
Specificaons and Recommendaons:
Dimensions:
Fitment Informaon:
Limited Warranty (USA): Audiofrog GB Series products sold in the USA through authorized
Audiofrog dealers are warranted to the original purchaser against defects in materials and
workmanship for one year aer the date of original purchase. They are warranted for an addional
two years if they are installed by an authorized Audiofrog dealer. Please save your receipt. A valid
receipt from an authorized Audiofrog dealer is required for warranty service. If you purchased your
GB Series products outside the USA, please consult your local distributor for warranty terms and
condions.
Audiofrog and the Audiofrog logo are trademarks of Audiofrog, Inc, registered in the United States
and/or other countries. Audiofrog et le logo sant des marques est une marque commerciale de
Audiofrog, Inc déposée aux Étas-Unis et/ou dans d’autres pays.
Audiofrog, Inc. 419 S. Mission Dr. San Gabriel, CA 91776 +1 (707) 600-FROG
www.audiofrog.com
GB10OE-0011
4Ω
1.8kHz - 24kHz
100W
300W
12W - 100W
2500Hz, 24dB/Oct
1500Hz
Removal of OE tweeter:
• Using a soldering iron, carefully melt the
three tabs holding the Volkswagen tweeter in
place while pulling the tweeter away from its
frame. Alternately, use a dremel tool or a
knife to shave away the melted plasc to free
the tweeter.
• All of the Volkswagen tweeters in this style
are secured this way regardless of different
models
Installaon of Audiofrog OE tweeter:
• Clip the Audiofrog tweeter into place on the
tabs, and secure with CA (super) glue.
Verified Fit:
• 2007-2021 Volkswagen Golf with tweeters in the sail
panel.
Unverified but May Fit:
• 2007-2021 Volkswagen Tiguan, Passat, and Arteons
aswell as other Volkswagen models with tweeters in
either A pillars, doors, or sail panels.
Please check your car’s tweeter locaon and housing
dimensions to confirm that the GB10OE-0011 will fit.
32.1 mm
40 mm
50 mm
16.6 mm
12.1 mm
