Sida 1/8
SPM4 (Stereo Passive Mixer 4Ch) (Stereo Passive Mixer 4Ch)SPM4
MANUALE D’USO USER’S MANUAL MANUALE D’USO USER’S MANUAL/ /
ACCESSORIES ACCESSORIES
Miscelatore stereofonico passivo (non alimentato) con 4 canali di ingresso e 2 canali di uscita studiato
per sistemi multivia attivi OEM dove ciascun altoparlante viene alimentato da uno specico canale
amplicato. SPM4 effettua la miscelazione attraverso 4 trasformatori audio appositamente studiati per
avere una bassissima distorsione e una elevata linearità.
SPM4 permette di miscelare i canali del midrange/woofer e del tweeter che provengono dall’amplicatore
e fornire un unico canale medio-alto. I canali Ch1(L/R) hanno due ingressi di cui uno invertente rispetto ai
canali Ch2 (L/R); frequentemente la miscelazione dà migliori risultati sfasando di 180° uno dei due canali.
SPM4 è particolarmente indicato per estendere il numero degli ingressi dei processori digitali o
non linearità dovute alla miscelazione dei canali ltrati preesistenti vengono debitamente compensate.
OEM multi-way systems where each speaker is powered by one specic amplied channel. SPM4 mixes
audio through 4 audio transformers specically developed to achieve very low distortion and highly linear
from the amplier and supply one single mid-high channel. The Ch1(L/R) channels feature two inputs,
results when one of the two channels undergoes a 180° dephasing. SPM4 is especially recommended
they feature a De-equalizer (De-Eq). In that case, any possible non-linear acoustic emissions due to the
mixing of the pre-existing ltered channels are duly compensated.
Max input power W (rms)
25
Max input power W (peak)
50
Output Gain dB
-3
T.H.D. (input power max)
% (100Hz)
% (1kHz)
% (10kHz)
0.5
0.05
0.05
Bandwidth Hz (-3dB)
15 ÷ 75k
Crosstalk dB (10kHz)
> 55
Input impedance
32
Out impedance kΩ
10
Phase inverter
Ch1 (left & right)
W x H x D
mm
in.
103,5 x 36,5 x 86,5
4.07 x 1.43 x 3.40
Weight (kg / lb.)
kg
lb.
0,24
0.53

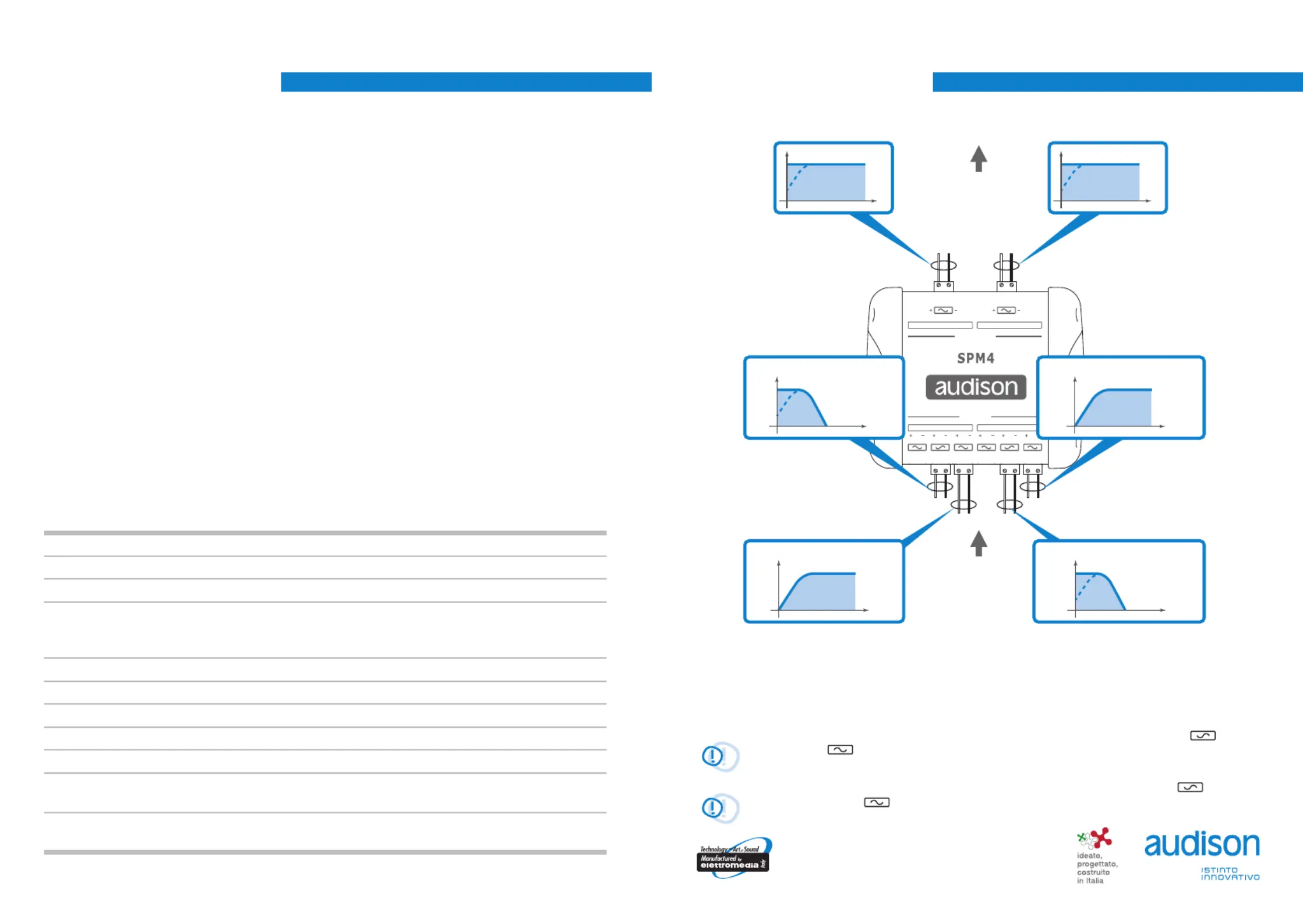

Descrizione Connessioni Connections/
Description
Technical Specications
*
*
TO AUDISON BIT
PROCESSOR’S
LO-LEVEL
INPUTS
INPUTS
FROM OEM
MULTICHANNEL
AMPLIFIER
Stereo Passive Mixer 4Ch
INPUT
OUTPUT
CH1
LEFT
CH1
invert. invert.
CH2 CH1 CH1 CH2
CH1+CH2
CH1+CH2
RIGHT
LEFT RIGHT
LEFT MIX OUTPUT RIGHT MIX OUTPUT
LEFT LO-PASS/BAND-PASS INPUT
f
RIGHT LO-PASS/BAND-PASS INPUT
f
LEFT HI-PASS INPUT
f
RIGHT HI-PASS INPUT
f
f f
*
ATTENZIONE: Si consiglia di provare ad utilizzare i canali Ch1(L/R) con ingresso invertente rispetto
ai canali Ch2 perchè nella maggior parte delle applicazioni si hanno migliori risultati.
*
WARNING: We suggest that you try using the Ch1(L/R) channels featuring inverting input compared
to the Ch2 channels , because with most applications better results are achieved.
