Sida 1/23

Table of Contents

1. SAFETY PRECAUTIONS AND WARNINGS ............................................ 1

2. USING THE TEST TOOL ........................................................................... 2

2.1 TOOL DESCRIPTION .................................................................................. 2

2.2 SPECIFICATIONS ....................................................................................... 3

2.3 ACCESSORIES INCLUDED ........................................................................... 3

2.4 GENERAL DESCRIPTION ............................................................................ 4

2.5 POWER ..................................................................................................... 4

2.6 QUICK SELF-TEST .................................................................................... 4

2.7 CIRCUIT BREAKER .................................................................................... 6

2.8 WORK MODE............................................................................................. 6

3. TEST APPLICATIONS ............................................................................... 9

3.1 VOLTAGE & POLARITY TESTING ............................................................... 9

3.2 CONTINUITY TESTING ............................................................................... 9

3.3 SIGNAL CIRCUIT TESTING ....................................................................... 11

3.4 ACTIVATING COMPONENTS IN YOUR HAND ............................................. 12

3.5 TESTING TRAILER LIGHTS AND CONNECTIONS ........................................ 13

3.6 ACTIVATING COMPONENTS IN THE VEHICLE ........................................... 14

3.7 ACTIVATING COMPONENTS W/GROUND ................................................... 15

3.8 CHECKING FOR BAD GROUND CONTACTS ................................................ 16

3.9 FOLLOWING & LOCATING SHORT CIRCUITS............................................ 17

3.10 RED/GREEN POLARITY LED ................................................................... 18

4. TEST TOOL SPECIFICATIONS.............................................................. 19

5. TEST TOOL KNOW-HOW ...................................................................... 20

6. WARRANTY AND SERVICE................................................................... 22

6.1 LIMITED ONE YEAR WARRANTY ............................................................. 22

6.2 SERVICE PROCEDURES ............................................................................ 22

1. Safety Precautions and Warnings

To prevent personal injury or damage to vehicles and/or the test

tool, read this instruction manual first and observe the following

safety precautions at a minimum whenever working on a vehicle:

 Always perform automotive testing in a safe environment.

 Wear safety eye protection that meets ANSI standards.

 Keep clothing, hair, hands, tools, test equipment, etc. away from

all moving or hot engine parts.

 Operate the vehicle in a well ventilated work area: Exhaust gases

are poisonous.

 Put blocks in front of the drive wheels and never leave the vehicle

unattended while running tests.

 Use extreme caution when working around the ignition coil,

distributor cap, ignition wires and spark plugs. These

components create hazardous voltages when the engine is

running.

 Put the transmission in PARK (for automatic transmission) or

NEUTRAL (for manual transmission) and make sure the parking

brake is engaged.

 Keep a fire extinguisher suitable for gasoline/chemical/ electrical

fires nearby.

 Don’t connect or disconnect any test equipment while the

ignition is on or the engine is running.

 Keep the tool dry, clean, free from oil/water or grease. Use a mild

detergent on a clean cloth to clean the outside of the test tool,

when necessary.

 When the power switch in the tool is depressed battery

current/voltage is conducted directly to the tip which may cause

sparks when contacting ground or certain circuits. Therefore the

tool should NOT be used around flammables such as gasoline or

its vapors. The spark of an energized tool could ignite these

vapors. Use the same caution as you would when using an arc

welder.

2. Using the Test Tool

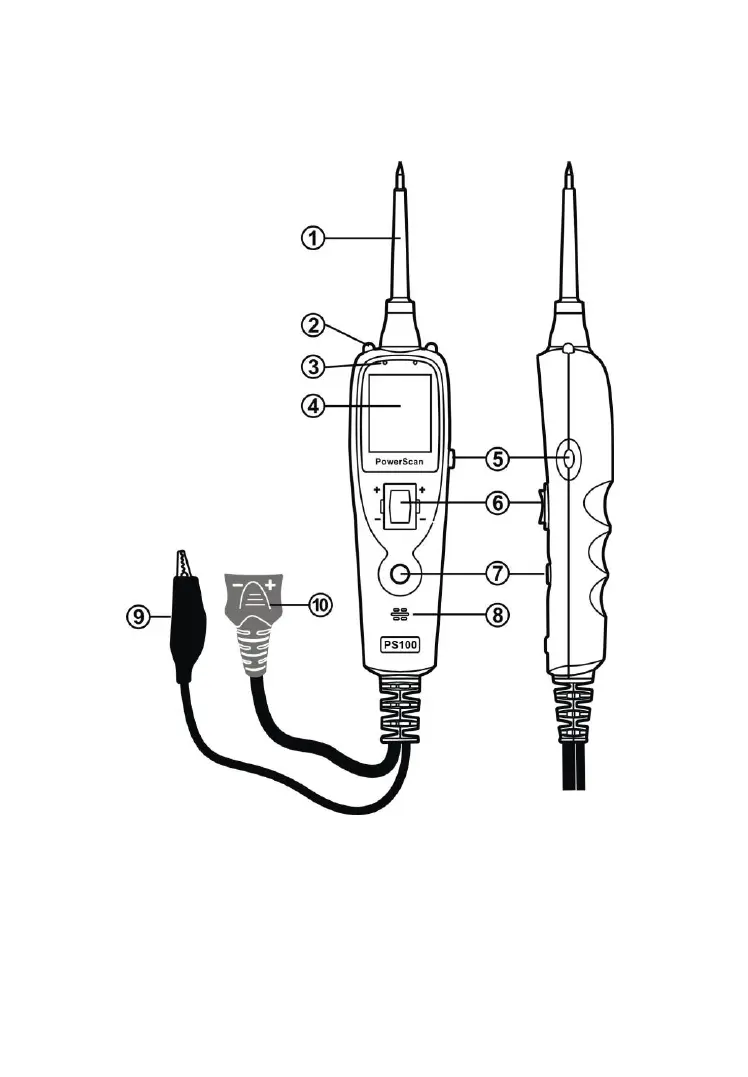

2.1 Tool Description

① Probe Tip – Contacts the circuit or component to be tested.

② Head Lights – Illuminates dark work areas or work areas at

night. .

③ Red/Green Polarity Indicator – Identifies positive, negative or

open circuits. The RED Indicator lights when the Probe Tip is
