129.523 User Manual UK
DM212
DUAL MONITOR DESKTOP MOUNT WITH EXTENSION ARMS
Item ref: 129.523UK
User Manual
This dual armed bracket is suitable for most 10" to 30" LED/LCD screens and features adjustable height, tilt and swivel,
allowing the screen to be easily positioned and free up valuable desk space making for a more comfortable viewing
experience.
• Suitable for LED/LCD screen sizes 10" - 30"
• VESA 75 and 100 hole patterns
• -85° to 15° tilt mechanism
• 180° pan from mounting plate
• 180° swivel from centre arm joint
• Desk fixing clamp with 100mm max. depth
adjustment
• Cable retainer
• Installation hardware included
Caution
Please read this manual thoroughly to avoid damage to property or personnel. If unsure of any part of this manual,
please refer to professional installer for help:
• This product contains small components that could pose a choking hazard if swallowed, please keep out of reach of
children.
• This product is designed for mounting on wall studs or concrete wall. Always ensure the mounting surface will be
capable of withstanding the combined weight of the TV bracket and TV, reinforcement may be required for aged or
weak walls.
• Safety gear such as gloves and safety goggles must be worn during the installation. A minimum of two people is
required throughout the installation, failure to do so may result in injury or damage.
• This product is design for indoor use only. The bracket must be inspected at least every two months for loose joints or
aged parts.
Contents
Please check all contents listed below are included inside the box. If anything is missing, please return to the retailer or
dealer.
For this installation you will also require a Philips (cross) screwdriver.
129.523 User Manual UK

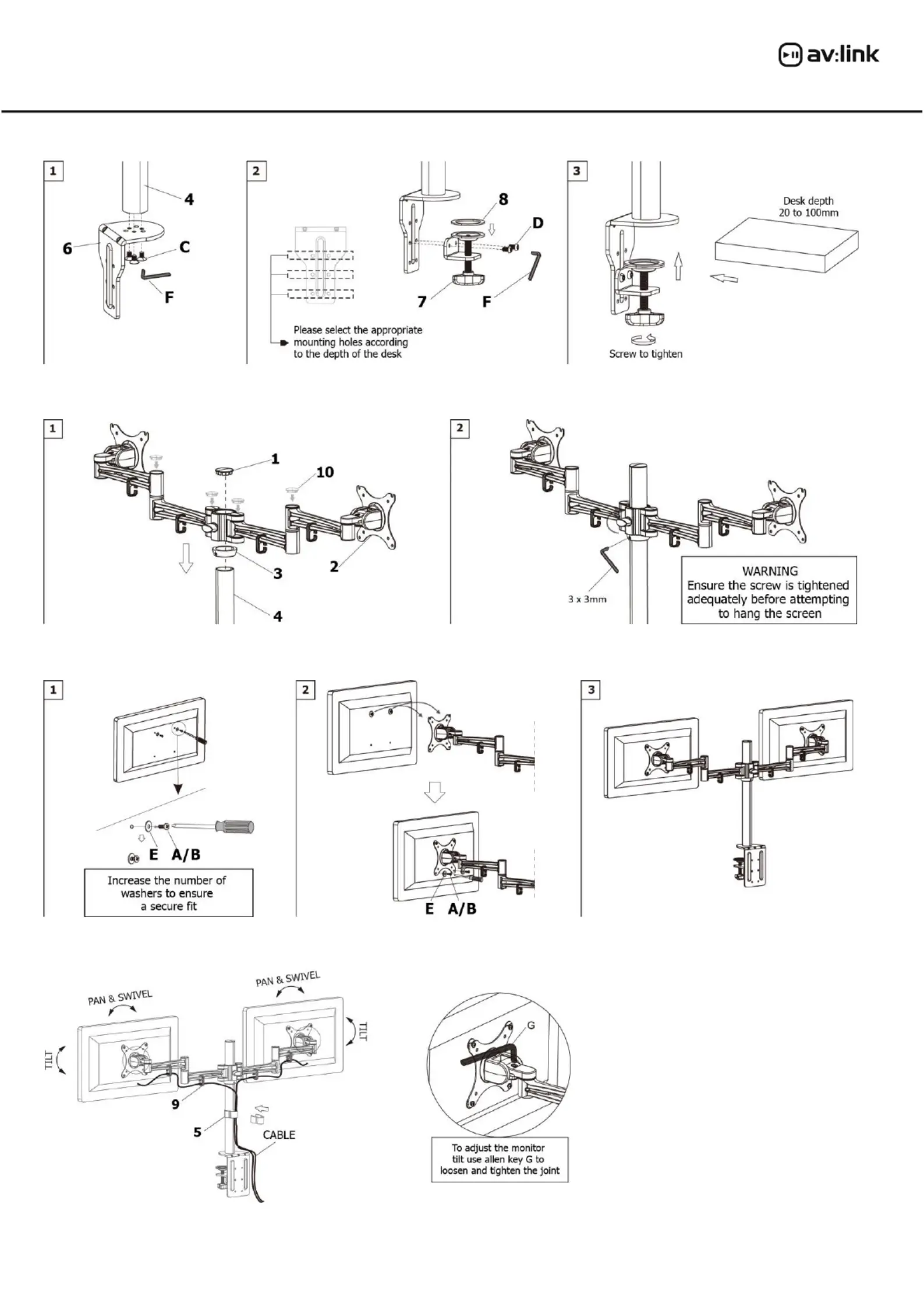

STEP 1 Assemble and fit the desk clamp –
STEP 2 Assemble and install the extension arms –
STEP 3 Attach mounting plates to the screens or monitors –
STEP 4 Adjust screens to preferred position –
Errors and omissions excepted.
Copyright© 9. AVSL Group Ltd. 201
