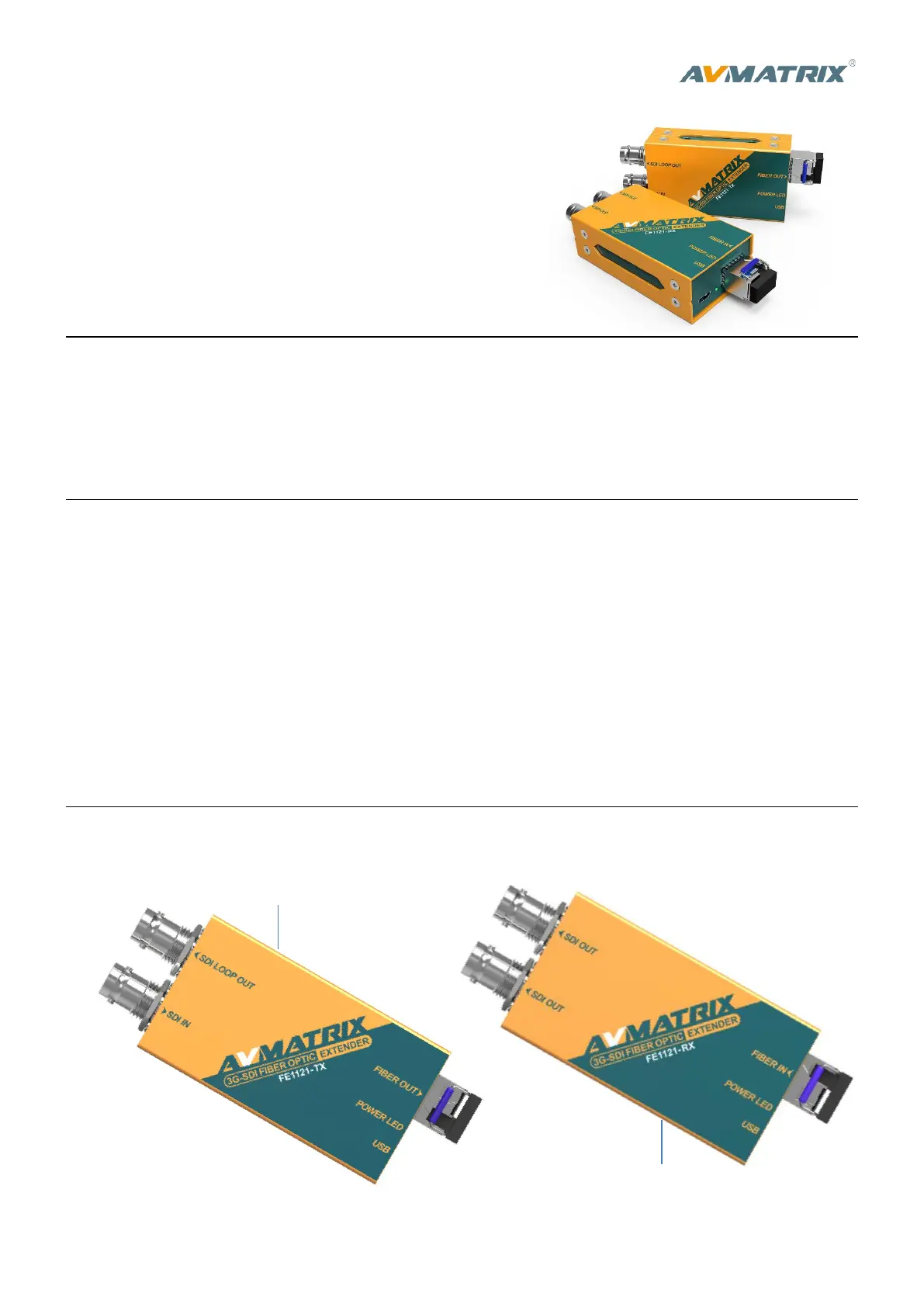

Technical Specifications
1
3G-SDI Fiber Optic Extender Kit
FE1121
The FE1121 3G-SDI Fiber Optic Extender is a transmitter/receiver kit supporting single-mode LC simplex fiber extensions
up to 20km. It is a miniature-style extension solution that supports all SDI formats resolution up to 1080p with audio
and metadata, also supports level A and level B. It features a local SDI loop out and dual SDI outputs and supports
3G/HD/SD SDI signals.
Connections
Transmitter
Receiver
Transmitter SDI Video Input
1×SD/HD/3G-SDI(75Ω BNC)
Transmitter SDI Loop Output
1×SD/HD/3G-SDI(75Ω BNC)
Transmitter Fiber Optical Output
SFP module with LC connector
Power LED Indicator
Power and signal status
Receiver Fiber Optical Input
SFP module with LC connector
Receiver SDI Video Output
2×SD/HD/3G-SDI(75Ω BNC)
Micro USB
Power and software update
Technical Specifications
2
Standards
Power
Power
Micro USB
Power Consumption
Transmitter: 1.5W, Receiver: 1.5W
Voltage Range
DC 3.3-5V
Physical Specifications
Dimension
71×41×23mm
Net Weight
200g+200g
Gross Weight
800g
FE1121-TX(Transmitter) FE1121-RX(Receiver)
Optical Fiber Module
SFP module: Hot-pluggable
Connector style: LC
Fiber type: Single-mode
Optical wavelength: 1310nm
Max. bandwidth: 3Gbps
Optical transmit power: -2.3dBm
Receiver sensitivity: -16dBm
Single-mode Max. Distance
20 km (12.5 miles) for 3G (1080P)
Optical Fiber Compliance
SMPTE 297M 2006
SDI Compliance
Level A & level B
SMPTE 259M, SMPTE 292M,
SMPTE 424M, SMPTE 296M,
SMPTE 274M, SMPTE 425M,
ITU-R BT.656, ITU-R BT.601
SDI Auto Switching
Automatically detects SD, HD
and 3G-SDI
SDI Video Rate
SD/HD/3G-SDI
SDI Color Space
YUV, RGB
SDI Equalization and Re-clocking
Yes, SDI Input and output maximize
performance up to 120m for 3G-SDI
SDI Audio
Supports 16-channel embedded
Technical Specifications
3
Environmental Specifications
Operating Temperature
0℃~60℃
Storage Temperature
-10℃~70℃
Relative Humidity
0%~90% non-condensing
What’s Included Mounting Diagram
FE1121-TX (3G-SDI Fiber Optic Extender Transmitter)
FE1121-RX (3G-SDI Fiber Optic Extender Receiver)
2pcs 5V Special Power Adapters
2pcs USB Cables
2pcs Mounting Brackets
Technical Specifications
Warranty
3 Year Limited Manufacturer's Warranty
Note: due to constant effort to improve products and product features, specifications may change without notice.
